| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, CE |
| Model Number: | TC-220X2200 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 8000-17000/SET |
| Packaging Details: | Steel and Wood Package |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20 Days |
| Application: | Mining Belt Conveyor, Roller, Idler, Heavy Duty Conveyor, Roller | Pipe Max Length: | 2600mm |
|---|---|---|---|
| Frequency: | 50Hz | Voltage: | 110-400V |
| Warranty: | 3 Year | Product Name: | 2600mm Mining Steel Conveyor Roller Pipe Boring Turning Machine 50Hz Dia 219mm |
| Color: | Blue Green, Red, Customized | Pipe Max Dia: | 219mm |
| High Light: | Conveyor Roller Making Machine,Dia 219mm Conveyor Roller Making Machine,Boring Turning Conveyor Roller Making Machine |
||

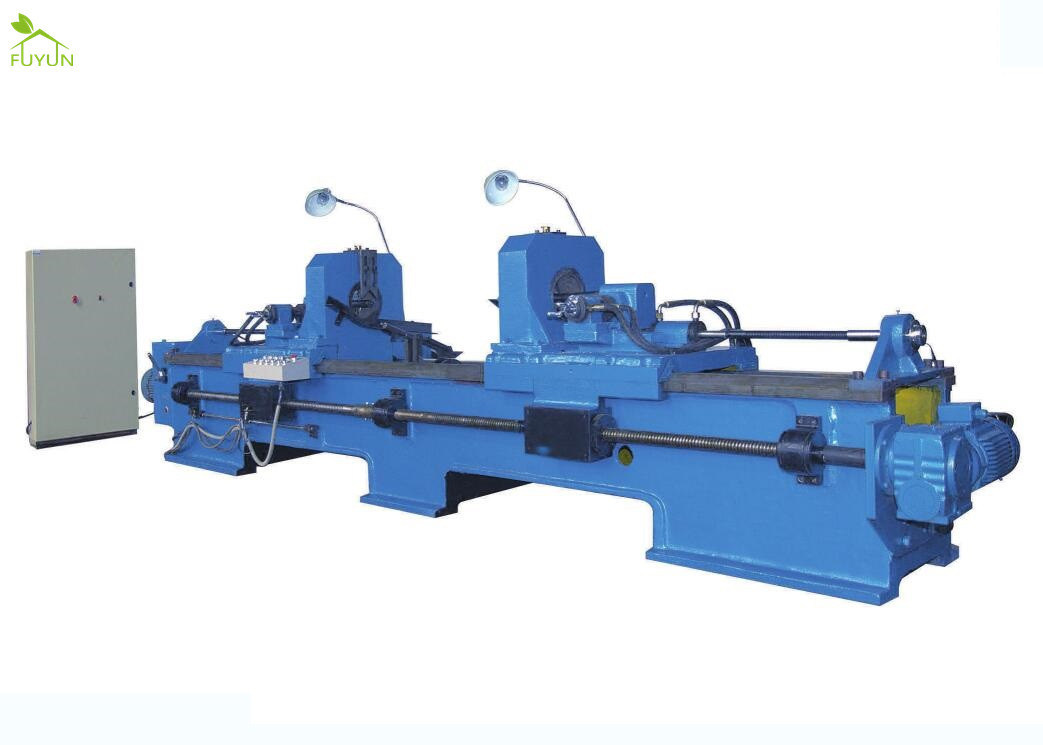

2600mm Mining Steel Conveyor Roller Pipe Boring Turning Machine 50Hz Dia 219mm
Qucik Detail:
frequency: 50HZ
voltage: 380V
pipe max length: 2600mm
pipe max dia:219mm (76mm, 89mm, 108mm, 159mm, 219mm)
warranty: 3 year
Product Description:
1. Machine main purpose and use range
The machine is processing of the rollers on both ends of the pipe belt conveyor automation special equipment. Use all types of cast iron or pressing bearing rollers who product at home and aboard, then the pipe seam allowance can be processing on the equipment. The machine adopts mechanical fast clamping device, clamping reliable, adjustment for clamping force is simple and convenient. cutting tool feed driven by hydraulic pressure, can be stepless speed regulating, And left and right two feed cylinder adopts hydraulic synchronous circuits, can feed and return at the same time. Adopts manual way if radial feed ,it can be adjusted according to processing requirement accurate location. Futhermore, equipped with hydraulic automatic knife when cutting tool feed to the persent position (dead point) the knife back-off automatically, to avoid of scratch for processed surface. Electric control part adopts imported Japan programmable controller (short for PLC) as core of control system.
The machine with high reliability, simple operation and convenient maintenance, wide applicable range, high working efficiency, and especially suitable for large quantities of roller processing.
2. Application conditions
This machine can be used within no more than 1000 meters, the environment temperature + 10 ~ 40 ℃, no dust and all kinds of corrosive medium. Processed tubes to remove floating rust.
Technical Parameter:
| Specifications | QZ12-16×120 | QZ12-16×220 | QZ12-22×260 |
| Spindle Center height Of machine tool | 900mm | 900mm | 900mm |
| Hydraulic system working pressure | 1.5-4MPa | 1.5-4MPa | 1.5-4MPa |
| Rotate speed of Spindle | 350,500r/min | 350,500r/min | 350,500r/min |
| Feeding speed | Stepless adjustable | Stepless adjustable | Stepless adjustable |
| Main driving motor | 7.5kW 1450r/min | 7.5kW 1450r/min | 7.5kW 1450r/min |
| Hydraulic system of the motor | 2.2 kW | 2.2 kW | 2.2 kW |
| Slide moving motor | 3kW | 3kW | 3kW |
| Pipe diameter of cutting | Φ60-Φ120mm | Φ89-Φ160mm | Φ89-Φ219 mm |
| Cut off the steel pipe length | 200-2200 mm | 200-2200 mm | 200-2600 mm |
| Working rhythm | 40s/pc | 40s/pc | 40s/pc |
| Equipment size | 5300×1120×1200mm | 5300×1120×1200mm | 5700×1120×1200mm |
Package & Delivery:
the product is packed in waterproof file and standard carton, we make sure the product good in transportation. we will send machine on time and choose TNT, DHL, FEDEX and so on famous international logistic company. we also packed and deliver as customer's special requirement.
