Auto Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor

Auto Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor

Auto Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor
video

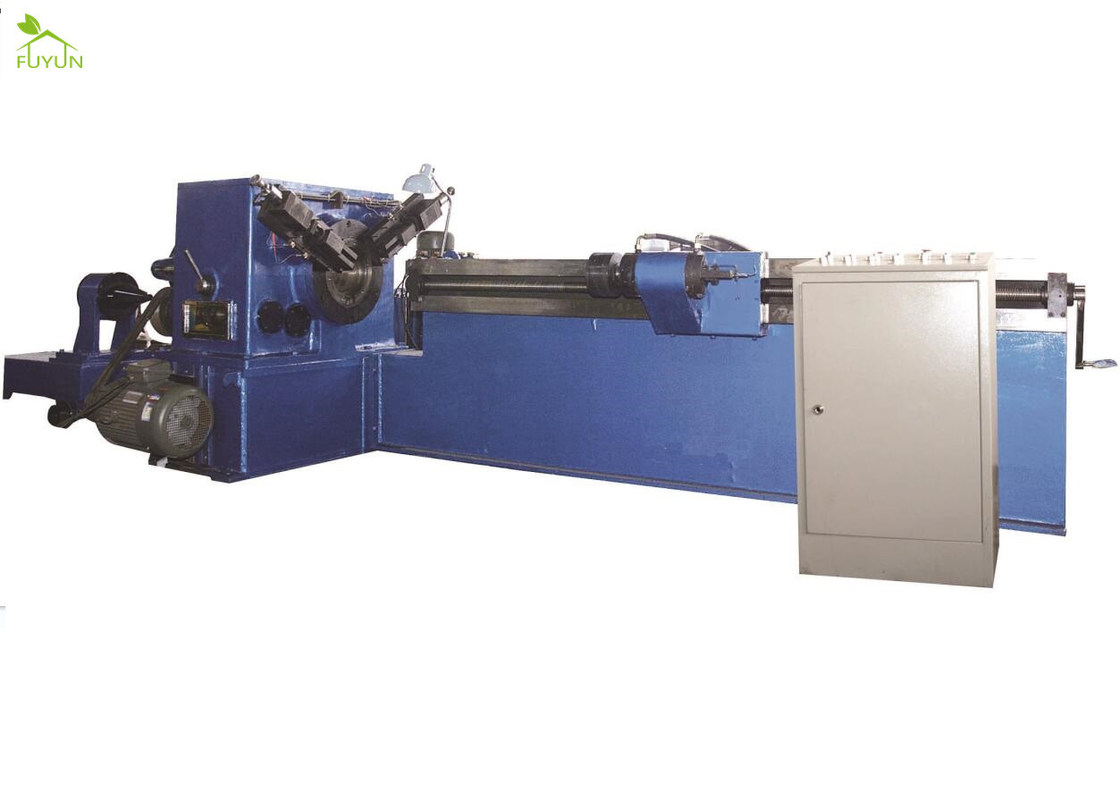

Auto Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor
Product Details:
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, CE
Model Number: QZ260
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 10000-19500/SET
Packaging Details: Steel and Wood Package
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 1 set /15 Days
Contact Now
Detailed Product Description
Application: Heavy Duty Roller, Conveyor, Idler, Mining Roller, Belt Conveyor Max Pipe Length: 2600mm
Max Pipe Dia: 219mm Voltage: 110-400V
Warranty: 3 Year Product Name: Dia 219mm Length 2600mm Automatic Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor
Color: Green, Red, Customized Size: 3800×1200×1560mm
High Light:

Mining Belt Roller Conveyor Chamfering Machine

,

219mm Pipe Cutting And Chamfering Machine

,

Steel Pipe Chamfer Cutting Machine

Dia 219mm Length 2600mm Automatic Steel Pipe Cutting And Chamfering Machine For Mining Belt Roller Conveyor



Qucik Detail:



frequency: 50HZ

voltage: 380V

max pipe length: 2600mm

max pipe dia: 219mm

warranty: 2 year

weight: 3200kg





Product Description:



This machine is an automatic pipe cutting machine. Automatic feeding, clamping and cutting of circular steel pipe. Good surface quality and high precision. It is suitable for medium thickness circular steel pipe and mass continuous production. The machine tool adopts hydraulic clamping device and PLC controlled NC feeding mechanism, time circuit control, automatic cutting feed and automatic rapid tool withdrawal. High accuracy of repeated positioning. The machine tool adopts workpiece stationary and tool rotating processing. It can greatly improve the cutting speed.



when loading and unloading the machine tool with a crane, the machine tool shall not be impacted or violently vibrated. Under no circumstances shall it be excessively tilted, inverted or placed in an unstable place. When the roller is used to move on the inclined surface, the slope shall not be greater than 15 degrees, and the roller diameter shall be 60mm to 80mm. When loading and unloading the crane, do not use ropes to collide with weak parts. Wooden blocks shall be added at the contact position between the steel cable and the machine tool to protect the appearance of the machine tool. The handling shall be carried out in accordance with the relevant regulations and procedures for the handling of precision mechanical equipment. If the loss is caused by non-compliance with the regulations, our factory will not be responsible for compensation.





Technical Parameter:



item specification
Way of work Hold pipe, chamfering tool and cutting tool run
Pipe diameter range Ф89-219mm
Pipe thickness 3mm-8mm
Main motor power 5.5Kw
Spindle speed Variable frequency stepless speed regulation
Clamping system Self centering, hydraulic clamping
Way of feeding Servo motor, ball screw
Feeding length 20-1200mm
Chamfering and cutting tool material White steel knife, carbide knife
Feeding rate 0.09/r
Cutting off speed Ф89×2.5 15s
Machine size 3800×1200×1560
Machine weight 3200kg





















































Operating System Description

1. The operation buttons and switches are centralized on the panel operation box (as shown in Figure 1). During operation, you only need to press the corresponding function buttons according to certain procedures to carry out normal operation. Each button has corresponding instructions. Pressing the red emergency stop button can realize the total stop of the machine tool.

2. The machine tool uses 380V ± 10%, 50Hz ± 10% three-phase four wire AC, 36V control circuit position and 36V work light.

3. power on

Connect the three-phase power supply and PE line, turn on the power switch, turn on the emergency stop button, and the display screen is on.

4. precautions

A. When checking or repairing the circuit, the power supply must be cut off.

B. When starting up, keep a distance of 8-10mm between the tool and the workpiece to avoid the workpiece colliding with the tool when feeding.

C. During tool installation, first determine whether the tool holder is retracted in place.

D. Disassemble the tool holder regularly and add lubricating oil. The cleaning cycle of tool holder is generally about 10 days. If it is used frequently, it should be cleaned once every 3-5 days. The lubricating oil cycle is 4 times per shift.

E. The midway stop must be stopped when the rear fixture is loosened and returned.

2.4 manual operation

2.4. 1. Connect the power supply first, three-phase four wire, and there must be zero line, otherwise the electrical appliance will be burned.

2.4. 2 close the switch, close all the switches in the electrical cabinet, and open the emergency stop on the panel.

2.4. 3 switch the manual and automatic knob to manual, and then operate in the touch screen manual mode. (Figure 1, figure 2, figure 3)

2.4. 4 manual operation sequence

Manual on (turn the manual automatic knob to manual, and click the manual button on the touch screen) → oil pump on → front clamping → rear clamping → host on → feed → cut off the backward cutter → host stop → complete.



Package & Delivery:

the product is packed in waterproof file and standard carton, wood and steel structure, we make sure the product good in transportation. we will send machine on time and choose TNT, DHL, FEDEX and so on famous international logistic company. we also packed and deliver as customer's special requirement.
