Mining Steel Conveyor Roller Pipe Boring Machine 50Hz Dia 219mm Length 2200mm

Mining Steel Conveyor Roller Pipe Boring Machine 50Hz Dia 219mm Length 2200mm

Mining Steel Conveyor Roller Pipe Boring Machine 50Hz Dia 219mm Length 2200mm
video
Mining Steel Conveyor Roller Pipe Boring Machine 50Hz Dia 219mm Length 2200mm
Product Details:
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, CE
Model Number: TC-220X2200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 8000-19000/SET
Packaging Details: Steel and Wood Package
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20 Days
Contact Now
Detailed Product Description
Application: Mining Belt Conveyor, Roller, Idler, Heavy Duty Conveyor Pipe Max Length: 2200mm
Frequency: 50Hz Voltage: 110-400V
Warranty: 3 Year Product Name: Diameter 219mm Length 2200mm Mining Steel Conveyor Roller Pipe Boring Machine 50Hz
Color: Blue, Green, Red, Customized Pipe Max Dia: 219mm
High Light:

Diameter 219mm Pipe Boring Machine

,

Conveyor Roller Pipe Boring Machine

,

Length 2200mm Pipe Boring Machine

Diameter 219mm Length 2200mm Mining Steel Conveyor Roller Pipe Boring Machine 50Hz



Qucik Detail:



frequency: 50HZ

voltage: 380V

pipe max length: 2200mm

pipe max dia:219mm (76mm, 89mm, 108mm, 159mm, 219mm)

warranty: 3 year





Product Description:



1. Product purpose and scope of application:

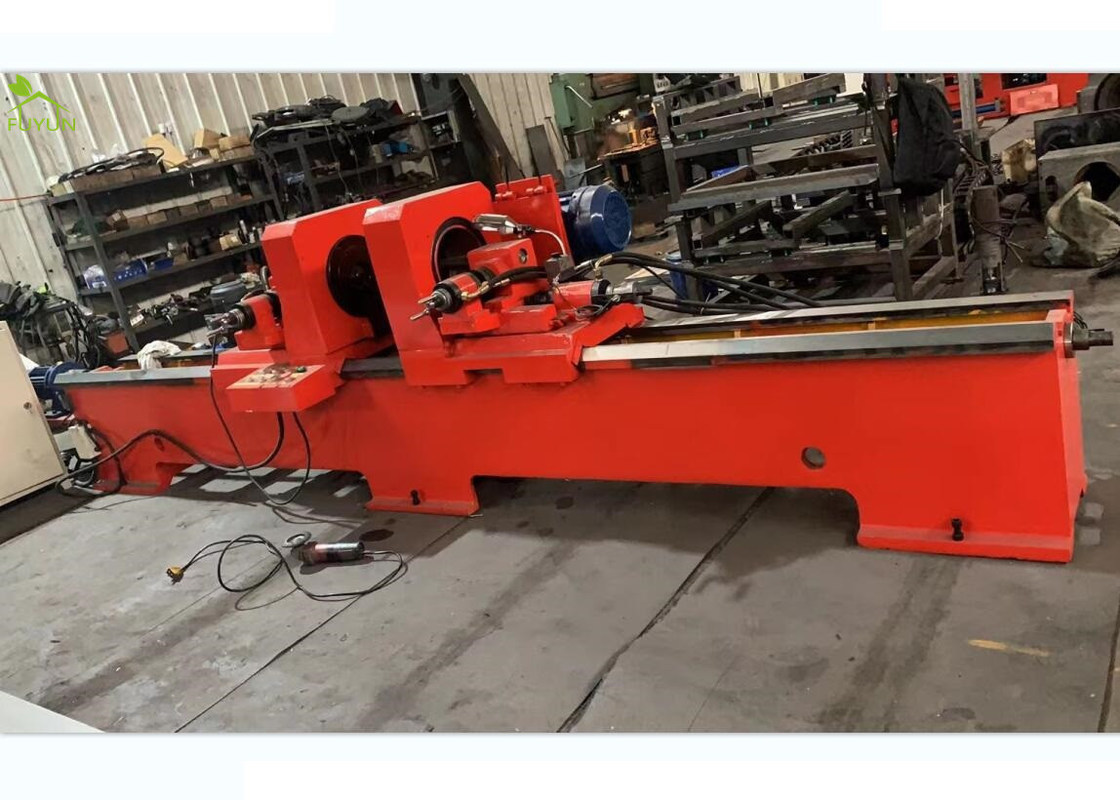

The machine tool is an automatic special machine tool designed for processing the ends of the steel pipe of the idler of the belt conveyor. It is suitable for various types of idlers (cast iron or stamping bearing seat) produced at home and abroad.The machine tool adopts mechanical fast clamping device, which is reliable; The clamping force adjustment is simple and convenient. The tool feed is hydraulically driven and can be adjusted steplessly; The left and right feed cylinders adopt hydraulic synchronous circuit, which can feed and retract the tool at the same time. Radial feed adopts manual, which can be accurately adjusted according to machining requirements. It is also equipped with a hydraulic automatic tool letting mechanism to automatically let the tool when the tool is fed to the predetermined position to avoid scratching the machined surface. In terms of electrical control, the control system with imported programmable controller (PLC) as the core is adopted. The equipment has wide application range, strong reliability and high work efficiency, and is especially suitable for the processing and production of batch idler.



2. Hydraulic system:
The oil pump pressure is 6.3MPa and the flow is 25L / min. The working pressure of the system is 2.5-4mpa. The pressure can be changed by adjusting the overflow valve.



3.The external power supply of the electrical cabinet is three-phase 380V, 50Hz AC.Turn on the power supply and the indicator light is on.
Press the clamping button to move inward on the sliding seat, and press the release button to move outward on the sliding seat. If the movement direction is opposite, any two wires of the three-phase line of the motor shall be replaced. Press the hydraulic button once to start the hydraulic, and then press it again to stop. When the system is powered on, it is stopped by default. The spindle button is the same as the hydraulic button.
PLC is the center of equipment control system. Its internal structure is high-precision and large-scale integrated circuit. Special attention should be paid to maintenance. Do not place in places with high temperature, humidity, vibration or impact. During transportation, shockproof measures shall be taken to minimize vibration. Do not use corrosive solvents to scrub the casing. Pay attention not to drop wires, screws and other sporadic items into the casing, and conduct regular inspection to solve the problems in time.



4. Installation:
When the equipment arrives at the destination, carry out horizontal measurement to ensure that the base is horizontal and stable. Insert the aviation plug into the corresponding hole and lock it according to the electrical diagram. When installing the hydraulic system, pay attention to the cleanliness of each oil pipe, do not bring dirt into the oil pipe or connector, and the connection of each control pipeline shall be correct, safe and reliable. The oil tank shall be cleaned and enough hydraulic oil shall be added as required. Sufficient lubricating oil shall be added to each oil hole.



Technical Parameter:







item parameter
Spindle height 900mm
Roller pipe dia Ф89-219mm
Pipe length 200-2200mm
Pipe hole turning depth 0-70mm
Rail moving speed 2m/min
Spindle rotate 500r/min
Feeding speed Hydraulic stepless adjust
Cutting depth 0-3mm
Tool holder radial feed scale value per grid 0.05mm
Repeat positioning accuracy of tool holder radial tool 0.05mm
Main spindle motor 4kw 1450r/min
Clamping motor 1.5kw 1450r/min
Hydraulic pressure 2.5-4Mpa
Flow volume 0-25L/min
Machine size 4500×1120×1200mm




Package & Delivery:

the product is packed in waterproof file and standard carton, we make sure the product good in transportation. we will send machine on time and choose TNT, DHL, FEDEX and so on famous international logistic company. we also packed and deliver as customer's special requirement.
