Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: SASO, ISO, GB, CE
Model Number: TX-2023
Minimum Order Quantity: 1 Set
Price: USD 8000-30000/SET
Packaging Details: Steel and Wood Package
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20 Days
Detail Information
Application: Mining Belt Roller Shaft, Conveyor Shaft, Idler Shaft Shaft Dia: Ф20-Ф40mm
Shaft Length: 200-2300mm Voltage: 230-400V
Warranty: 5 Year Product Name: 2300mm Mining Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm
Color: Blue, Green, Red, Customized Shaft Groove Width: 6-35mm
High Light:

Mining Conveyor Roller Manufacturing Machine

,

Roller Conveyor Milling Machine

,

Dia 20mm Conveyor Roller Manufacturing Machine


Product Description

2300mm Mining Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm





Qucik Detail:



frequency: 50HZ

voltage: 380V

current: 360A

warranty: 5 year

shaft dia: Ф20-Ф40mm

shaft length: 200-2300mm





Product Description:



The product is an automatic special equipment for processing the flat grooves at both ends of the idler shaft of belt conveyor. It is suitable for the production and processing of idler shafts at home and abroad.The machine uses the domestic advanced Superposition valve hydraulic system to realize the fast forward and fast backward of the main axle box, and can adjust speed steplessly, with less auxiliary working hours and high work efficiency. It can process the through flat of the shaft head and the groove flat of the shaft head, and the four processing surfaces at both ends can be processed at the same time.



It takes the programmable controller imported from Taiwan as the core and the advanced contactless switch as the limit for program control. With stable and reliable operation and high degree of automation, it is suitable for batch processing of idler shaft. It is a necessary equipment for shaft flat processing in conveyor industry



The machine tool adopts hydraulic quick tightening device, which is reliable, simple and convenient to adjust the clamping force, and stepless speed regulation. The left and right feed cylinders adopt hydraulic synchronous circuit for disc milling.The working environment of the equipment is: - 20 ℃ to + 55 ℃, where there is no dust and various corrosive media.



Technical Parameter:



item parameter
type TX-2023
Spindle running 160r/min
Shaft center height 850mm
Shaft dia Ф20-Ф40mm
Shaft length 200-2300mm
Shaft groove width 6-35mm
Milling depth 0-5mm
Main motor 4kw×2
Working pressure 6.5-6.5Mpa
Machine weight 3000kg
Machine size 4000×1500×1440mm



1.2 installing

1.2. 1 when loading and unloading the machine tool with a crane, the machine tool shall not be impacted or violently vibrated. Under no circumstances shall it be excessively tilted, inverted or placed in an unstable place. When the roller is used to move on the inclined surface, the slope shall not be greater than 15 degrees, and the roller diameter shall be 60mm to 80mm. When loading and unloading the crane, do not use ropes to collide with weak parts. Wooden blocks shall be added at the contact position between the steel cable and the machine tool to protect the appearance of the machine tool. The handling shall be carried out in accordance with the relevant regulations and procedures for the handling of precision mechanical equipment. If the loss is caused by non-compliance with the regulations, our factory will not be responsible for compensation.



1.2. 2. The machine tool shall be installed on a flat and firm ground. Before the installation of the machine tool, the user shall provide four pairs of wedges, use a level gauge and level the machine tool with the help of wedges. The longitudinal level shall not exceed 0.10/1000 The horizontal level shall not exceed 0.05/1000



1.2. 3 after the installation of the machine tool, fill hydraulic oil and cutting fluid as required. Fill the lubricating oil according to the requirements of the lubricating system.



1.2. 4. Test the machine and check whether the mechanical and electrical systems of the machine tool work well, whether the lubrication is sufficient and whether the installation is intact.



Package & Delivery:

the product is packed in waterproof file and standard carton, we make sure the product good in transportation. we will send machine on time and choose TNT, DHL, FEDEX and so on famous international logistic company. we also packed and deliver as customer's special requirement.

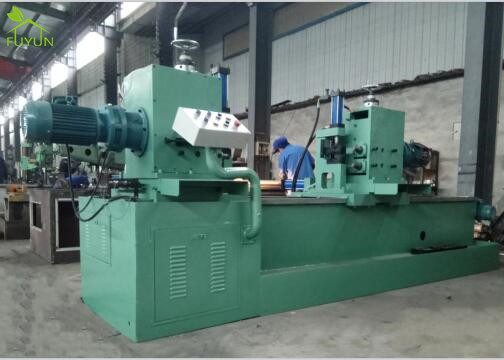

Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm 0



Factory Show:

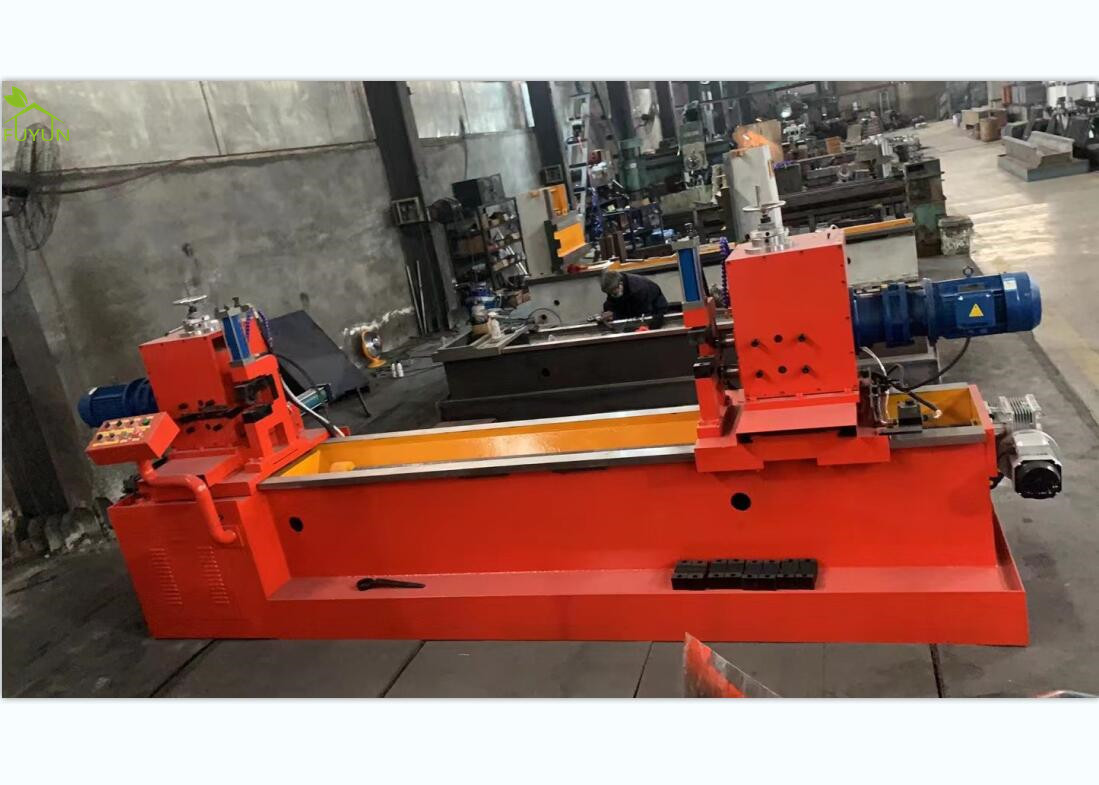

Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm 1

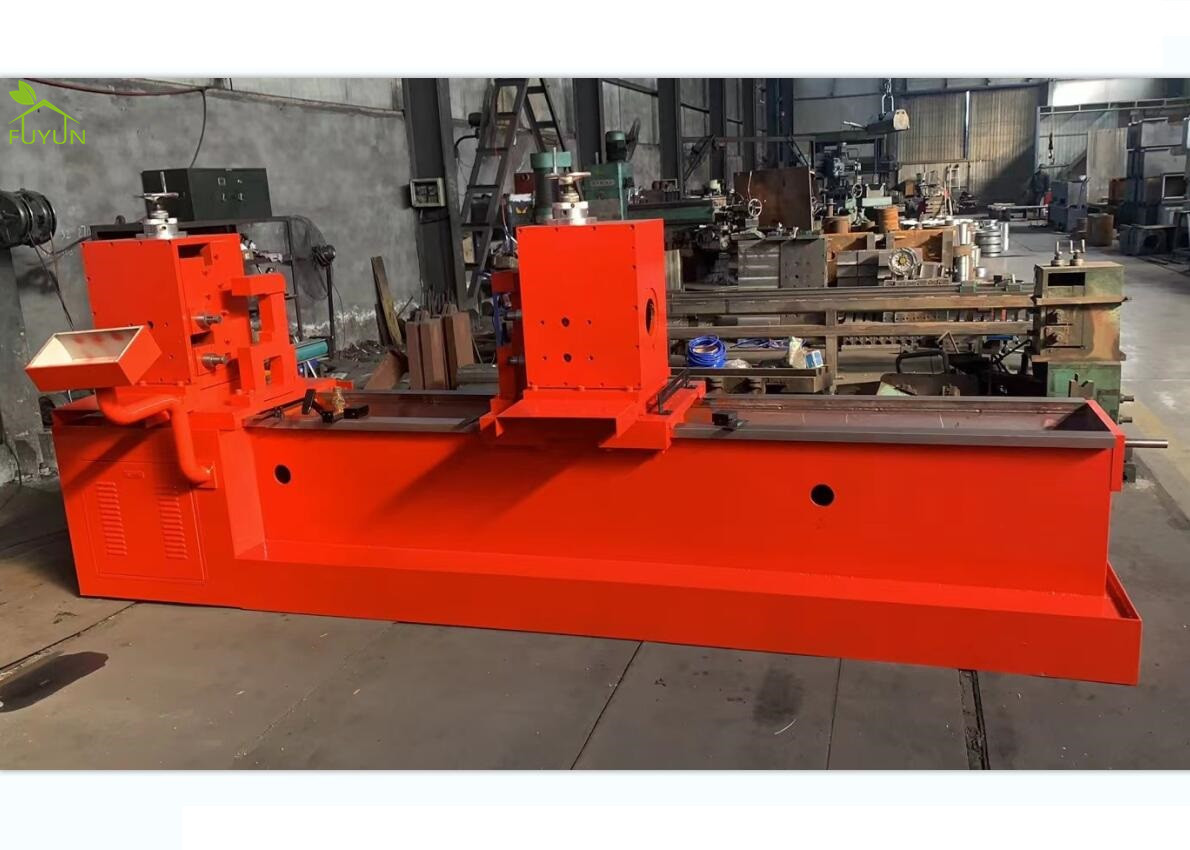

Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm 2

Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm 3

Belt Roller Conveyor Shaft Both Ends Milling Machine Dia 20mm 40mm 4
