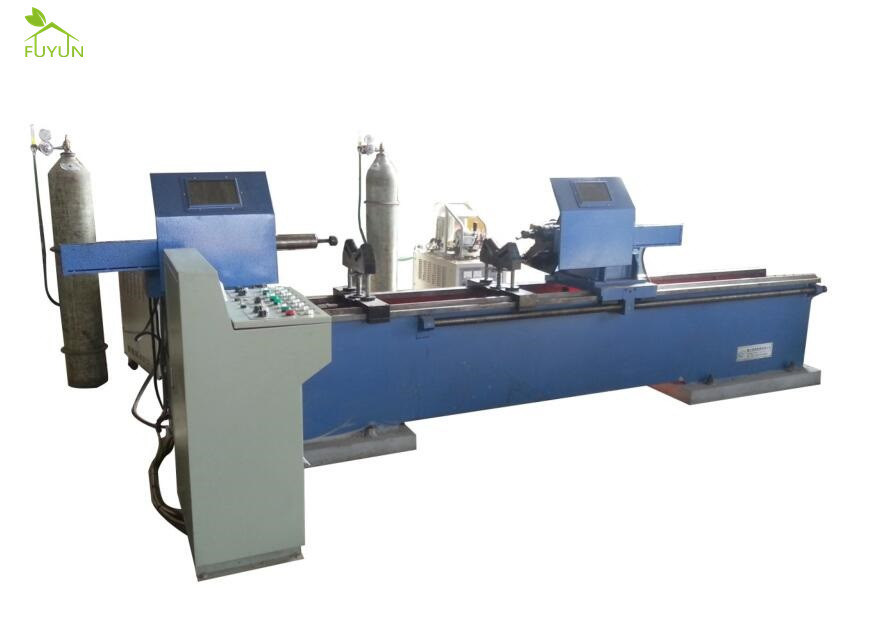

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining
video
Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining
Product Details:
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, CE
Model Number: NZC-2×200KR-220
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 10000-25000/SET
Packaging Details: Steel and Wood Package
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20 Days
Contact Now
Detailed Product Description
Application: Heavy Duty Steel Roller, Mining Belt Roller Shaft, Conveyor Shaft, Idler Shaft Power Input: Three Phase 380V50Hz
Output Voltage: 15~25V Applicable Wire Diameter: Φ0.8~Φ1.0mm
Applicable Workpiece Length: 200~2200mm Product Name: 2200mm Steel Conveyor Roller Idler Normal Speed Automatic CO2 Welding Machine In Coal Mining
Applicable Workpiece Diameter: Φ60~Φ250mm Dimension: 3900×950×1300mm
High Light:

Normal Speed Automatic CO2 Welding Machine

,

Coal Mining Automatic CO2 Welding Machine

,

Steel Conveyor Roller Welding Machine

2200mm Steel Conveyor Roller Idler Normal Speed Automatic CO2 Welding Machine In Coal Mining





Qucik Detail:



Power input: three phase 380V50Hz

Output voltage: 15~25V

Rated capacity: 7.6kVA×2

Applicable wire diameter: Φ0.8~Φ1.0mm

Applicable workpiece length: 200~2200mm

Applicable workpiece diameter: Φ60~Φ250mm





Product Description:



Automatic CO2/MAG auto welding machine is adopted with imported programmable controller (PLC) as the core of the control system from Japan instead of traditional relay logic control circuit, which improves equipment reliability scope and work efficiency greatly.



The machine uses CO2, Ar + CO2 gas, Ar + CO2 + O2 etc. as the welding protective gas or uses drug core welding wire + CO2 as protective welding method. With φ1.0~φ1.2mm H08Mn2SiA welding wire ,it can complete the flat ring welding and the angle of inner (outer) girth welding for the hydraulic oil cylinder, fire equipment, belt conveyor roller, automobile drive shaft rotary.



The welding process of the machine is automatic.This type of automatic welding machine is our company’s finalized product with high degree of automation, high efficiency and high welding quality, and it also greatly reduces the labor intensity of welders.



Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 0





Technical Parameter:

Specification NZC-2×200KR-220 NZC-2×350KR-260
Power input three phase 380V50Hz three phase 380V50Hz
Rated duty cycle 60% 50%
Welding current 50~200A 60~350A
Output voltage 15~25V 16~36V
Rated capacity 7.6kVA×2 18.1kVA×2
Applicable wire diameter Φ0.8~Φ1.0mm Φ1.0~Φ1.2mm
Gas flow 10~25L/min 10~25L/min
Applicable workpiece length 200~2200mm 200~2600mm
Applicable workpiece diameter Φ60~Φ250mm Φ60~Φ250mm
Spindle speed 1~6r/min 1~6r/min
Horizontal thrust cylinder travel 50mm 50mm
Torch feeding cylinder travel 50mm 50mm
Hydraulic system adjustment range 0~4MPa 0~4MPa
Torch right-and-left oscillation ±45° ±45°
Dimension 3900×950×1300mm 4300×950×1300mm



Damageable Commonly Used Spare Parts:

Item Name Specification Unit Price
1 Gun Barrel   $10
2 Current Contact Nozzle 1.0mm*45 $2.5
3 Insulating Sleeve   $2.3
4 Conductive Rod   $4.5
5 Spray Nozzle   $4.5
6 Wire Feeding Tube   $4.5
7 Air Lock   $1.8



Package & Delivery:

the product is packed in waterproof file and standard carton, we make sure the product good in transportation. we will send machine on time and choose TNT, DHL, FEDEX and so on famous international logistic company. we also packed and deliver as customer's special requirement.

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 1



Factory Show:

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 2

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 3

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 4

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 5



FAQ:

Steel Conveyor Roller Idler Automatic CO2 Welding Machine In Coal Mining 6
