| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, ASTM, SASO, GB, SONCAP, BV |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.15-1.75 square meters |
| Packaging Details: | packed in roll with pipe core, woven bags, and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Mining Sites, Washing Pool, Coal Mining,Heap Leach Pads Landfills. Solid Waste Landfill Capping Vertical Cutoff Walls Irrigation Ponds. Farm Ponds. Agricultural Ponds Water Conveyance, Canals Aquaculture Hydroelectric Energy Storage Reservoirs Erosion | Material: | HDPE, PVC, LDPE, Polyethylene, LLDPE, EVA |
|---|---|---|---|
| Function: | Antiseepage, Isolate, Protect, Control Temperature | Product Name: | HDPE High Density PolyEthylene 1.0mm Anti Seepage Isolation Wasteland Anti Pollution Black Geomembrane Fabric Liners |
| Thickness: | 1.0mm | Certificate: | ASTM, EN, ISO, GB, GM13 |
| Origin: | Made In China | Color: | Black |
| High Light: | High Density PolyEthylene Geotech Fabric,1.0mm Geomembrane Fabric Liners,1.0mm HDPE Geomembrane Liners |
||

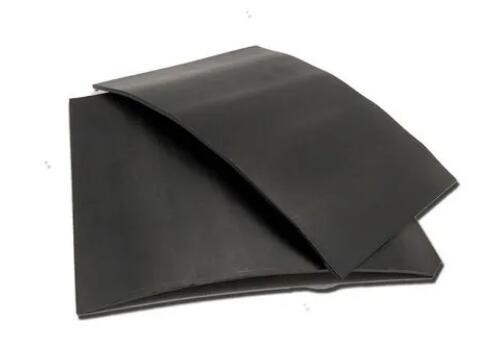

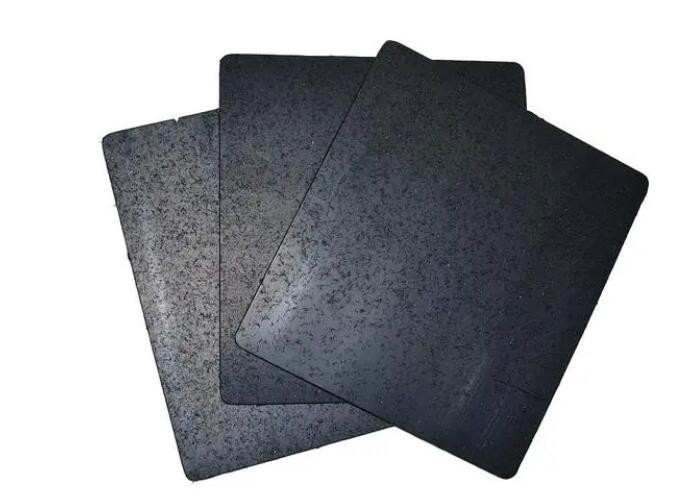

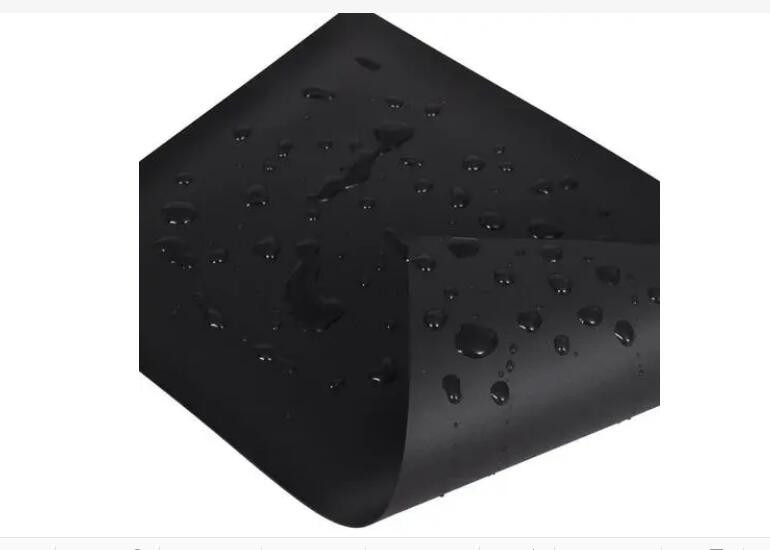

HDPE High Density PolyEthylene 1.0mm Anti Seepage Isolation Wasteland Anti Pollution Black Geomembrane Fabric Liners
Quick Detail:
Production Description:
HDPE Geomembrane(water-proof) is a black,high quality,high density polyethylene geomembrane produced from specially formulated,virgin polyethylene resin.The polyethylene resin is designed specifically for flexible and durable geomembrane applications,it contains approx.98% polyethylene,2% carbon black and trace amounts of antioxidants and heat stabilizers,dimensional stability and thermal agin characteristics,HT PLASTIC Geomembrane has excellent resistance to UV radiation and is suitable for exposed applications.These product specifications(more than 1.0mm) meet and equal to GRI-GM13 standard.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Applications:
Advantage:
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
