Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: BV, ISO, GB, SASO, SONCAP
Model Number: 1.0MM
Minimum Order Quantity: 1650 square meters
Price: USD 0.65-1.65 square meters
Packaging Details: packed as roll with woven bags and belt
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Thickness: 1.0mm Application: Landfills, Steep Slope
Material: EVA, Polyethylene, HDPE, LLDPE, PVC Function: Cover, Isolation, Drainage, Antiskid
Product Name: Black Landfills Cover Isolation Drainage Antiskid Textured HDPE 1.0mm Geomembrane Liners With Column Points Length: 200m
High Light:

8m HDPE Waterproof Geotextile Fabric

,

Isolation Waterproof Geotextile Fabric

,

Isolation Geotextile For Slope Protection


Product Description

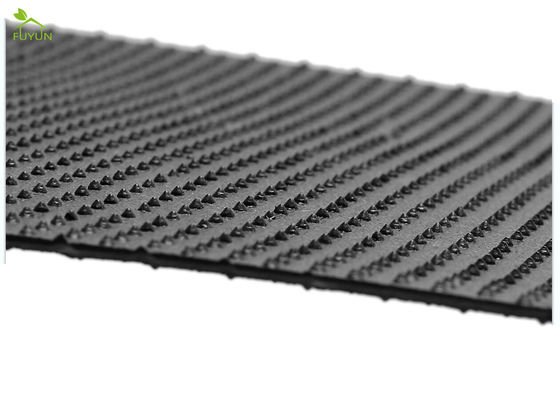

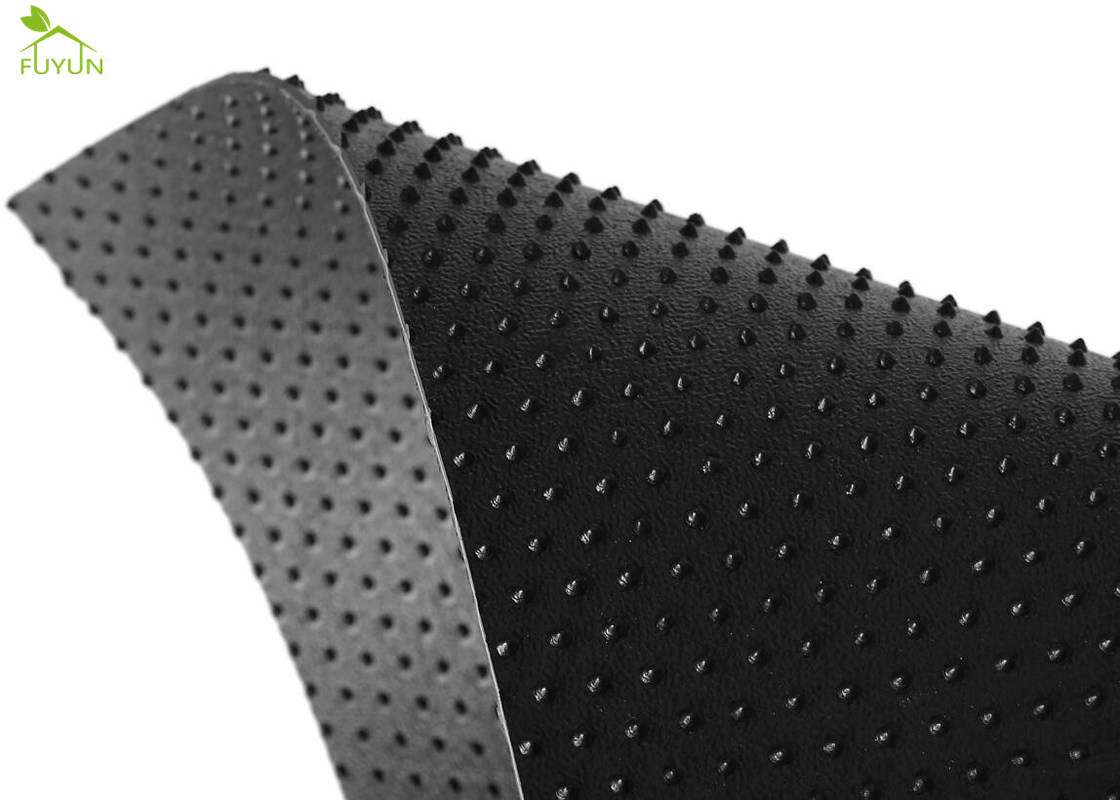

Black Landfills Cover Isolation Drainage Antiskid Textured HDPE 1.0mm Geomembrane Liners With Column Points


Quick Detail:

  • material: EVA, polyethylene, HDPE, LLDPE, PVC
  • length: 200m
  • width: 8m
  • substrate thickness: 1.0mm
  • function: cover, isolation, drainage, antiskid
  • application: landfills, steep slope


Production Description:


HDPE impervious membrane with supporting points is a new type of impervious material, including HDPE impervious membrane with one-side supporting points and HDPE impervious membrane with two-side supporting points. HDPE impervious membrane with supporting points not only has the temperature adaptability, tolerance, aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce property of HDPE smooth geomembrane, but also increases friction coefficient, has anti-skid function, and is more suitable for steep slope and vertical seepage prevention, so as to ensure the stability of the project.



The Geomembrane is a plastic sheet or film made of High Density Polyethylene(HDPE), Low density Polyethylene(LDPE) and linear low density polyethelene(LLDPE) by film blown or extrusion process. HDPE Geomembrane is the most popular anti seepage material. Its main component is 97.5% HDPE resin, about 2.5% is carbon black, anti aging component, anti oxidizing component, UV absorbent and stabilizer and so on. Strong ability for anti seepage and isolation.


Our Anti-seepage HDPE geomembrane is manufactured via triple co-extrusion technique by the most advanced automatic equipment. All the productions are manufactured according to US GRI standards and ASTM, complete specifications with superior quality. The width can reach 8m. Anti-seepage HDPE geomembrane is far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation than traditional concrete, asphalt and compacted clay,


Specification:


Item Properties Index
1 Substrate Thickness (mm) 0.5-2.5
2 Height of Supporting Point (mm) 0.6-0.75
3 Tensile Strength (horiz & vet)Mpa 25
4 Elongation at Break (horiz & vet) % 550
5 Angle Tear Strength (horiz & vet) N/mm 110
6 Resistance to Environmental Stress Cracking F20*h 1500
7 Carbon Black Content (range) % 2-3
8 Impact Embrittlement at -70 yes
9 Oxidation Induction Time at 200 20min



Application

1.foundation reinforcement(ground stabilization:)
2.soft foundation treatment,
3.steep slope protection,
4.landslide prevention,
5.load-bearing mixed retaining wall.
6.It is especially suitable for weathering forests, sand streams and marshes.


Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 0


Advantage:

  • good flexibility and high impervious coefficient.
  • good heat and cold resistance and can be used in a wide temperature range.
  • good chemical properties and strong corrosion resistance.
  • strong weather resistance and excellent aging resistance.
  • high tensile strength and fracture elongation index and It can be used in various harshgeological and climatic conditions


Package:

Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 1


Factory Show:

Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 2
Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 3

Why Choose us?

Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 4

FAQ:

Isolation HDPE 8m Width Waterproof Geotextile Fabric For Slope Protection 5
