| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, ASTM, SASO, GB, SONCAP, BV |
| Model Number: | 0.75MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.45-1.75 square meters |
| Packaging Details: | packed in roll with pipe core, woven bags, and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Mining Sites, Washing Pool, Coal Mining,Heap Leach Pads Landfills. Solid Waste Landfill Capping Vertical Cutoff Walls Irrigation Ponds. Farm Ponds. Agricultural Ponds Water Conveyance, Canals Aquaculture Hydroelectric Energy Storage Reservoirs Erosion | Material: | HDPE, PVC, LDPE, Polyethylene, LLDPE, EVA |
|---|---|---|---|
| Function: | Antiseepage, Isolate, Protect, Control Temperature | Product Name: | High Density PolyEthylene 0.75mm Anti Seepage Isolation Cover Anti Pollution Black Geomembrane Fabric Liners |
| Thickness: | 0.75mm | Certificate: | ASTM, EN, ISO, GB, GM13 |
| Origin: | Made In China | Color: | Black |
| High Light: | Geomembrane Fabric Anti Pollution,Black Geomembrane Fabric Liners,Geomembrane Liners 0.75mm |
||

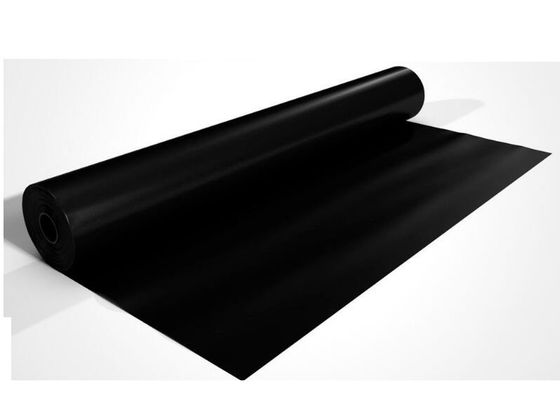

High Density PolyEthylene 0.75mm Anti Seepage Isolation Cover Anti Pollution Black Geomembrane Fabric Liners
Quick Detail:
Production Description:
HDPE geomembrane liners are the most widely used geomembrane in the world and are used more commonly internationally due to their availability and relatively inexpensive material cost. HDPE geomembrane liners are excellent for large applications that require UV and Ozone resistance, chemical resistance or high-quality installations. Typically used in landfill and mining applications, this product is delivered in large rolls with a width of 22.5' and is heat welded in the field by trained technicians providing a high quality, test certified installation.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Applications:
Advantage:
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
