| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | SASO, BV, ISO, GB, SONCAP |
| Model Number: | 0.35MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.25-1.85 square meters |
| Packaging Details: | packed in roll with woven bags, pipe core and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Landfil, Sea Cucumber, Fishpond, Shrimp Pond, Aquaculture | Material: | LLDPE, LDPE, HDPE, EVA, PVC, Polyethylene |
|---|---|---|---|
| Function: | Seepage Control, Impermeable, Protect, Cover | Product Name: | 0.35mm Cover Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Lining Fabric Channel Construction |
| Original: | Made In China | Thickness: | 0.35mm |
| Size: | 100*5.8m | Brand: | Fuyun |
| High Light: | 0.35mm Geomembrane Fabric,LLDPE Geomembrane Lining Fabric,0.35mm Geomembrane Lining |
||

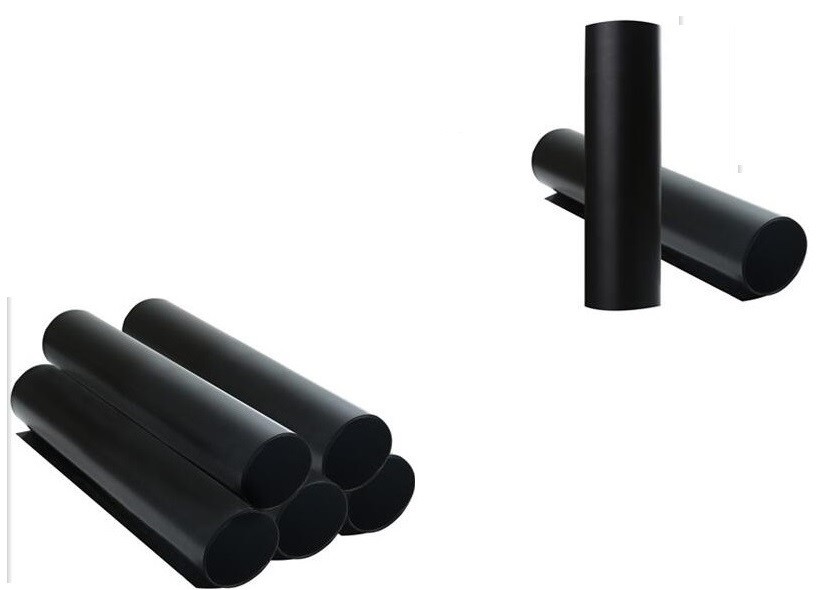

0.35mm Cover Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Lining Fabric Channel Construction
Quick Detail:
Production Description:
Geomembrane liners is also called impervious membrane. With geotechnical cloth as the conduct water layer, high polymer plastic film as the impervious layer, after rolling, hot melting and coating into composite geotechnical anti seepage material. Its thickness is 0.2 mm - 3 mm, in which the thickness of 0.8 mm above is also called geomembrane. The impervious performance of the geotechnical membrane is mainly depend on the impervious performance of the plastic film. Geomembrane liners' rolling, hot melting and coating production process not only maintain its good mechanical properties, but also make the thickness of the composite product film uniform.
Geomembranes are produced in layers of various widths and thicknesses by processes such as extrusion and calendaring of the mixture formed by adding various substances. These substances can be listed as follows; polymer resin, antioxidants, plasticizers, fillers, carbon black and lubricants to the raw material. Fuyun, which is a leading HDPE geomembrane supplier at home and abroad, offers this product in the best way to its customers!
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes.
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection.
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control.
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof.
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection.
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond.
Advantage:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
