Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | SASO, BV, ISO, GB, SONCAP |
Model Number: | 1.0MM |
Minimum Order Quantity: | 2000 square meters |
Price: | USD 0.25-1.85 square meters |
Packaging Details: | packed in roll with woven bags, pipe core and belts |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Application: | Landfil, Sea Cucumber, Fishpond, Shrimp Pond, Aquaculture | Material: | LLDPE, LDPE, HDPE, EVA, PVC, Polyethylene |
---|---|---|---|
Function: | Seepage Control, Impermeable, Protect, Cover | Product Name: | 1.0mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquaculture Lining Fabric |
Original: | Made In China | Thickness: | 1.0mm |
Size: | 100*5.8m | Brand: | Fuyun |
High Light: | 1.0mm impermeable geomembrane liner,ldpe isolation impermeable geomembrane liner,hdpe geomembrane liner impermeable |

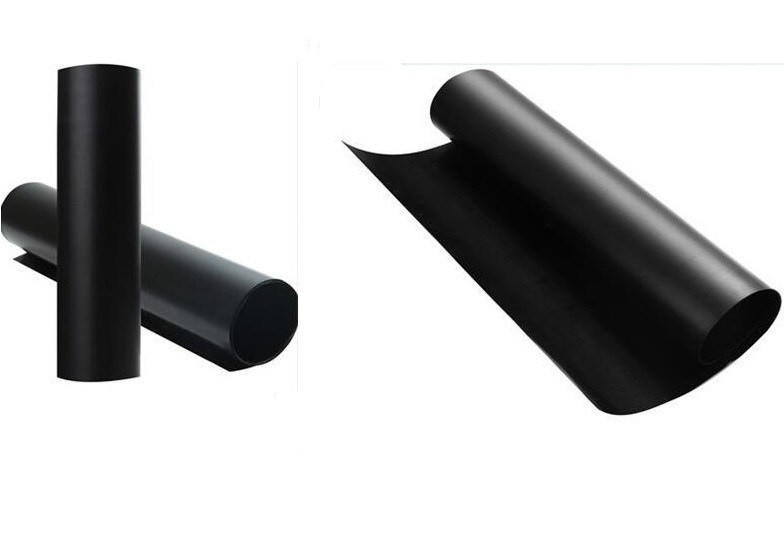

1.0mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquaculture Lining Fabric
Quick Detail:
Production Description:
We are committed to achieving scientific development and becoming a leading integrated service provider of the Bi planar Drainage Geonet, woven geotextile 4m x 100m, LLDPE Geomembrane Textured. Moreover, the company stays unique among its competitors due to its superior standard of quality in production, and its efficiency and flexibility in business support.
Geomembrane liners is also called impervious membrane. With geotechnical cloth as the conduct water layer, high polymer plastic film as the impervious layer, after rolling, hot melting and coating into composite geotechnical anti seepage material. Its thickness is 0.2 mm - 3 mm, in which the thickness of 0.8 mm above is also called geomembrane. The impervious performance of the geotechnical membrane is mainly depend on the impervious performance of the plastic film. Geomembrane liners' rolling, hot melting and coating production process not only maintain its good mechanical properties, but also make the thickness of the composite product film uniform.
1.0mmLLDPE geomembrane is an LLDPE polymer produced by the copolymerization process. It has a narrower molecular weight distribution than general LDPE and has a linear structure that makes it have different rheological properties. The melt flow characteristics of LLDPE meet the requirements of the new process, especially the film extrusion process, which can produce high-quality LLDPE products. LLDPE is used in all traditional markets of polyethylene to enhance the performance of stretch resistance, penetration resistance, impact resistance and tear resistance. Its excellent resistance to environmental stress cracking, low temperature impact resistance and warpage resistance make LLDPE attractive for pipe, sheet extrusion and all molding applications. The latest application of 1.0mmLLDPE is as a geomembrane used as a lining for waste slag landfills and waste liquid pools.
Specification:
general parameter:
Thickness | 0.15-3.0mm & customer ' s requirement |
Width | 1-8m & customer ' s requirement |
Length | 50-200m & customer ' s requirement |
Material | HDPE |
Color | Black,White,Green,Blue & customer ' s requirement |
Surface | Smooth |
Package | Double layers woven bag, and add two strap & customer ' s requirement |
Shipping Marks | support |
Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
Item | Properties | Unit | Thickness | |||||||
1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
2 | Density≧ | g/m3 | 0.94 | |||||||
3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
9 | Stress Crack Resistance | Hrs | 300 | |||||||
10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
High Pressure OIT | ≧ 400 min | |||||||||
13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes.
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection.
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control.
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof.
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection.
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond.
Advantage:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
