0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 0.35MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.25-1.85 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Landfil, Sea Cucumber, Fishpond, Shrimp Pond, Aquaculture Material: LLDPE, LDPE, HDPE, EVA, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect, Cover Product Name: 0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric
Original: Made In China Thickness: 0.35mm
Size: 100*5.8m Brand: Fuyun
High Light:

Impermeable Geomembrane Liners

,

Aquatic Industry Geomembrane Fabric

,

impermeable geomembrane liner 0.35mm


Product Description



0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric





Quick Detail:

  • material: LLDPE, LDPE, HDPE, EVA, PVC, polyethylene
  • length: 50m
  • width: 5.8m
  • thickness:  0.35mm
  • function: cover, seepage control, impermeable, protect
  • application: landfils, sea cucumber, fishpond, shrimp pond, aquaculture,channel



Production Description:



Geomembrane liners is also called impervious membrane. With geotechnical cloth as the conduct water layer, high polymer plastic film as the impervious layer, after rolling, hot melting and coating into composite geotechnical anti seepage material. Its thickness is 0.2 mm - 3 mm, in which the thickness of 0.8 mm above is also called geomembrane. The impervious performance of the geotechnical membrane is mainly depend on the impervious performance of the plastic film. Geomembrane liners' rolling, hot melting and coating production process not only maintain its good mechanical properties, but also make the thickness of the composite product film uniform.



Using a fishpond HDPE geomembrane liner can make the slope more stable than digging a pond directly. It is beneficial to eliminate the threat of wind, rain, wave and other natural conditions to the fish pond, maintain the system stability during the design, and prevent the loss of the cultivated crops in the fish pond due to the damage caused by the environment. In addition, the use of HDPE geomembrane liner allows the pond to have a steeper slope and a deeper depth, equivalent to a disguised increase in production.





Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:



1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes.
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection.
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control.
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof.
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection.

9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond.

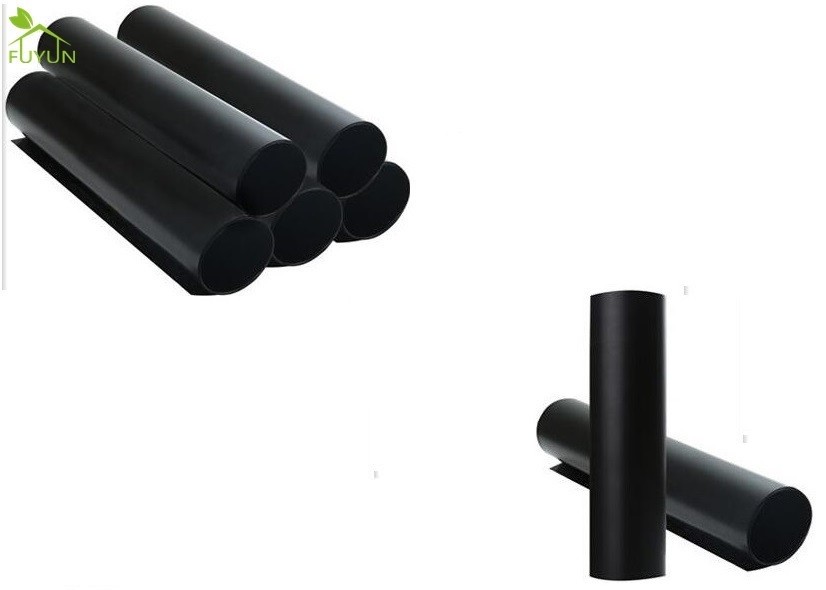

0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 0

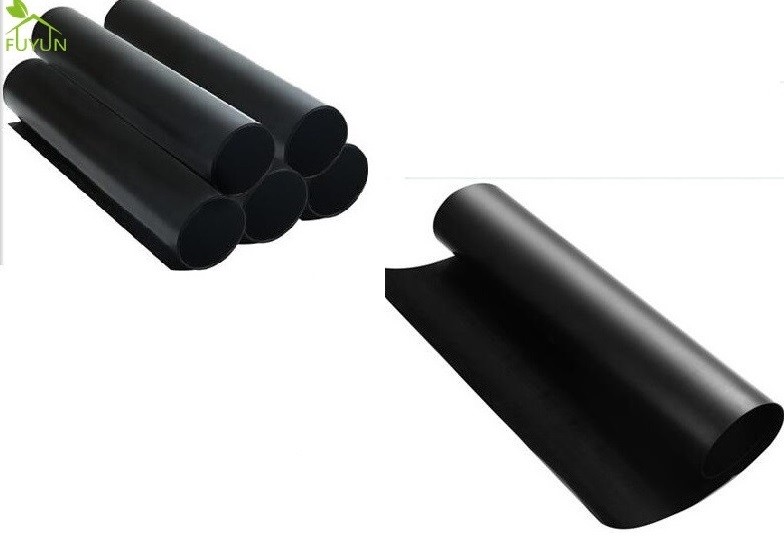

0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 1



Advantage:



1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation





Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

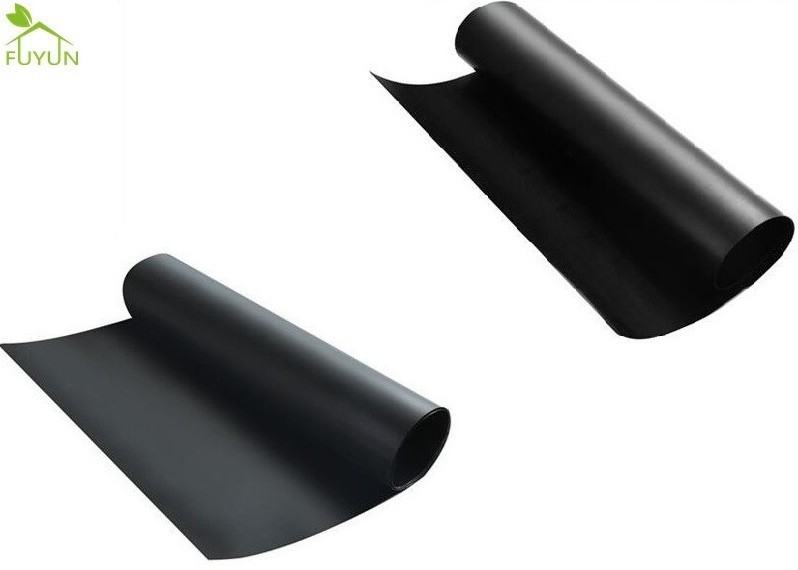

0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 2





Factory Show:

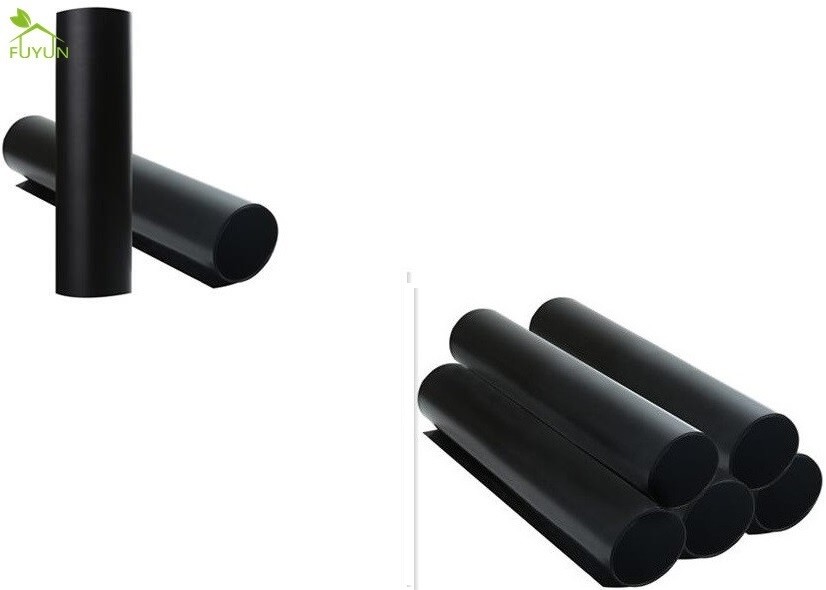

0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 3



0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 4

Why Choose us?



0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 5



FAQ:



0.35mm Impermeable Anti Seepage HDPE LDPE LLDPE Geomembrane Aquatic Industry Liners Fabric 6
