| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, ASTM, SASO, GB, SONCAP, BV |
| Model Number: | 1.5MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.45-1.75 square meters |
| Packaging Details: | packed in roll with pipe core, woven bags, and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Mining Sites, Washing Pool, Coal Mining,Heap Leach Pads Landfills. Solid Waste Landfill Capping Vertical Cutoff Walls Irrigation Ponds. Farm Ponds. Agricultural Ponds Water Conveyance, Canals Aquaculture Hydroelectric Energy Storage Reservoirs Erosion Cont | Material: | HDPE, PVC, LDPE, Polyethylene, LLDPE, EVA |
|---|---|---|---|
| Function: | Antiseepage, Isolate, Protect | Product Name: | Construction Farmland Mining Tailing Ponds Black 1.5mm HDPE LDPE Isolation Anti Seepage Geomembrane Liners |
| Thickness: | 1.5mm | Certificate: | ASTM, EN, ISO, GB, GM13 |
| Origin: | Made In China | Color: | Black |
| High Light: | LDPE Isolation Geomembrane Liners,Geomembrane Liners Anti Seepage,HDPE Isolation Geomembrane Liners |
||

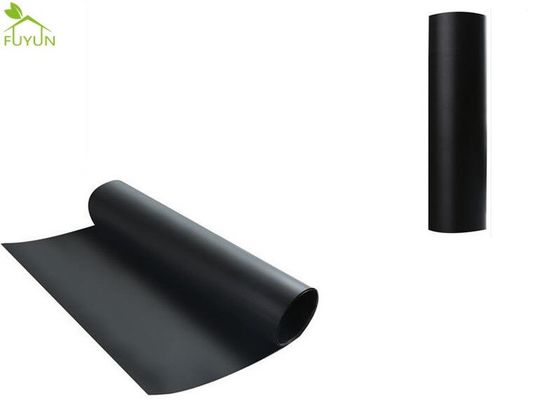

Construction Farmland Mining Tailing Ponds Black 1.5mm HDPE LDPE Isolation Anti Seepage Geomembrane Liners
Quick Detail:
Production Description:
We offer a wide range of liner HDPE geomembrane that is manufactured using quality raw material. These liner geomembranes are suitable for all types of liquid containment solutions ranging from water pollutants, Road construction, highways, and highway embankments.High-Density Polyethylene (HDPE) geomembrane liners are used in a wide range of applications. They are durable, cost-effective and one of the most preferred products for lining projects which require low permeability, chemical, ultraviolet resistance, and aging resistance from the intense stresses of weather.
A geomembrane is a synthetic membrane liner or barrier with a very low permeability that is used in conjunction with any geotechnical engineering material to regulate fluid (or gas) migration in a human-made project, structure, or system. Geomembranes can be impregnated with asphalt, elastomer, or polymer sprays, or as multilayered bitumen geocomposites. By far the most prevalent are continuous polymer sheet geomembranes. Ocean Global manufactures sustainable and innovative geosynthetic membranes or geomembranes that excel in performance under some very strenuous conditions.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Applications:
Advantage:
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
