Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | ISO, SASO, SONCAP, BV |
Model Number: | 1.0MM |
Minimum Order Quantity: | 1500 square meters |
Price: | USD 0.55-3.55 square meters |
Packaging Details: | packed in roll with pipe core and woven bag |
Delivery Time: | 7 Days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Application: | Oil Platform, Slope, River Dam, Flood Dyke, Reservoir | Material: | HDPE, LLDPE, PVC, LDPE, EVA, Polyethylene |
---|---|---|---|
Function: | Cover, Anti-seepage, Reinforce, Protect, Anti Slip | Product Name: | Anti Slip HDPE LDPE Single Double Sides 1.0mm Rough Surface Textured Geomembrane |
Thickness: | 1.0mm | Length: | 5.8m, Customize |
High Light: | Anti Slip Textured Geomembrane,Rough Surface Textured Geomembrane,1.0mm Textured Geomembrane |

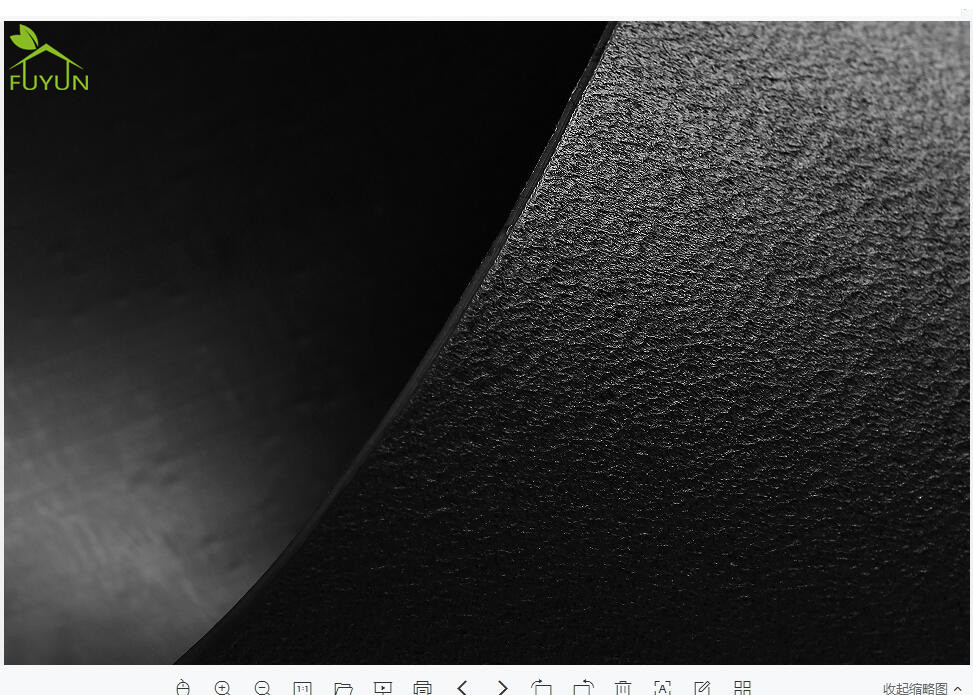

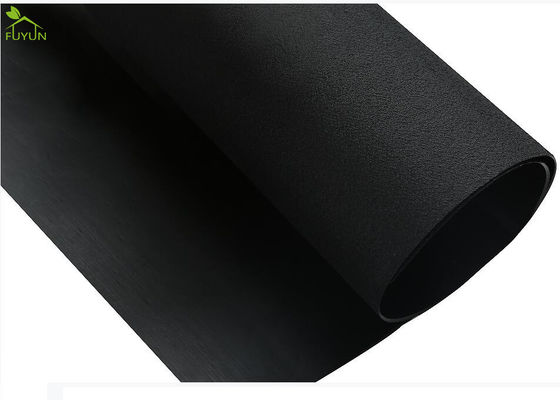

Anti Slip HDPE LDPE Single Double Sides 1.0mm Rough Surface Textured Geomembrane
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
In addition to excellent chemical resistance, mechanical properties, environmental stress cracking resistance, dimensional stability, heat aging resistance, and UV radiation resistance, HDPE pillar-point rough surface geomembrane has a large friction coefficient and anti-skid effect, which is very suitable Laying on the four peripheral slopes or steep slopes and vertical anti-seepage of the waste landfill facilitates the secondary laying of geotextiles and at the same time enhances the resistance to deformation of the membrane. It is generally used in projects where the surface of the membrane body of the slope needs to be covered with soil and a large friction coefficient is required. It can also be applied to road and railway tunnel anti-seepage and drainage projects. The performance index of this product produced by our company is twice higher than that of ordinary rough surface geomembrane, which improves engineering stability.
Specification:
Item | Properties | Unit | Thickness | |||||
1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
1 | Roughness Height | mm | 0.25 | |||||
2 | Minimum Density | g/cm3 | 0.939 | |||||
3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
4 | Elongation at Break | % | 100 | |||||
5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
7 | Stress Crack Resistance | Hrs | 300 | |||||
8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
11 | Dimensional Stability | % | ±2 | |||||
Application:
1. Seepage proof lining of subway, basement and tunnels.
2. Prevention of seepage by salting of roadbed and other foundations.
3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.
4. Seawater and freshwater aquaculture farms.
5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.
6. Seepage prevention of roof.
7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)
Advantage:
1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
