Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, SASO, GB, SONCAP, BV
Model Number: 1.5MM
Minimum Order Quantity: 2000 square meters
Price: USD 1.25-8.55 square meters
Packaging Details: packed in roll with pipe core and woven bag
Delivery Time: 7 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Bank, Slope, River Dam, Flood Dyke, Reservoir, Oil Tank Material: HDPE, PVC, LDPE, Polyethylene
Function: Anti-seepage, Reinforce, Protect, Anti Skip Slippery Product Name: GEO Fabric Non Skid Anti Slippery Seepage Hdpe Geomembrane Liner Textured Two Sides In Underground Works
Thickness: 1.5mm Length: 50m, Customize
Width: 5.8m Origin: Made In China
High Light:

Anti Slippery Seepage GEO Fabric

,

Underground Work Hdpe Geomembrane Liner

,

Geotech Fabric Non Skid


Product Description

GEO Fabric Non Skid Anti Slippery Seepage Hdpe Geomembrane Liner Textured Two Sides In Underground Works

Quick Detail:

  • material: HDPE, polyethylene, LLDPE, PVC
  • length: 50m
  • width: 5.8m
  • thickness:  1.5mm
  • function: antiseepage, protect, reinforce, non skid slippery
  • application: dam, flood dyke, dikes, oil tank, chemical plant

Application:


1. Seepage proof lining of subway, basement and tunnels.

2. Prevention of seepage by salting of roadbed and other foundations.

3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.

4. Seawater and freshwater aquaculture farms.

5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.

6. Seepage prevention of roof.

7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)

Production Description:

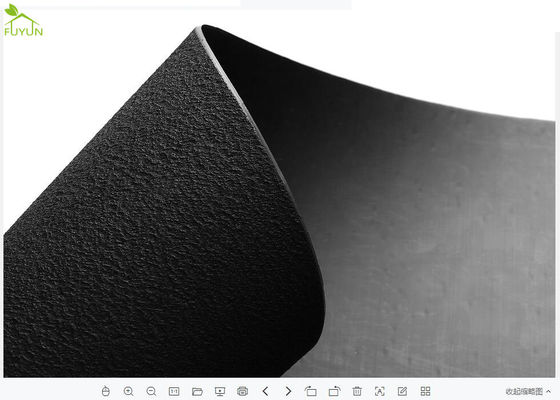

HDPE Textured Geomembrane has rough surface on either one or both sides which can highly improve the friction coefficient which fits more suitable for steep slope and vertical engineering design work. Compared with smooth geomembrane, textured HDPE geomembrane not only has the same features such as high tensile strength, tear resistance, puncture resistance, lowest permeability, alkali and acid resistance, but also has superior shear strength, high multi-axial performance, excellent interface friction properties in combination with outstanding longevity.



HDPE Textured Geomembrane is a proven solution for landfill base liners and water resource management where chemical resistance and superior durability are required. It is ideal for a variety of industries and applications, from agricultural irrigation and water conservation to oil and gas containment and mining.


Specification:


ItemPropertiesUnitThickness
 1.01.251.52.02.53.0
1Roughness Heightmm0.25
2Minimum Densityg/cm30.939
3Breaking StrengthN/mm101316212632
4Elongation at Break%100
5Right Angle Tear StrengthN125156187249311374
6Puncture StrengthN267333400534667800
7Stress Crack ResistanceHrs300
8Carbon Black Content (range)%2.0-3.0
9Low Temperature Impact Embrittlement at -70℃/ok
10Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a)/≤1.0*10-13
11Dimensional Stability%±2





Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 0



Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 1


Advantage:

1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.


Package:

all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.

Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 2


Factory Show:


Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 3


Why Choose us?

Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 4

FAQ:

Anti Slippery Seepage Hdpe Geomembrane Liner Non Skid In Underground Works 5
