| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, SASO, GB, SONCAP, BV |
| Model Number: | 1.5MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 1.25-8.55 square meters |
| Packaging Details: | packed in roll with pipe core and woven bag |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Bank, Slope, River Dam, Flood Dyke, Reservoir, Oil Tank | Material: | HDPE, PVC, LDPE, Polyethylene |
|---|---|---|---|
| Function: | Anti-seepage, Reinforce, Protect, Anti Skip Slippery | Product Name: | GEO Fabric Non Skid Anti Slippery Seepage Hdpe Geomembrane Liner Textured Two Sides In Road Construction |
| Thickness: | 1.5mm | Length: | 50m, Customize |
| Width: | 5.8m | Origin: | Made In China |
| High Light: | Hdpe Geomembrane Liner Non Skid,Hdpe Geomembrane Liner Textured,Anti Slippery Seepage Geomembrane Liner |
||

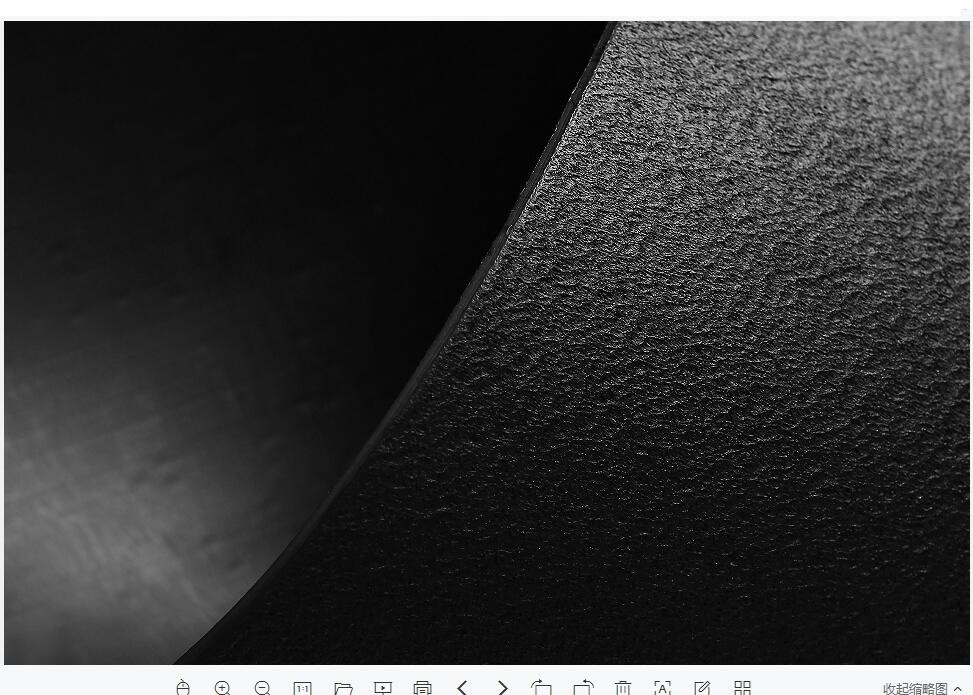

GEO Fabric Non Skid Anti Slippery Seepage Hdpe Geomembrane Liner Textured Two Sides In Road Construction
Quick Detail:
Application:
1. Seepage proof lining of subway, basement and tunnels.
2. Prevention of seepage by salting of roadbed and other foundations.
3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.
4. Seawater and freshwater aquaculture farms.
5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.
6. Seepage prevention of roof.
7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)
Production Description:
Pond Liner is manufactured from one hundred% virgin high density polyethylene,introduced uv stabilizer,which designed for reasonable, secure containment of contaminated soils, liquids or sludges. it is ideal for garage or remediation/remedy of infected materials, chemicals & water.pond liners are designed as fish and plant safe liners.hdpe pond liner has super chemical compatibility and puncture resistance, lending itself to the membrane vessel packages.those pond liners are available in numerous sizes, hues and finishes as consistent with the requirements of clients.
HDPE Textured Geomembrane is a proven solution for landfill base liners and water resource management where chemical resistance and superior durability are required. It is ideal for a variety of industries and applications, from agricultural irrigation and water conservation to oil and gas containment and mining.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Advantage:
1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
