Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | SASO, BV, ISO, GB, SONCAP |
Model Number: | 0.5MM |
Minimum Order Quantity: | 2000 square meters |
Price: | USD 0.75-1.65 square meters |
Packaging Details: | packed in roll with woven bags, pipe core and belts |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Application: | Mining, Water Conveyance (Canal Liners), Sea Cucumber, Fish, Aquaculture, And Shrimp Pond | Material: | Polyethylene, LLDPE, HDPE, LDPE, EVA, PVC |
---|---|---|---|
Function: | Seepage Control, Cover, Impermeable, Protect | Product Name: | 0.5mm Geomembrane Fabric Seepage Control Anti Grass Root Mining Industry |
Thickness: | 0.5mm | Length: | 100m |
Colour: | Black, White | Origin: | Made In China |
High Light: | 0.5mm Thickness Geotech Fabric,Black Impermeable Geotextile Fabric,0.5mm Impermeable Geotextile Fabric |

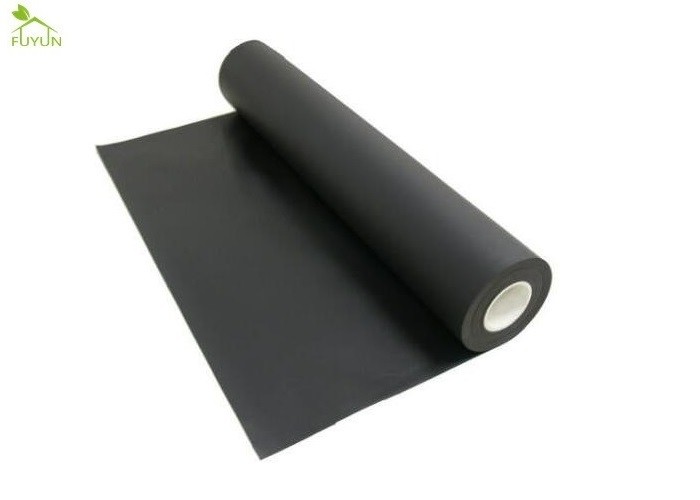

0.5mm Geomembrane Fabric Seepage Control Anti Grass Root Mining industry
Quick Detail:
Production Description:
China LDPE geomembrane manufacturers supply high quality & factory price LDPE geomembrane if you want to wholesale high quality & factory price LDPE geomembrane, welcome to consult wholesale LDPE geomembrane for sale. LDPE geomembrane produced by LDPE geomembrane manufacturers is a new geomembrane with low-density polyethylene as the base material. Its tensile strength and flexibility are better than HDPE geomembrane. The composite material which bonded together by high quality LDPE geomembrane factory price and geotextile has the characteristics of corrosion resistance, low-temperature resistance, lightweight, strong tear resistance and so on. wholesale LDPE geomembrane factory price has the characteristics of low cost and high quality. Other geotechnical impervious materials of the same kind are not comparable.
Specification:
general parameter:
Thickness | 0.15-3.0mm & customer ' s requirement |
Width | 1-8m & customer ' s requirement |
Length | 50-200m & customer ' s requirement |
Material | HDPE |
Color | Black,White,Green,Blue & customer ' s requirement |
Surface | Smooth |
Package | Double layers woven bag, and add two strap & customer ' s requirement |
Shipping Marks | support |
Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
Item | Properties | Unit | Thickness | |||||||
1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
2 | Density≧ | g/m3 | 0.94 | |||||||
3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
9 | Stress Crack Resistance | Hrs | 300 | |||||||
10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
High Pressure OIT | ≧ 400 min | |||||||||
13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
Landfill cells and caps
Wastewater treatment plants
Animal waste lagoons
Golf courses
Decorative or irrigation ponds
Irrigation reservoirs
Gas collection covers
Advantage:
Sold as roll stock only, cannot be fabricated to size.
Available in 20, 30, 40, 60 and 80 mil.
Up to a 20-year warranty.
Outstanding long-term resistance to UV radiation.
High chemical resistance.
Requires specialized welding equipment and must be installed by welding technicians.
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
