Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 0.75MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.75-2.65 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Slope Bank, Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquatic Tank, Shrimp Pond Material: LLDPE, HDPE, LDPE, Polyethylene
Function: Seepage Control, Impermeable, Protect, Temperauter Control Product Name: Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation
Thickness: 0.75mm Length: 50m, Customize
Colour: Black Origin: Made In China
High Light:

Agriculture HDPE Geomembrane Lining

,

Oxygenation HDPE Geomembrane Lining

,

Fishpond Geomembrane Lining


Product Description

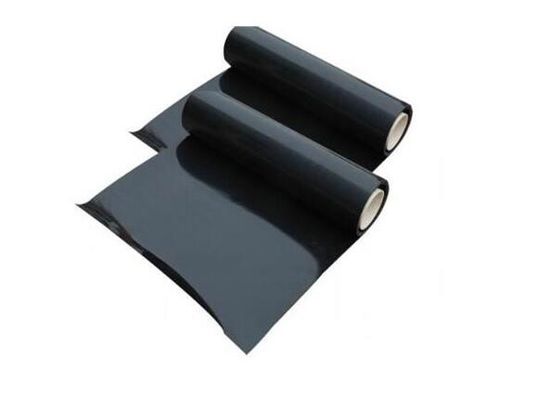

Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation



Quick Detail:

  • material: LLDPE, HDPE, EVA, PVC, polyethylene
  • length: 50m
  • width: 8m
  • thickness: 0.75mm
  • function: seepage control, impermeable, protect, temperature control
  • application: Slope Bank, Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquatic tank

Production Description:



Our high density polyethylene (HDPE) geomembranes is very low permeability synthetic membrane liner or barrier used with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system. Geomembranes are made from relativelythin continuous polymeric sheets, but they can also be made from the impregnation of geotextiles with asphalt, elastomer or polymer sprays, or as multilayered bitumen geocomposites. Continuous polymer sheet geomembranes are, by far, the most common.



Both HDPE and LLDPE are polyethylene liners, but they differ in their molecular structure. High-density polyethylene (HDPE) is more rigid and denser than linear low-density polyethylene (LLDPE). This is because HDPE has minimal branching of its polymer chains. Hallaton Environmental Linings installs both HDPE and LLDPE.



The properties of the liner are determined by its thickness and texture (smooth or textured). HDPE liners can range in thickness from 0.2mm to 2.5mm. The thickness affects how permeable, strong, flexible, and heavy the liner is. The most commonly used HDPE liners are 0.5mm and 1.0mm, since they are suitable for a variety of applications.



Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:

  • Mining. An HDPE geomembrane can prevent contamination of water and soil by providing a highly resistant barrier to chemicals produced during the extraction of precious metals.
  • Landfills. Highly resistant to hazardous chemicals HDPE has long been the lining of choice for this application. Used as either primary or secondary containment/ caps with or without GCL.
  • Irrigation Canals. To prevent water loss from seepage of water for man-made canals.
  • Tank Liners. Steel and concrete tanks are easily lined to prevent seepage loss. Also used as secondary lining under tanks in the petrochemical industries.



Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 0

Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 1



Advantage:



1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation

6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2


weight: 129g-188g/m2

Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 2





Factory Show:



Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 3



Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 4

Why Choose us?



Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 5



FAQ:



Agriculture Fishpond LDPE HDPE Geomembrane Lining Fabric Oxygenation 6
