Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 1.0MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.45-2.05 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Sanitation Project, Slope Bank, Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquatic Tank, Shrimp Pond Material: LLDPE, HDPE, LDPE, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect, Temperauter Control Product Name: Refinery, Storage Tank Seepage Control HDPE Geomembrane Lining Fabric
Thickness: 1.0mm Length: 50m, Customize
Colour: Black Origin: Made In China
High Light:

Storage Tank Geomembrane Fabric


Refinery Geomembrane Fabric


1.0mm HDPE Geomembrane Lining

Product Description

Refinery, Storage Tank Seepage Control HDPE Geomembrane Lining Fabric


Quick Detail:

  • material: LLDPE, HDPE, PVC, polyethylene
  • length: 50m
  • width: 6m
  • thickness: 1.0mm
  • function: seepage control, impermeable, protect, temperature control
  • application: Sanitation, Slope Bank, Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquatic tank

Production Description:


HDPE Geomembrane, also named as HDPE Liner, is an essentially impermeable membrane used with foundation, soil, rock earth or any other geotechnical engineering material as an integral part of a man made project, structure, or system. As the professional HDPE Liner Geomembrane manufacturer and supplier in China, we could meet all kinds of different quality standards including GRI GM13 and GM17.

According to the product appearance, the main geomembrane products including the Smooth Geomembrane HDPE liner, the Textured Geomembrane HDPE Liner, the Composite Geomembrane Liner, etc., also based upon the raw material category they could also be name as the HDPE/LDPE/LLDPE/PVC/EVA Geomembrane.

It is widely used across a variety of industries including waste containment, water containment, aquaculture, energy, mining, industrial and civil engineering, etc. The functions are including: Landscape project, Sanitation project, Water conservancy project, Mining industry, Chemical industry, Construction project, Aquaculture etc.





general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard


specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%




Environmental Protection: For example, landfills, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc.
Water Conservancy: For example, seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, etc.
Aquaculture Industry: Intensive, industrialized aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber circle protection, etc.
Gardens:Artificial lakes, rivers, reservoirs, golf pools, slope protection, greening lawns, waterproofing and moisture-proof.
Petrifaction: Chemical plant, refinery, storage tank seepage control, chemical reaction tank, sedimentation tank lining, two liner, etc.
Agriculture: Seepage control of reservoirs, application pools, reservoirs, irrigation systems, etc.
Salt Industry: Salt pond, salt film and salt pond plastic film.
HDPE Geomembrane Root Barrier is a rigid plastic sheet made from high density polyethylene (HDPE) and is placed vertically, into a trench of varying depth, to suit the depth of product selected, that will provide a barrier that mitigates penetration by potentially.
The Root Barrier should be installed adjacent to building footings or directly under the "drip line" of the tree to ensure that roots cannot propagate and potentially damage hard-scapes such as concrete and paved pathways.

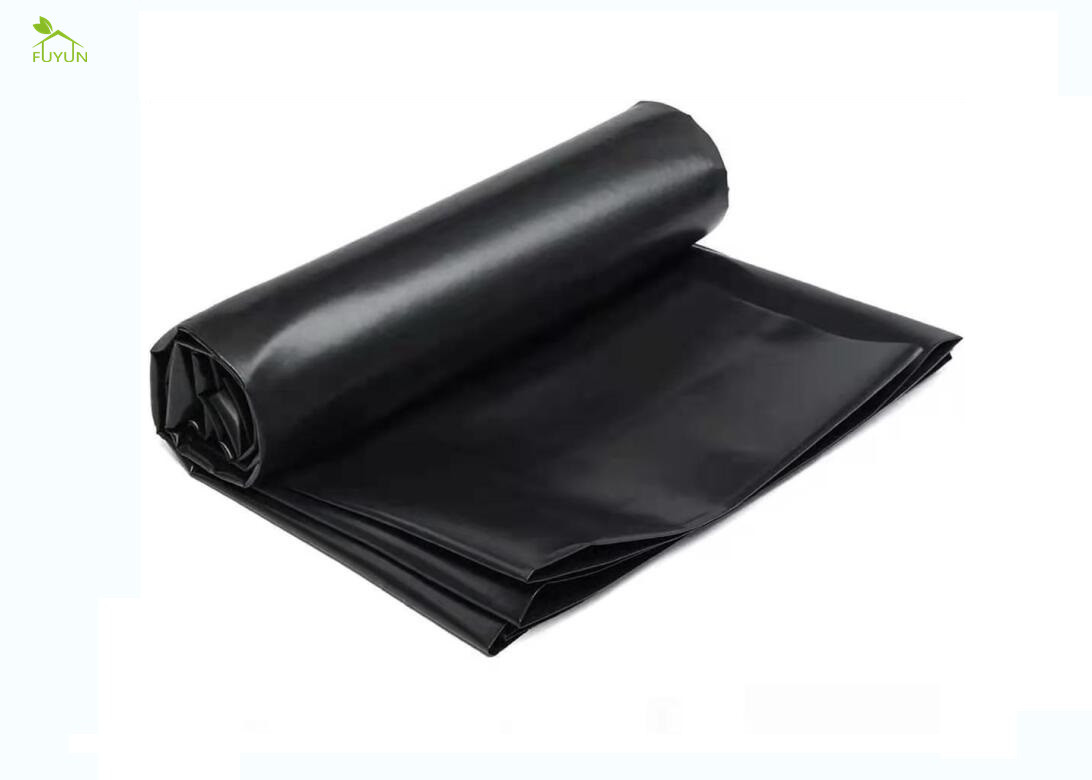

Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 0

Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 1




Good physical and mechanic performance
High tearing resistance, strong deformation adaptability
Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
Good adaptability to high and low temperature, non-toxicity, long service life
Good waterproof, drainage, anti-seepage and damp proof effects
Complete width and thickness specifications, low cost and easy installation.




Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2

weight: 129g-188g/m2

Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 2



Factory Show:


Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 3


Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 4

Why Choose us?


Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 5




Refinery Storage Tank HDPE Geomembrane Fabric Seepage Control 6
