PVC LDPE HDPE Geomembrane Welding Machine 0.25mm Thickness

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, EN, CE
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-2850 set
Packaging Details: packed in waterproof box and standard carton
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: LDPE, ECB,LLDPE, HDPE, PVC, PP
Power: 800w Product Name: Hot Air PVC LDPE HDPE Geomembrane Used In Farming Welding Machine 0.25mm Thickness
Welding Temperature: 0-450°C Voltage: 110V-220V
Welding Thickness: 0.1-1.0mm Origin: Made In China
High Light:

PVC Geomembrane Welding Machine

,

LDPE Geomembrane Welding Machine

,

0.25mm HDPE Geomembrane Welding Machine


Product Description

Hot Air PVC LDPE HDPE Geomembrane Used In Farming Welding Machine 0.25mm Thickness



Quick Detail:

machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V-220V
power: 800w
welding speed: 0.5-8 m/min

Product Description:

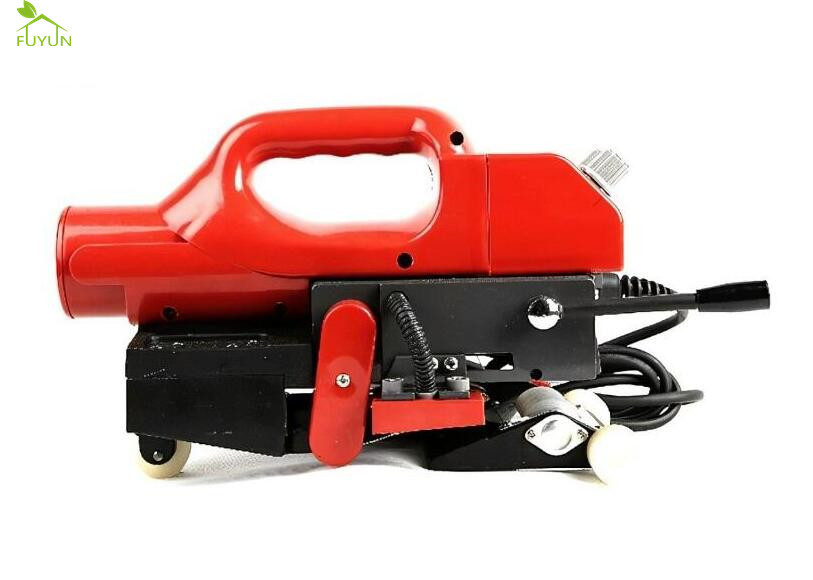

PVC LDPE HDPE Geomembrane Welding Machine 0.25mm Thickness 0

800W geomembrane welding machine is hot wedge welder for welding HDPE, LDPE, EVA, PVC, ECB, PP thermo plastic materials, which is used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.



The temperature control part of the welding machine uses automatic thermostatic control: high control accuracy and small temperature fluctuations. Speed control is driven by an automatic regulated speed circuit: DC servo motor. The output torque is large to make sure the walking smooth. Keep speed constant when climbing, vertical crawling, and road load change. The working performance of this series of welding machines is stable and is not affected by changes in external temperature and voltage. This welding machine performance is excellent, easy to operate, welding efficiency is high, welding quality is good.



Replacement of motor

Remove all screws on housing, remove front end cover to remove housing, remove the 4-M5 installation screws on the support, remove the main chain cover (14) and separate the upper and lower support. Remove the covering on the bottom of upper support and weld connection between motor and fuse holder, screw off the 2-M5 installation screws of the motor, take off motor and replace a new one. Weld back the removed wires and reassemble on the opposite sequence (Note: keep upper and lower pressure roller is parallel during assembling.).





Technical Parameters:




Voltage (V) 220V
Frequency (Hz) 50Hz/60Hz
Power 800W
Pressure rollers Silicone pressure rollers and Steel pressure rollers
Thickness of material to be welded 0.2-1.5mm
Heating temperature 20-450℃
Welding speed 0.5-6m/min
Welding width 12.5mm×2, interior cavity 12.5mm
Seam strength ≥85% base material (tensile resistant in shear direction)
Net Weight 5.0kg
Insulation class Class I



Application:


Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

PVC LDPE HDPE Geomembrane Welding Machine 0.25mm Thickness 1

Advantage:


Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.

Pressure Adjustment System
Advanced"T"style jib design and pressure regulation structure.

Pressure Roller
Special stainless steel pressure rollers with strong pressure force.

Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.



Package & Delivery:

The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.
