|Place of Origin:||Hefei,China|
|Minimum Order Quantity:||1 Set|
|Price:||USD 1000-1680 set|
|Packaging Details:||packed in waterproof box and standard carton|
|Delivery Time:||7 Days|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal|
|Supply Ability:||50 Sets per Day|
|Frequency:||50/60Hz||Application:||LDPE, EVA, PVC, PP, ECB, HDPE|
|Power:||1800w||Product Name:||110V 1800W 14KG Geomembrane Plastic HDPE LDPE PVC Welding Portable Machine For 3mm Thickness Fishpond Liner|
|Welding Thickness:||0.2 -3.0mm|
110V HDPE Geomembrane Welding Machine,
Fish pond Liner HDPE Geomembrane Welding Machine,
Fishpond liner welding machine

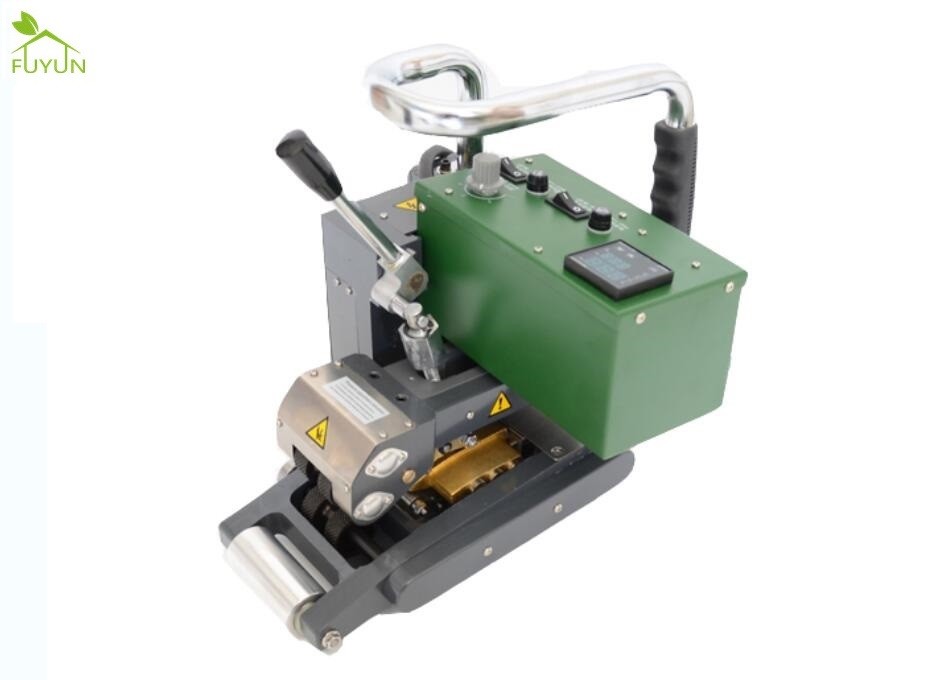

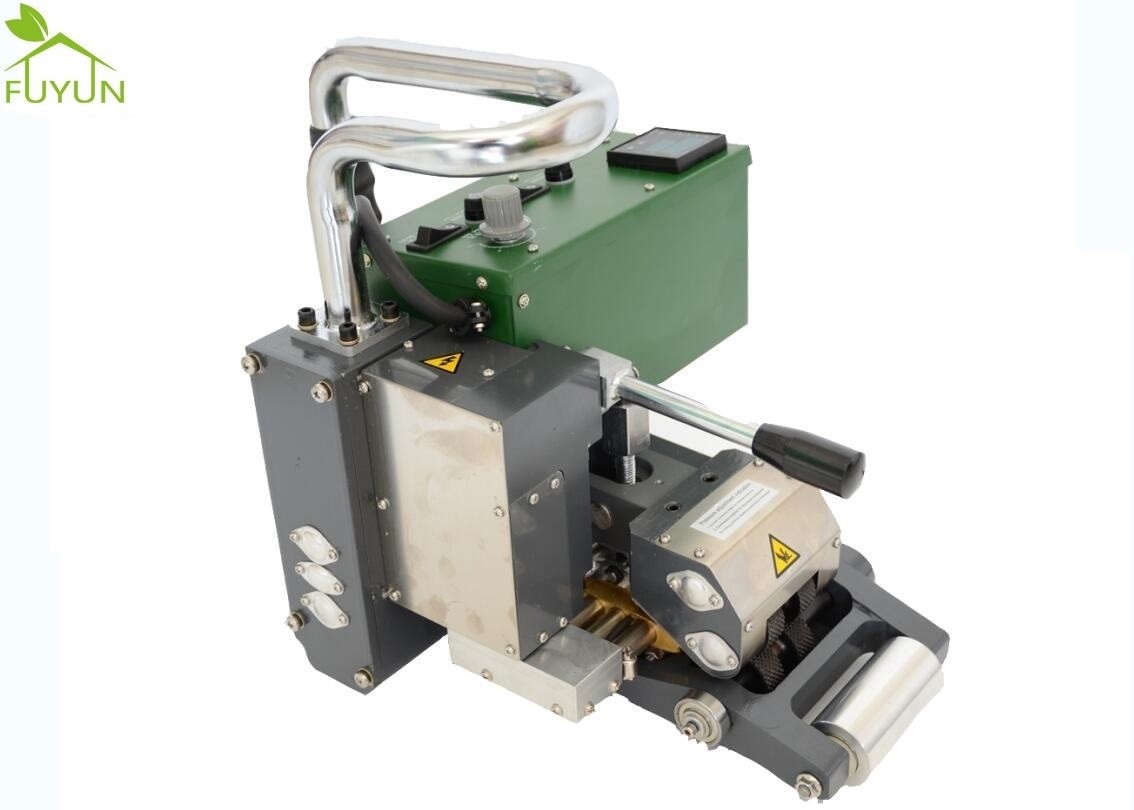

110V 1800W 14KG Geomembrane Plastic HDPE LDPE PVC Welding Portable Machine For 3mm Thickness Fishpond Liner
machine size: 340*350*360mm
welding speed: 0.5-8 m/min
Hot Air Welding Machine is our new developed products,which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE,PVC,HDPE,EVA,PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation;speed control adopts PWM automatic voltage and speed regulation circuit,driven by DC servo motor,with great output torque and the operating is stable.It can maintain a constant speed on the condition of creeping,vertical creeping and variable road load.Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating,with high welding speed and good work quality. It is extensively used in engineering projects such as expressways,tunnels,reservoirs,waterproof of construction and so on. It is ideal for geomembranes from 0.5 to 0.8 mm thick (HDPE 1.5 mm; TPO 2.0mm).The miniwelder geo2 can be used to weld fish farm and water tanks, in foundation sealing and many other industrial areas. The miniwelder geo2 distinguishes itself through its revolutionary drive technology and its intuitive use. Temperature and speed easily can be activated and deactivated by means of two buttons, and adjusted using two dials. The current process status is displayed by two LEDs.
Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.
|Welding Speed||0.5-8 m/min|
|Thickness of material||0.2-2.0 mm|
|Welding width||15 mm *2, interior cavity 20 mm|
|Overlap width||120 mm|
|Seam Strength||≥85% base material ( tensile resistant in shear direction)|
Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.
1.Contorl System:Advanced intelligent digital control system which temperature and speed readed on LCD screen.
2.Pressure Adjustment System:advanced"T"jib design and pressure regulation structure.
3.Pressure Roller:special stainless steel pressure roller with strong pressure force.
4.Hot Air Heating System:advanced hot air heating system perfects the welding quality even if corrosive material and bad working environments.
Package & Delivery:
Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
