| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | SASO, BV, ISO, GB, SONCAP |
| Model Number: | 1.25MM |
| Minimum Order Quantity: | 1680 square meters |
| Price: | USD 0.25-1.75 square meters |
| Packaging Details: | packed in roll with woven bags, pipe core and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Civil Project, Landfil, Sea Cucumber, Fishpond, Shrimp Pond, Aquaculture | Material: | LDPE, HDPE, EVA, PVC |
|---|---|---|---|
| Function: | Seepage Control, Impermeable, Protect, Cover | Product Name: | HDPE LDPE Civil Project Liners Fabric 1.25mm Impermeable Covering |
| Original: | Made In China | Thickness: | 1.25mm |
| Size: | 50*6m | Brand: | Fuyun |
| High Light: | 1.25mm Geotech Liners,Civil Project Geotech Fabric,Impermeable Geotech Liners |
||

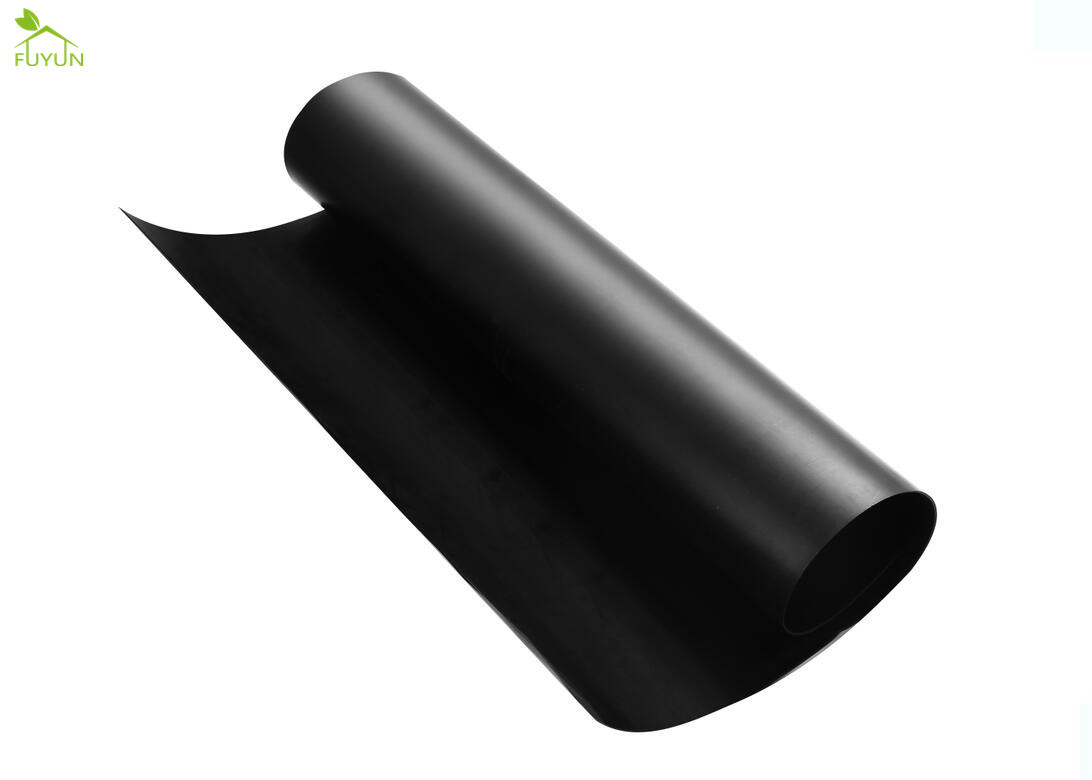

HDPE LDPE Civil Project Liners Fabric 1.25mm Impermeable Covering
Quick Detail:
Production Description:
Geomembrane is basically used in many civil projects as it works as a flat sheet designed for controlling migration of fluids and soils. Keeping in mind the set international quality standards, our Geomembrane sheets are manufactured using premium quality High Density Polypropylene material. The offered HDPE Geomembrane is made available for clients in various sizes, finishes and thicknesses as per customer’s requirement and are cost effective. We also manufacture AMS HD Sheet which is a high mass polyethylene Geomembrane manmade by Blow Film process. Made by means of resins shaped under the greatest rigorous quality panels.
We also manufacture AMS Sheet which is a high-molecular-weight Geomembrane. This sheets give Geomembrane a decent chemical compatibility along with an outstanding mechanical confrontation. We use Blow Film procedure which gives Geomembrane a stable molecular direction and its superior formulation safeguards a better flexibility and a perfect solder aptitude.
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes.
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection.
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control.
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof.
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection.
9, Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond.
Advantage:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Package:

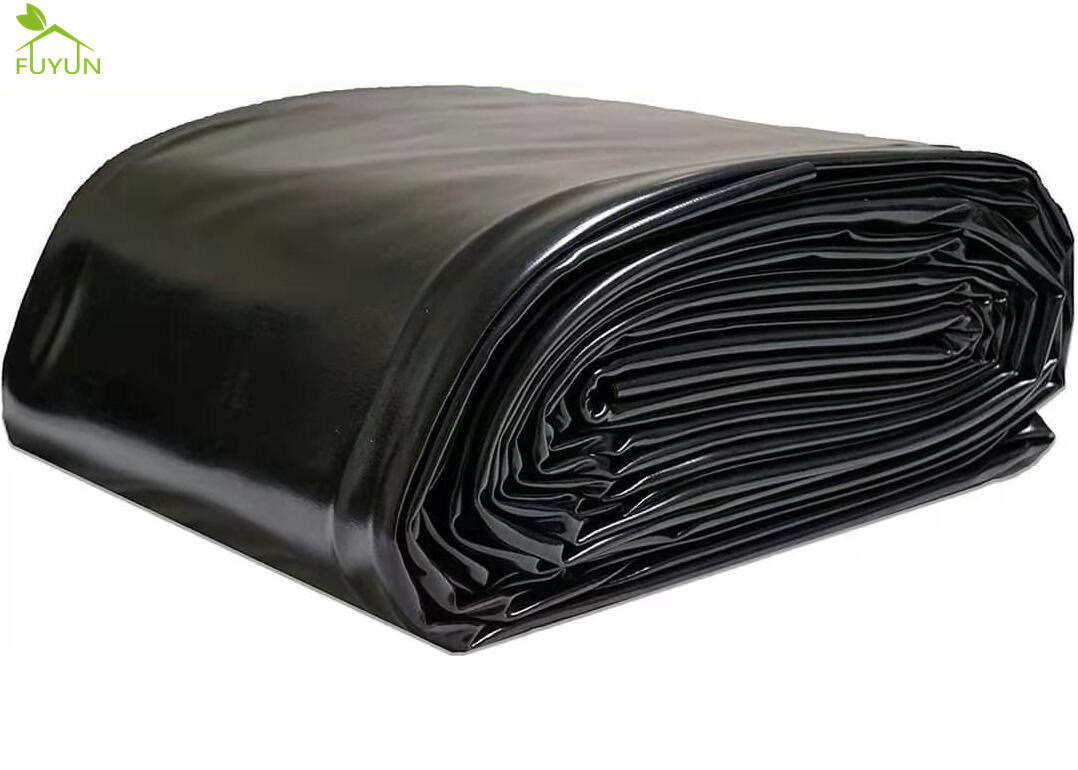

Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
