Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | SASO, BV, ISO, GB, SONCAP |
Model Number: | 1.25MM |
Minimum Order Quantity: | 2000 square meters |
Price: | USD 0.75-1.05 square meters |
Packaging Details: | packed in roll with woven bags, pipe core and belts |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 25 Tons per Day |
Application: | Mining, Water Conveyance (Canal Liners), Sea Cucumber, Fish, Aquaculture, And Shrimp Pond | Material: | Polyethylene, LLDPE, HDPE, LDPE, EVA, PVC |
---|---|---|---|
Function: | Seepage Control, Cover, Impermeable, Protect | Product Name: | 1.25mm Geomembrane Applications In Energy Seepage Control Anti Grass Root |
Thickness: | 1.25mm | Length: | 100m |
Colour: | Black, White | Origin: | Made In China |
High Light: | 1.25mm Geomembrane Fabric,Anti Grass Root Geomembrane Fabric,Black Colour Geotech Fabric |

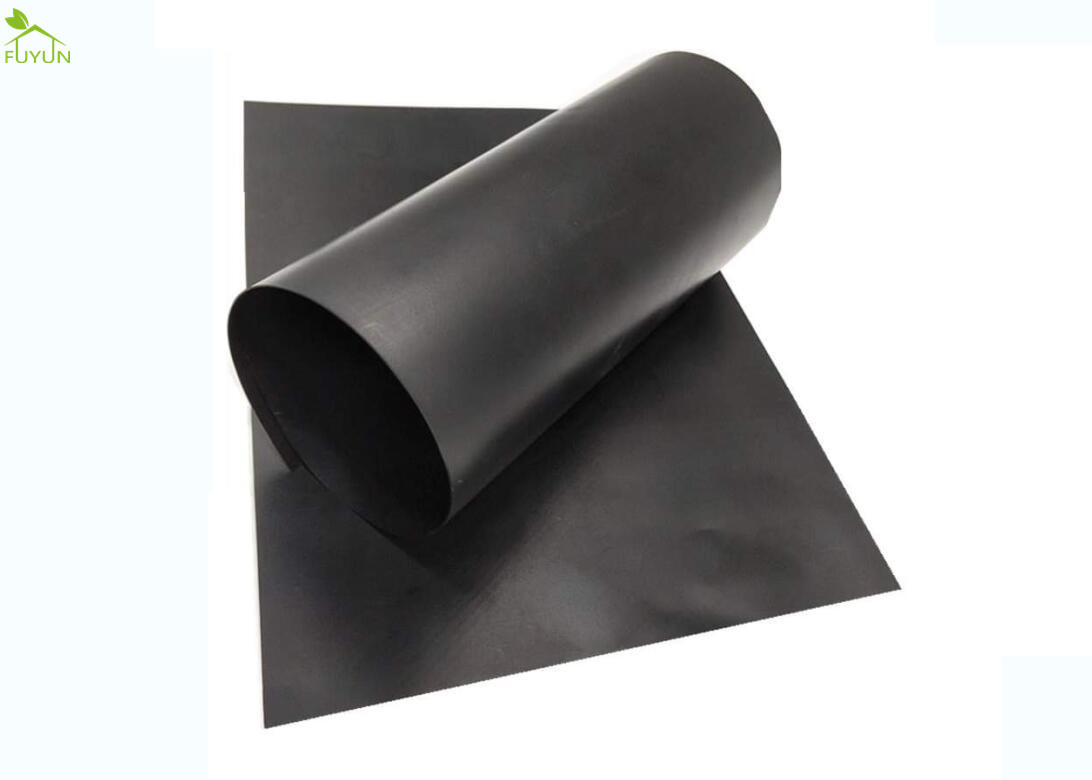

1.25mm Geomembrane Applications In Energy Seepage Control Anti Grass Root
Quick Detail:
Production Description:
The process of burning coal for energy purposes produces many by-products known collectively as coal ash. Coal ash is also commonly defined as Coal Combustion Residue (CCR), Coal Burning Waste (left), Coal Combustion Products (CCP), or Coal Combustion By-Products (CCB). CCCR includes fly ash, slag, flue gas desulfurization (FGD) products, and boiler slag. CCR is one of the second largest waste streams after municipal solid waste. In the past, most CCR pits, or reservoirs, or surface landfills were built longer than existing power plants worldwide. Much serious health and safety issues have been reported regarding CCR storage, and proper design using geomembranes at the CCR facility reduces the potential for groundwater contamination and future costs. HDPE membranes are used in many CCR filtration projects, helping to provide the safest and most economical CCR treatment.
Specification:
general parameter:
Thickness | 0.15-3.0mm & customer ' s requirement |
Width | 1-8m & customer ' s requirement |
Length | 50-200m & customer ' s requirement |
Material | HDPE |
Color | Black,White,Green,Blue & customer ' s requirement |
Surface | Smooth |
Package | Double layers woven bag, and add two strap & customer ' s requirement |
Shipping Marks | support |
Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
Item | Properties | Unit | Thickness | |||||||
1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
2 | Density≧ | g/m3 | 0.94 | |||||||
3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
9 | Stress Crack Resistance | Hrs | 300 | |||||||
10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
High Pressure OIT | ≧ 400 min | |||||||||
13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
Landfill cells and caps
Wastewater treatment plants
Animal waste lagoons
Golf courses
Decorative or irrigation ponds
Irrigation reservoirs
Gas collection covers
Advantage:
Sold as roll stock only, cannot be fabricated to size.
Available in 20, 30, 40, 60 and 80 mil.
Up to a 20-year warranty.
Outstanding long-term resistance to UV radiation.
High chemical resistance.
Requires specialized welding equipment and must be installed by welding technicians.

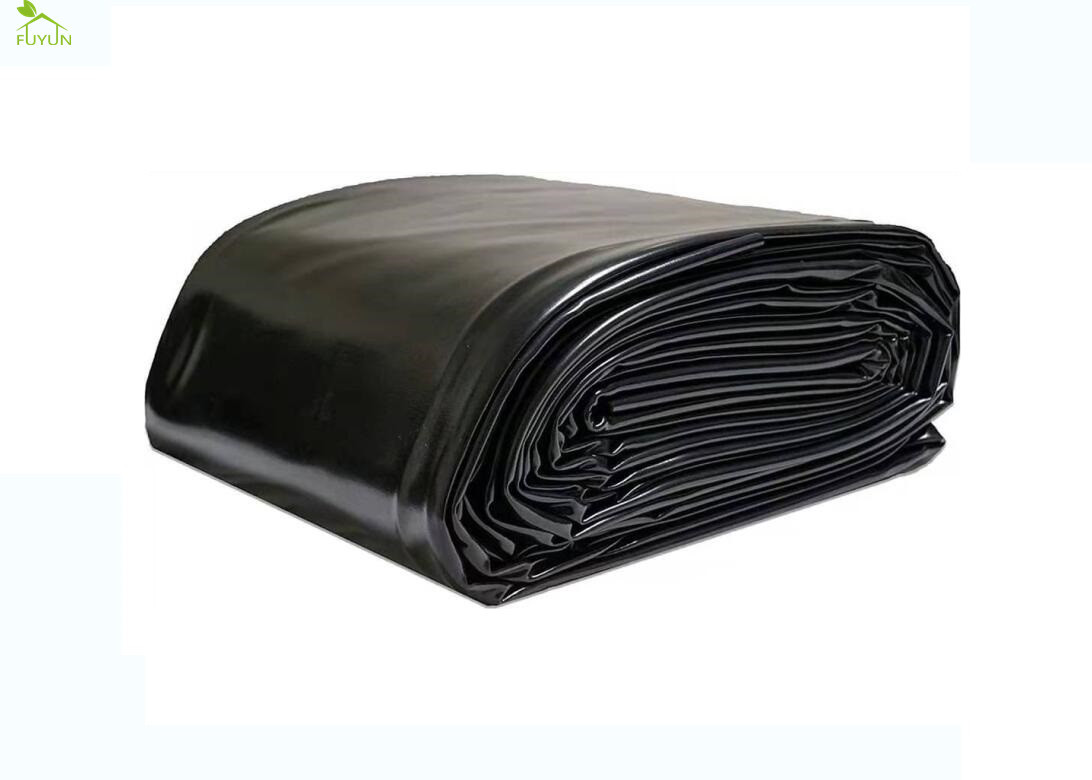

Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
