| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, EN, CE |
| Model Number: | SW-800 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 1000-2550 set |
| Packaging Details: | packed in waterproof box and standard carton |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50 Sets per Day |
| Frequency: | 50/60Hz | Application: | LDPE, EVA, ECB,LLDPE, HDPE, PVC, PP |
|---|---|---|---|
| Power: | 800w | Product Name: | Hot Air PVC Tailing Pond LDPE HDPE Geomembrane Welder Welding Machine 0.55mm Thickness |
| Welding Temperature: | 0-450°C | Voltage: | 110V-220V |
| Welding Thickness: | 0.1-1.0mm | Origin: | Made In China |
| High Light: | Hot Air Pond Liner Welding Machine,0.55mm Thickness Hdpe Wedge Welder,0.55mm HDPE Geomembrane Welding Machine |
||

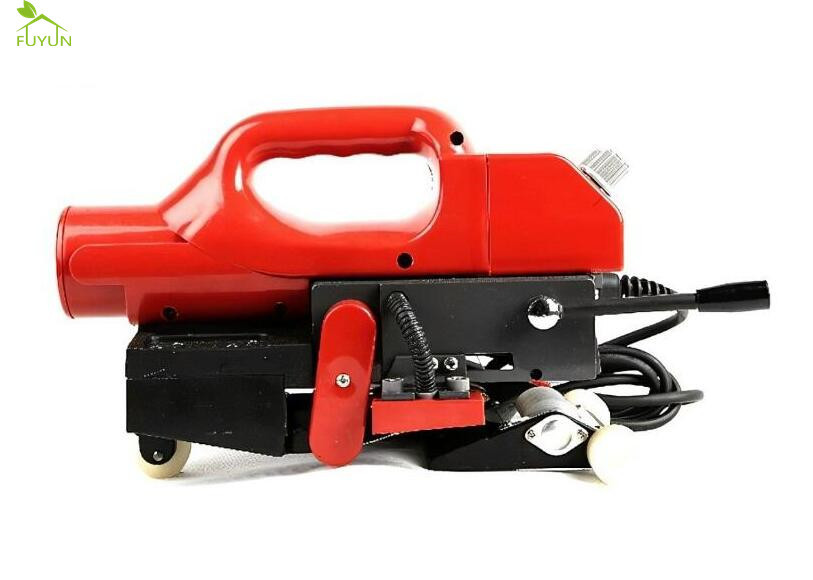

Hot Air PVC Tailing Pond LDPE HDPE Geomembrane Welder Welding Machine 0.55mm Thickness
Quick Detail:
machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V-220V
power: 800w
welding speed: 0.5-8 m/min
Product Description:
geomembrane welding machine is high quality automatic hot air welding machine, it is of new design and technology, which can weld geomembrane of various thicknesses and are applicable for welding material such as PE, LDPE, HDPE, EVA, PP and the like. JIT-800 is allowed to be sold before strict inspection. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on. The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality.It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Technical Parameters:
| Voltage (V) | 220V |
| Frequency (Hz) | 50Hz/60Hz |
| Power | 800W |
| Pressure rollers | Silicone pressure rollers and Steel pressure rollers |
| Thickness of material to be welded | 0.2-1.5mm |
| Heating temperature | 20-450℃ |
| Welding speed | 0.5-6m/min |
| Welding width | 12.5mm×2, interior cavity 12.5mm |
| Seam strength | ≥85% base material (tensile resistant in shear direction) |
| Net Weight | 5.0kg |
| Insulation class | Class I |
Application:
Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.
Advantage:
Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.
Pressure Adjustment System
Advanced"T"style jib design and pressure regulation structure.
Pressure Roller
Special stainless steel pressure rollers with strong pressure force.
Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.

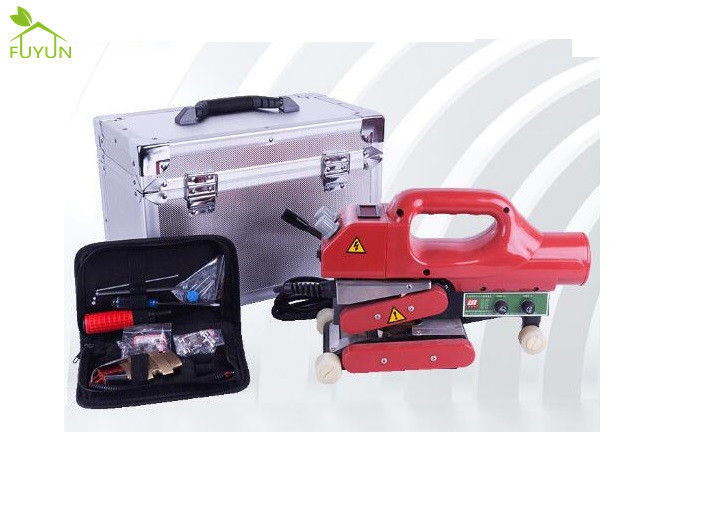

Package & Delivery:
The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.
