HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 1.0MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.75-2.35 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Slope Bank, Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquatic Tank, Shrimp Pond Material: LLDPE, HDPE, LDPE, EVA, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect, Temperauter Control Product Name: HDPE Geomembrane Lining Fabric Temperature Water Control Ponds Slope Bank Anti Erosion
Thickness: 1.0mm Length: 100m, Customize
Colour: Black Origin: Made In China
High Light:

Slope Bank HDPE Geomembrane Lining

,

Anti Erosion HDPE Geomembrane Lining

,

1.0mm Thickness Geotech Fabric


Product Description

HDPE Geomembrane Lining Fabric Temperature Water Control Ponds Slope Bank Anti Erosion



Quick Detail:

  • material: LLDPE, HDPE, EVA, PVC, polyethylene
  • length: 50m
  • width: 8m
  • thickness: 1.0mm
  • function: seepage control, impermeable, protect, temperature control
  • application: Slope Bank, Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquatic tank

Production Description:



Our high density polyethylene (HDPE) geomembranes is very low permeability synthetic membrane liner or barrier used with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system. Geomembranes are made from relatively
thin continuous polymeric sheets, but they can also be made from the impregnation of geotextiles with asphalt, elastomer or polymer sprays, or as multilayered bitumen geocomposites. Continuous polymer sheet geomembranes are, by far, the most common.
It provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.





Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:

  • Mining. An HDPE geomembrane can prevent contamination of water and soil by providing a highly resistant barrier to chemicals produced during the extraction of precious metals.
  • Landfills. Highly resistant to hazardous chemicals HDPE has long been the lining of choice for this application. Used as either primary or secondary containment/ caps with or without GCL.
  • Irrigation Canals. To prevent water loss from seepage of water for man-made canals.
  • Tank Liners. Steel and concrete tanks are easily lined to prevent seepage loss. Also used as secondary lining under tanks in the petrochemical industries.

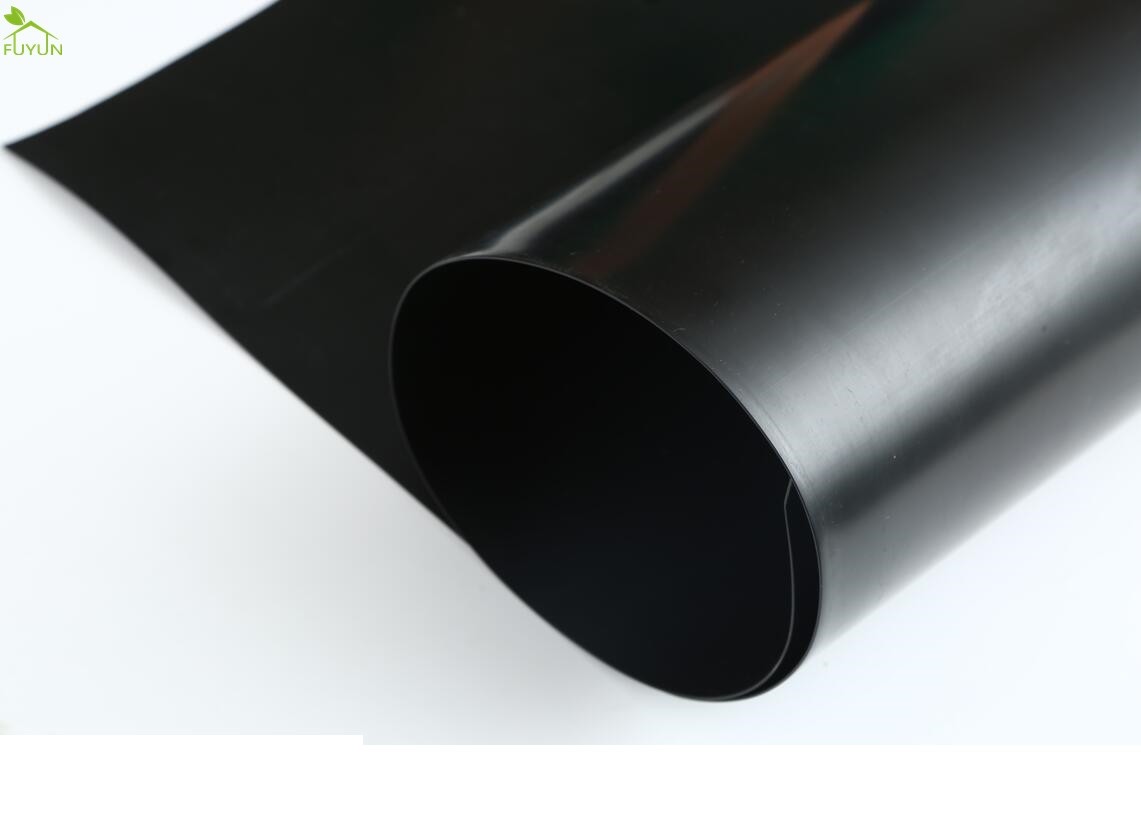

HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 0

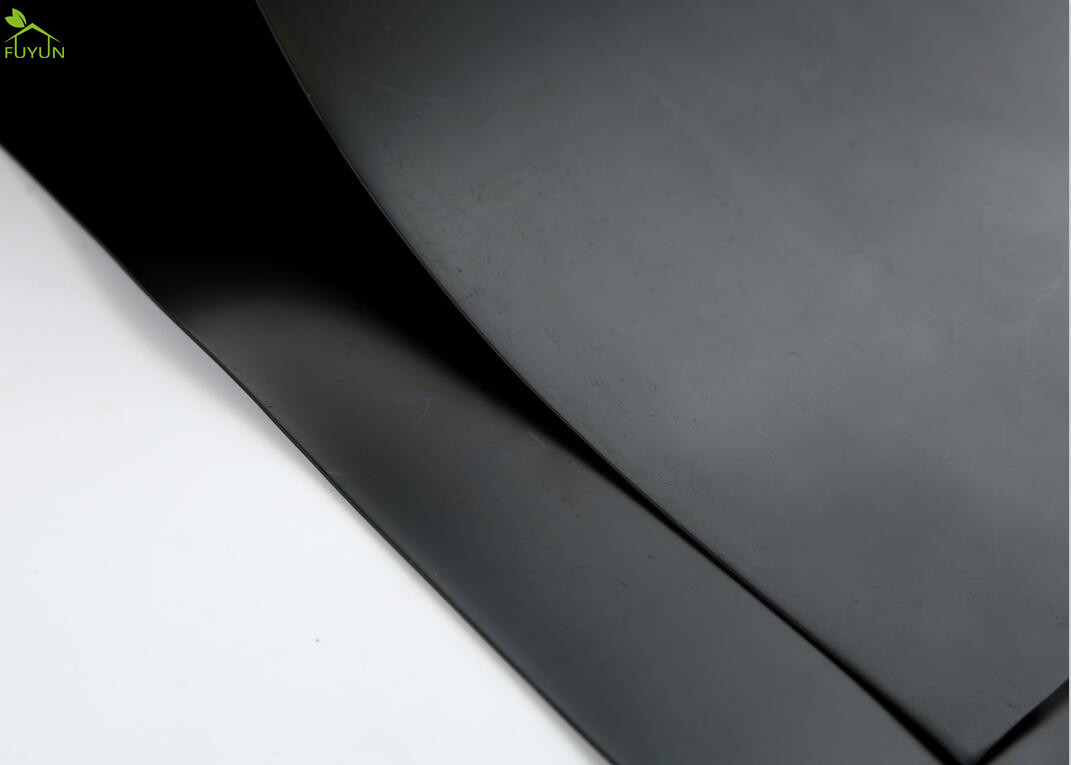

HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 1



Advantage:



1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation

6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2


weight: 129g-188g/m2

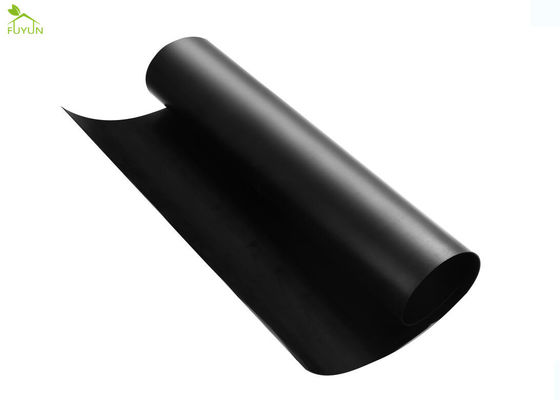

HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 2





Factory Show:



HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 3



HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 4

Why Choose us?



HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 5



FAQ:



HDPE Geomembrane Lining Fabric For Slope Bank Anti Erosion 6
