| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | SASO, BV, ISO, GB, SONCAP |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 1680 square meters |
| Price: | USD 0.25-1.85 square meters |
| Packaging Details: | packed in roll with woven bags, pipe core and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Landfil, Sea Cucumber, Fishpond, Shrimp Pond, Aquaculture | Material: | LLDPE, LDPE, HDPE, EVA, PVC, Polyethylene |
|---|---|---|---|
| Function: | Seepage Control, Impermeable, Protect, Cover | Product Name: | HDPE LDPE LLDPE Fish Friendly Pond Liners 1.5mm Impermeable Anti Seepage |
| Original: | Made In China | Thickness: | 1.5mm |
| Size: | 50*6m | Brand: | Fuyun |
| High Light: | Anti Seepage HDPE Geomembrana,Impermeable Pond Liners,HDPE Geomembrane Anti Seepage |
||

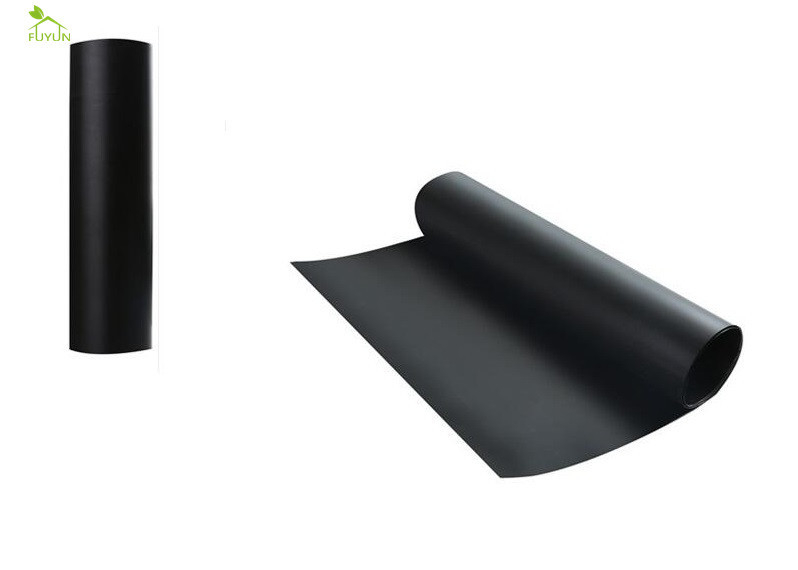

HDPE LDPE LLDPE Fish Friendly Pond Koi Liners 1.0mm Impermeable Anti Seepage
HDPE LDPE LLDPE Fish Friendly Pond Liners 1.5mm Impermeable Anti Seepage
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component being made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond,solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
Reliable smooth polyethylene HDPE liners are used for hazardous as well as non-hazardous containment applications for numerous industrial, municipal, agricultural, and decorative applications. HDPE Liner Data Sheets (PDF) - HDPE 300 -- 3 MIL 2 Layer Cross Laminated White HDPE... Fumigation, Rail Car Covers and Liners, Product Wrapping, Underslab Vapor Retarder Radon Retarder HDPE 300 is produced by cross laminating two sheets of high density polyethylene, creating additional strength for optimum puncture and tear resistance. This unique process aligns the molecular structure of the high density polyethylene which intensifies the sheet’s resilience lengthwise. By laminating these two layers of stretched film across the bias, the sheet has equal strength in all directions
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
1, Environmental protection & sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes.
2, Water conservancy projects: such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection.
3, Municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control.
4, Polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof.
5, Petrochemical, chemical plants & refineries: storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining.
6, Mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, Agriculture: reservoir, the drinking pool, waste treatment, seepage of irrigation system;
8, Aquaculture: factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection.
9,Salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond.
Advantage:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
