| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | SASO, BV, ISO, GB, SONCAP |
| Model Number: | 1.0MM |
| Minimum Order Quantity: | 2000 square meters |
| Price: | USD 0.75-1.15 square meters |
| Packaging Details: | packed in roll with woven bags, pipe core and belts |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Water Conveyance (Canal Liners), Sea Cucumber, Fish, Aquaculture, And Shrimp Pond | Material: | Polyethylene, LLDPE, HDPE, LDPE, EVA, PVC |
|---|---|---|---|
| Function: | Seepage Control, Cover, Impermeable, Protect | Product Name: | Top Sale 0.35mm Aquaculture Lining Fishpond Shrimp Seepage Control Anti Grass Root |
| Thickness: | 0.35mm | Length: | 100m |
| Colour: | Black, White | Origin: | Made In China |
| High Light: | 0.35mm Aquaculture Pond Liner,Seepage Control Aquaculture Pond Liner,Geotech Fabric Anti Grass Root |
||

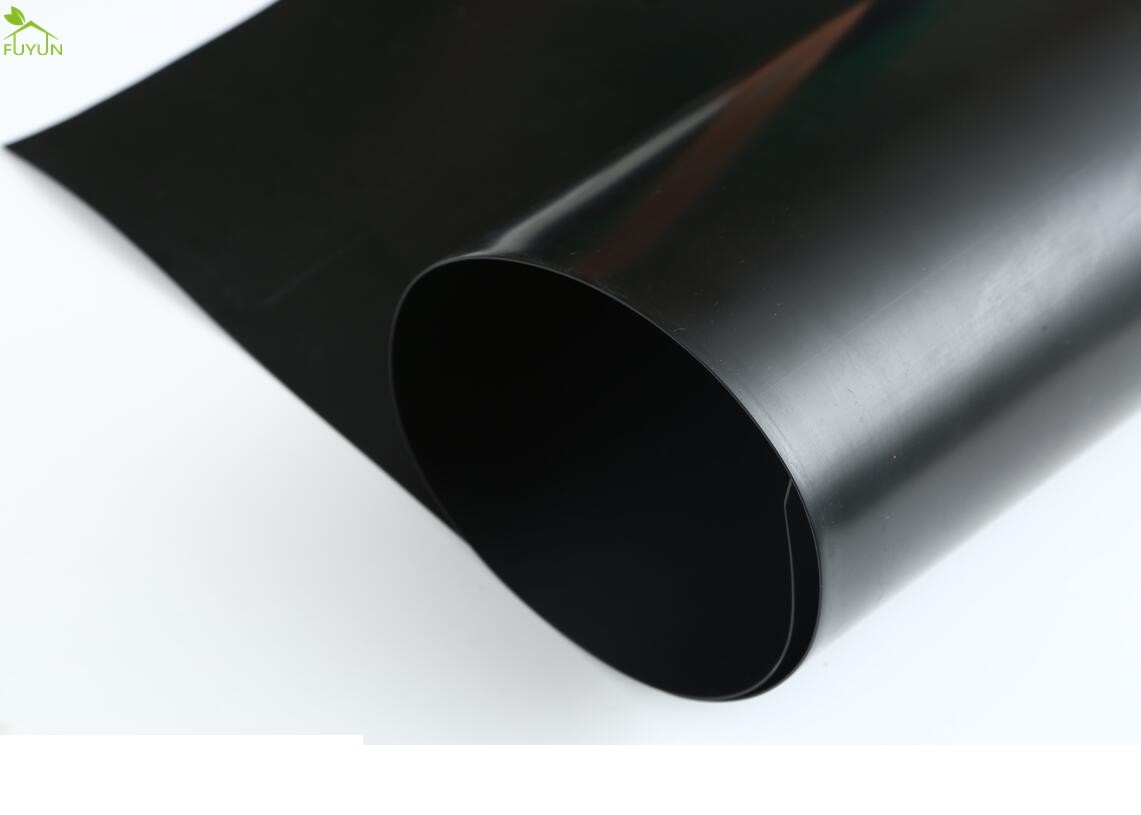

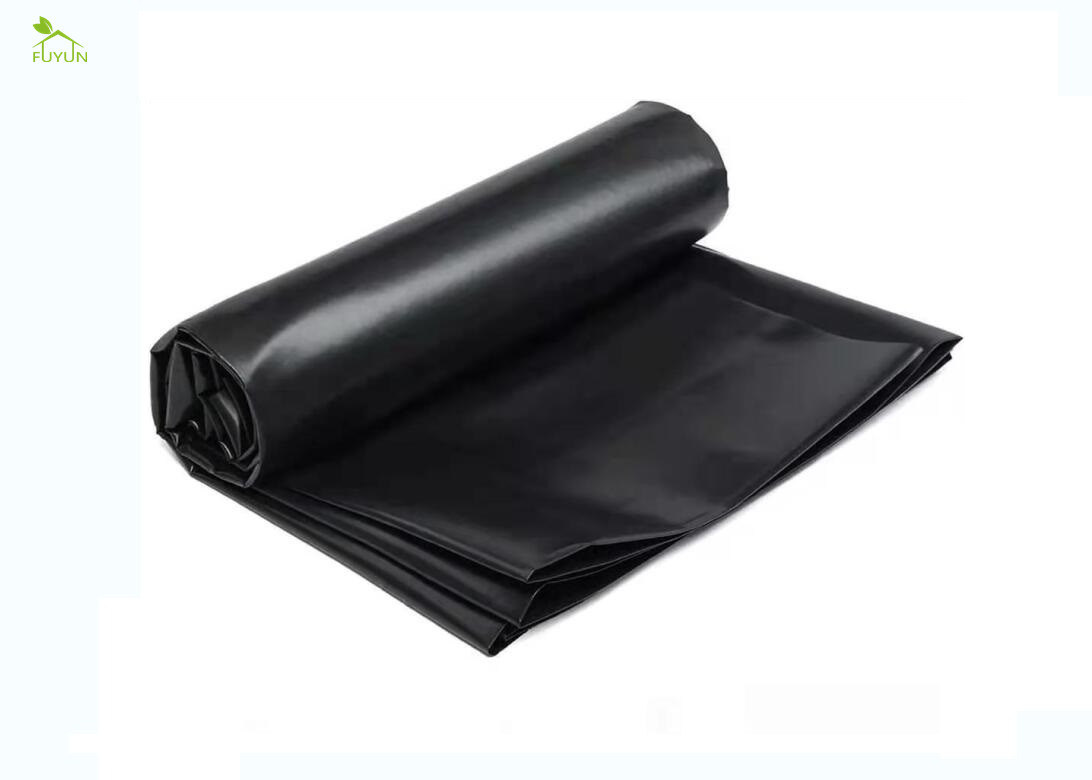

Top Sale 0.35mm Aquaculture Lining Fishpond Shrimp Seepage Control Anti Grass Root
1.0mm Aquaculture Lining Fishpond Shrimp Seepage Control Anti Grass Root
Quick Detail:
Production Description:
The thickness range of HDPE geomembrane of our brand is from 0.20mm to 3.0mm.The larger thickness, the better properties, the longer lifespan. The thickness you need depends on your application scope. For example, according to our experiences, for aquaculture (fish farming pond or shrimp pond), usually use 0.35mm,0.5mm or 0.75mm thickness HDPE geomembrane; for landfill site, usually use 1.0mm,1.5mm or 2.0mm HDPE geomembrane.
Key benefits of HDPE Geomembrane Pond Liner for Shrimp or Fish Pond.
------------------------
1. The use of HDPE geomembrane liner can reduce the loss of oxygen caused by infiltration into the soil.
2. Pond liner inhibit growth of algae in the bottom and is easy to clean pond bottom.
3. There will be have no soil mixed waste and sludge at the bottom of the aquaculture ponds.
4. During intensive and semiintensive farming water will not be turbid( for soil) due to operation of aerators and movement of fishes or shrimps.
5. Fish and shrimps can be efficiently harvested using seine net or dewatering the pond.
6. The pond liner can protect slopes and banks from erosion.
7. The geoemembrane lining system helps easy removal of sediment and waste products using bottom cleaning system
Specification:
general parameter:
| Thickness | 0.15-3.0mm & customer ' s requirement |
| Width | 1-8m & customer ' s requirement |
| Length | 50-200m & customer ' s requirement |
| Material | HDPE |
| Color | Black,White,Green,Blue & customer ' s requirement |
| Surface | Smooth |
| Package | Double layers woven bag, and add two strap & customer ' s requirement |
| Shipping Marks | support |
| Production Standard | GRI,ASTM,GB or other standard |
specific parameter:
| Item | Properties | Unit | Thickness | |||||||
| 1 | Thickness | mm | 0.25 | 0.35 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| 2 | Density≧ | g/m3 | 0.94 | |||||||
| 3 | Stretch Yield Strength (horiz & vet)≧ | N/mm | 3.75 | 5 | 7.5 | 11 | 15 | 18 | 22 | 29 |
| 4 | Stretch Break Strength (horiz & vet)≧ | N/mm | 6.75 | 13.5 | 19 | 20 | 27 | 33 | 40 | 53 |
| 5 | Yield Elongation (horiz & vet)≧ | % | 12 | |||||||
| 6 | Break elongation (horiz & vet)≧ | % | 700 | |||||||
| 7 | Angle Tear Strength (horiz & vet)≧ | N | 31.25 | 45 | 62.5 | 93 | 125 | 156 | 187 | 249 |
| 8 | Puncture Strength | N | 80 | 150 | 160 | 240 | 320 | 400 | 480 | 640 |
| 9 | Stress Crack Resistance | Hrs | 300 | |||||||
| 10 | Carbon Black Content (range) | % | 2.0-3.0 | |||||||
| 11 | Carbon Black Dispersion | / | not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed | |||||||
| 12 | Oxidation Induction Time(OIT) | Standard OIT | ≧ 100 min | |||||||
| High Pressure OIT | ≧ 400 min | |||||||||
| 13 | Thermal Aging at 85℃ | Standard OIT(min.ave.) retained after 90 days | 55% | |||||||
| High Pressure OIT(min.ave.) retained after 90 days | 80% | |||||||||
| 14 | UV Resistance | Standard OIT (min.ave.) | 50% | |||||||
| High Pressure OIT (min.ave.) retained after 1600 hrs | 50% | |||||||||
Application:
Advantage:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
