HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 0.7MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.75-1.85 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquatic Tank, Shrimp Pond Material: LLDPE, HDPE, LDPE, EVA, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect, Temperauter Control Product Name: HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage Pond
Thickness: 0.7mm Length: 100m, Customize
Colour: Black Origin: Made In China
High Light:

HDPE Geomembrane Lining Fabric


Customize Geomembrane Fabric


Geomembrane Lining Anti Seepage

Product Description

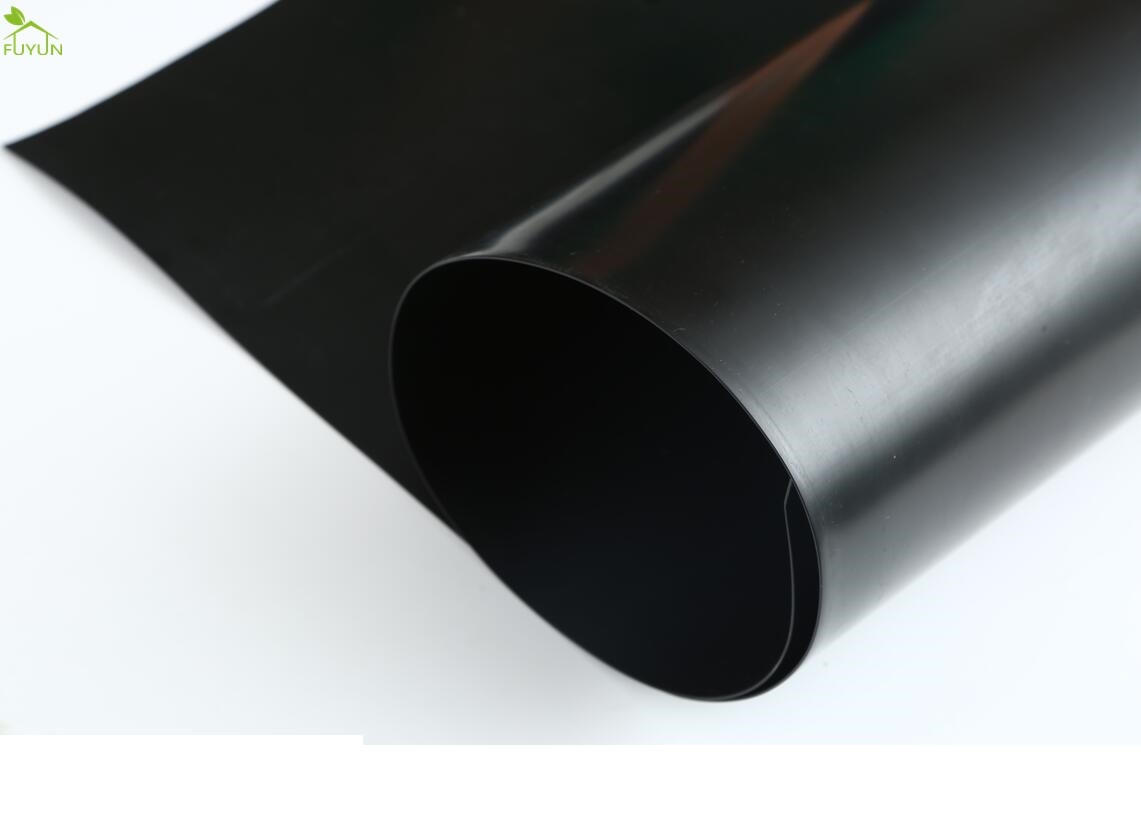

HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage Pond


Quick Detail:

  • material: LLDPE, HDPE, EVA, PVC, polyethylene
  • length: 50m
  • width: 6m
  • thickness:  0.7mm
  • function: seepage control, impermeable, protect, temperature control
  • application: Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquatic tank

Production Description:


The HDPE Geomembrane Liner is 100%waterproof products. The raw material is high-density polyethylene and carbon black, mixed in three lay co-extrusion blowing machines, our raw materials are imported from Saudi Arabia. The anti-seepage HDPE geomembrane Liner has an anti-seepage effect unmatched by ordinary waterproof materials. Anti-seepage HDPE Geomembrane Liner has high tensile mechanical properties. Its excellent elasticity and deformability make it very suitable for the expansion or contraction of the base surface. overcome the uneven settlement of the base surface. It has excellent chemical stability and is used in sewage treatment, chemical reaction tanks, and landfills. Resistant to high and low temperatures, asphalt, oil and tar, acid, alkali, salt, and corrosion of more than 80 strong acid and alkali chemical media. It has good mechanical strength, tensile strength at break 28Mpa, elongation at break 700%. The materials used in the anti-seepage membrane are all non-toxic and friendly. The anti-seepage principle is ordinary physical changes and does not produce any harmful substances. It is the best choice for environmental protection, aquaculture, and drinking water pond liner.


Key benefits of HDPE Geomembrane Pond Liner for Shrimp or Fish Pond.
1. The use of HDPE geomembrane liner can reduce the loss of oxygen caused by infiltration into the soil.
2. Pond liner inhibit growth of algae in the bottom and is easy to clean pond bottom.
3. There will be have no soil mixed waste and sludge at the bottom of the aquaculture ponds.
4. During intensive and semiintensive farming water will not be turbid( for soil) due to operation of aerators and movement of fishes or shrimps.
5. Fish and shrimps can be efficiently harvested using seine net or dewatering the pond.
6. The pond liner can protect slopes and banks from erosion.
7. The geoemembrane lining system helps easy removal of sediment and waste products using bottom cleaning system through a central drainage system or using a submersible water pump in the central pit of the pond.
8. Reduces initial soil excavation cost and annual pond maintenance cost.
9 . After dewatering bottom can easily be cleaned using a high pressure submersible water pump.
10. Bacterial contamination from the soil is stopped.
11. Use of probiotics and chemicals is very effective.
12. Bottom lining helps effective maintaining of biofloc in the tanks and also in biofloc system of aquaculture and in bottom clean system. You can never maintain effective biofloc in soil ponds.
13. Maintaining biosecurity is easy and effective.
14. Soil chemicals can not change water quality.





general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard


specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%




  • Mining. An HDPE geomembrane can prevent contamination of water and soil by providing a highly resistant barrier to chemicals produced during the extraction of precious metals.
  • Landfills. Highly resistant to hazardous chemicals HDPE has long been the lining of choice for this application. Used as either primary or secondary containment/ caps with or without GCL.
  • Irrigation Canals. To prevent water loss from seepage of water for man-made canals.
  • Tank Liners. Steel and concrete tanks are easily lined to prevent seepage loss. Also used as secondary lining under tanks in the petrochemical industries.


HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 0

HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 1




1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation

6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction




Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2

weight: 129g-188g/m2

HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 2



Factory Show:


HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 3


HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 4

Why Choose us?


HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 5




HDPE Geomembrane Lining Fabric Temperature Water Control Anti Seepage 6
