Geomembrane Lining Seepage Control High Bearing Capacity

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 0.7MM
Minimum Order Quantity: 2000 square meters
Price: USD 0.75-1.35 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquaculture, Shrimp Pond Material: LLDPE, HDPE, LDPE, EVA, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect Product Name: Containment Purpose Tank Liner Geomembrane Lining Seepage Control High Bearing Capacity
Thickness: 0.7mm Length: 200m, Customize
Colour: Black Origin: Made In China
High Light:

0.7mm Thickness Geotech Fabric

,

Geomembrane Lining Seepage Control

,

Geomembrane Lining High Bearing Capacity


Product Description

Containment Purpose Tank Liner Geomembrane Lining Seepage Control High Bearing Capacity



Quick Detail:

  • material: LLDPE, HDPE, EVA, PVC, polyethylene
  • length: 200m
  • width: 6m
  • thickness:  0.7mm
  • function: seepage control, impermeable, protect
  • application: Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquaculture

Production Description:



What many think is simply a pile of trash is actually a complex system designed to prevent waste products from leaching into groundwater, lakes and streams. It depends on a system of barriers that often includes synthetic geomembranes for primary and secondary leachate containment and for a cover over a closed landfill. Because it stands between thousands of tons of mixed waste and terrain that may be uneven and rough, a liner geomembrane must have excellent tear strength and flexibility. Given the strange brew of materials that leach from landfill waste, the liner must also be resistant to a broad spectrum of chemicals. Liners and covers must also be resistant to thermal, UV and biological degradation.



How to install in ponds lining and how to use in Biofloc system ?

Ponds:
Pond liners used for lining need to be protected from sharp objects (for example, stones) below the liner and from being punctured by any objects in the water body. Protection can be provided with layers of sand, geotextiles (particularly needle-punched nonwovens) and other materials. Pond liners are manufactured in rolls or accordion-folded on pallets. When deployed in the field their edges and ends are overlapped and seamed together. Sealing is done through thermal fusion, solvents and adhesives.

The edge of the pond liner is generally rolled over the top of the soil slope and secured in an anchor trench or it can be fixed to a vertical wall made of wood or concrete.

Use in Biofloc tank:
Usually circular tanks are good as biofloc tank. To make a circular biofloc tank decide desired water volume of the tank excluding free margin above water level. Use the formula to know your required tank volume or geomembrane polythene circular tank.

πr2x depth of the tank. π is = 3.14, r is radius of the tank.
Now if you know the dia ( double of radius) then make the tanks adding additional 20 cm height above water level plus 30-40 cm to fold and fix the edges outside the tank. This tank will have to be fixed in an iron frame of similar dia and height.The tank should have a central outlet for removing sludge, if required.



Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:

  • Mining. An HDPE geomembrane can prevent contamination of water and soil by providing a highly resistant barrier to chemicals produced during the extraction of precious metals.
  • Landfills. Highly resistant to hazardous chemicals HDPE has long been the lining of choice for this application. Used as either primary or secondary containment/ caps with or without GCL.
  • Irrigation Canals. To prevent water loss from seepage of water for man-made canals.
  • Tank Liners. Steel and concrete tanks are easily lined to prevent seepage loss. Also used as secondary lining under tanks in the petrochemical industries.

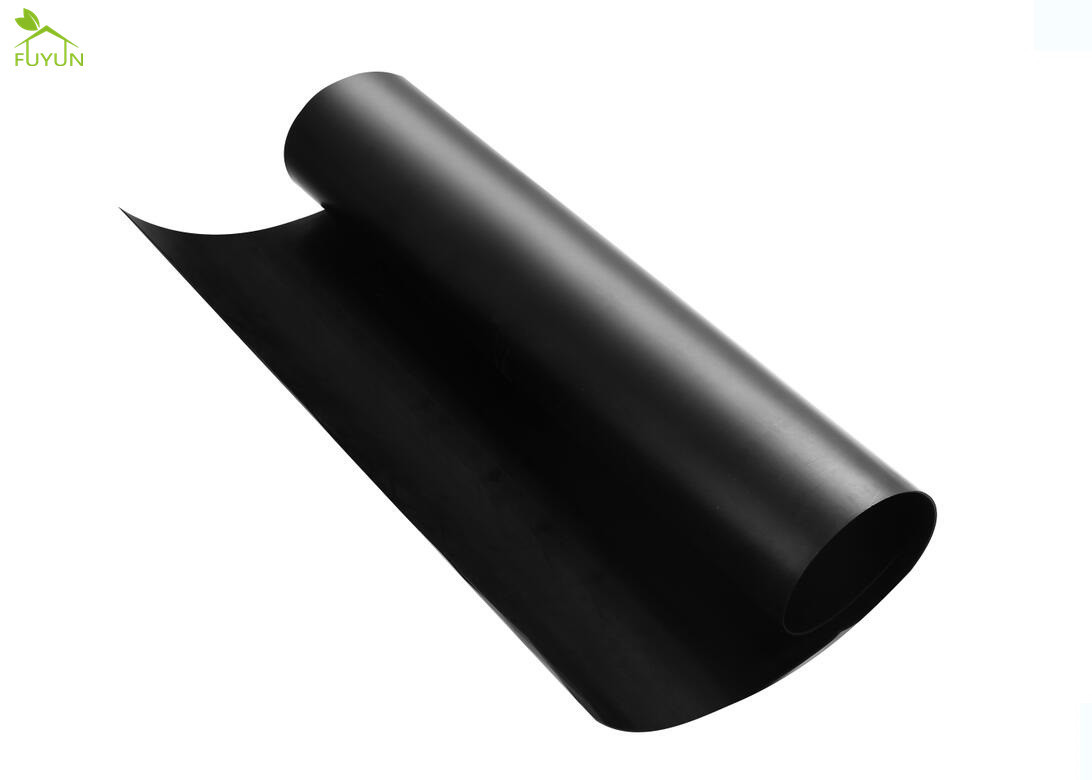

Geomembrane Lining Seepage Control High Bearing Capacity 0

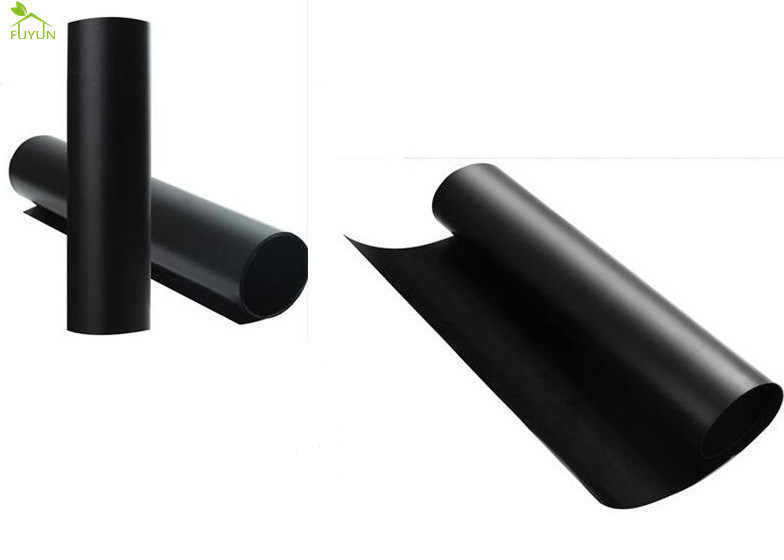

Geomembrane Lining Seepage Control High Bearing Capacity 1



Advantage:



1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation

6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2


weight: 129g-188g/m2

Geomembrane Lining Seepage Control High Bearing Capacity 2
