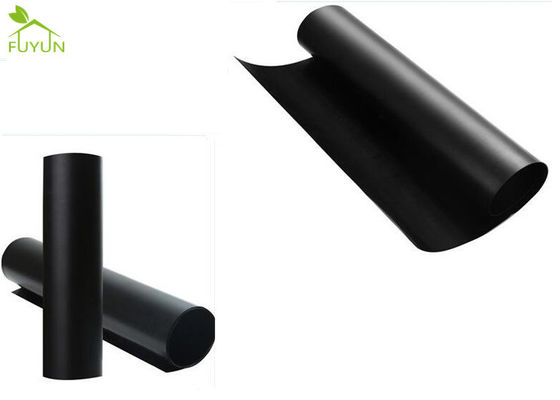

Geomembrane Lining Seepage Control High Bearing Capacity

Geomembrane Lining Seepage Control High Bearing Capacity

Geomembrane Lining Seepage Control High Bearing Capacity
video
Geomembrane Lining Seepage Control High Bearing Capacity
Product Details:
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: SASO, BV, ISO, GB, SONCAP
Model Number: 0.5MM
Payment & Shipping Terms:
Minimum Order Quantity: 2000 square meters
Price: USD 0.75-1.75 square meters
Packaging Details: packed in roll with woven bags, pipe core and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Contact Now
Detailed Product Description
Application: Water Conveyance (Canal Liners), Sea Cucumber, Fishpond, Aquaculture, Shrimp Pond Material: LLDPE, HDPE, LDPE, EVA, PVC, Polyethylene
Function: Seepage Control, Impermeable, Protect Product Name: Collection Tank Water Basins Liner Geomembrane Lining Seepage Control High Bearing Capacity
Thickness: 0.5mm Length: 200m, Customize
Colour: Black Origin: Made In China
High Light:

Collection Tank Water Basins Liner

,

Geomembrane Lining Seepage Control

,

High Bearing Capacity Geomembrane Lining

Collection Tank Water Basins Liner Geomembrane Lining Seepage Control High Bearing Capacity



Quick Detail:

  • material: LLDPE, HDPE, EVA, PVC, polyethylene
  • length: 200m
  • width: 6m
  • thickness:  0.5mm
  • function: seepage control, impermeable, protect
  • application: Water Basins, Collection Tank, Water Conveyance (Canal Liners), sea cucumber, fishpond, shrimp pond, aquaculture

Production Description:



HDPE is produced on state-of-the-art 3 layer extruders to 7.0 m and 8.0 m wide rolls to ISO 9001. The product is available in smooth ranging in thickness from 0.5 mm to 2.5 mm, and textured ranging in thickness from 1 mm to 2.5 mm. The material is manufactured to strict specifications with all testing in accordance with ASTM and GSI standards.



Key benefits of HDPE Geomembrane Pond Liner for Shrimp or Fish Pond.
------------------------
1. The use of HDPE geomembrane liner can reduce the loss of oxygen caused by infiltration into the soil.
2. Pond liner inhibit growth of algae in the bottom and is easy to clean pond bottom.
3. There will be have no soil mixed waste and sludge at the bottom of the aquaculture ponds.
4. During intensive and semiintensive farming water will not be turbid( for soil) due to operation of aerators and movement of fishes or shrimps.
5. Fish and shrimps can be efficiently harvested using seine net or dewatering the pond.
6. The pond liner can protect slopes and banks from erosion.
7. The geoemembrane lining system helps easy removal of sediment and waste products using bottom cleaning system through a central drainage system or using a submersible water pump in the central pit of the pond.
8. Reduces initial soil excavation cost and annual pond maintenance cost.
9 . After dewatering bottom can easily be cleaned using a high pressure submersible water pump.
10. Bacterial contamination from the soil is stopped.
11. Use of probiotics and chemicals is very effective.
12. Bottom lining helps effective maintaining of biofloc in the tanks and also in biofloc system of aquaculture and in bottom clean system. You can never maintain effective biofloc in soil ponds.
13. Maintaining biosecurity is easy and effective.
14. Soil chemicals can not change water quality.





Specification:



general parameter:

Thickness 0.15-3.0mm & customer ' s requirement
Width 1-8m & customer ' s requirement
Length 50-200m & customer ' s requirement
Material HDPE
Color Black,White,Green,Blue & customer ' s requirement
Surface Smooth
Package Double layers woven bag, and add two strap & customer ' s requirement
Shipping Marks support
Production Standard GRI,ASTM,GB or other standard



specific parameter:

Item Properties Unit Thickness
1 Thickness mm 0.25 0.35 0.5 0.75 1 1.25 1.5 2
2 Density g/m3 0.94
3 Stretch Yield Strength (horiz & vet) N/mm 3.75 5 7.5 11 15 18 22 29
4 Stretch Break Strength (horiz & vet) N/mm 6.75 13.5 19 20 27 33 40 53
5 Yield Elongation (horiz & vet) % 12
6 Break elongation (horiz & vet) % 700
7 Angle Tear Strength (horiz & vet) N 31.25 45 62.5 93 125 156 187 249
8 Puncture Strength N 80 150 160 240 320 400 480 640
9 Stress Crack Resistance Hrs 300
10 Carbon Black Content (range) % 2.0-3.0
11 Carbon Black Dispersion / not more than 1 case grade 3 in 10 samples, grade 4 & 5 is not allowed
12 Oxidation Induction Time(OIT) Standard OIT 100 min
High Pressure OIT 400 min
13 Thermal Aging at 85 Standard OIT(min.ave.) retained after 90 days 55%
High Pressure OIT(min.ave.) retained after 90 days 80%
14 UV Resistance Standard OIT (min.ave.) 50%
High Pressure OIT (min.ave.) retained after 1600 hrs 50%






Application:

  • Landfills
  • Tunnels
  • Collection tanks
  • Water basins
  • Irrigation channels
  • Extraction mines
  • Motorways
  • Strengthening works at river and marine water flows
  • Dam protections
  • Fish farming



Geomembrane Lining Seepage Control High Bearing Capacity 0

Geomembrane Lining Seepage Control High Bearing Capacity 1



Advantage:



1. Good flexibility

2. For service temperature range:-70°C~110°C

3. Corrosion resistance, aging resistance

4. Excellent environmental stress cracking resistance property

5. High tensile strength and elongation

6. Lightweight, Economical & Flexibl
7. Tear & puncture resistant, Rugged strength
8. High hydrostatic resistance UV resistant
9. Minimal thermal expansion & contraction



Package:



Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2


weight: 129g-188g/m2

Geomembrane Lining Seepage Control High Bearing Capacity 2





Factory Show:



Geomembrane Lining Seepage Control High Bearing Capacity 3



Geomembrane Lining Seepage Control High Bearing Capacity 4

Why Choose us?



Geomembrane Lining Seepage Control High Bearing Capacity 5



FAQ:



Geomembrane Lining Seepage Control High Bearing Capacity 6
