Rainwater Storage Hot Air PVC Welder 1.0mm For PE HDPE LDPE Geomembrane Liner

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, EN, CE
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-1950 set
Packaging Details: packed in waterproof box and standard carton
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: PE, LDPE, EVA, ECB,LLDPE, HDPE, PVC, PP
Power: 1800w Product Name: 1.0mm Hot Air PVC Welder For Rainwater Storage PE HDPE LDPE Geomembrane Liner
Welding Temperature: 0-450°C Voltage: 110V-220V
Welding Thickness: 1.0 -3.5mm Origin: Made In China
High Light:

1.0mm Thickness Hot Air PVC Welder

,

Rainwater Storage Hot Air PVC Welder

,

Rainwater Storage Hot Air Welder


Product Description

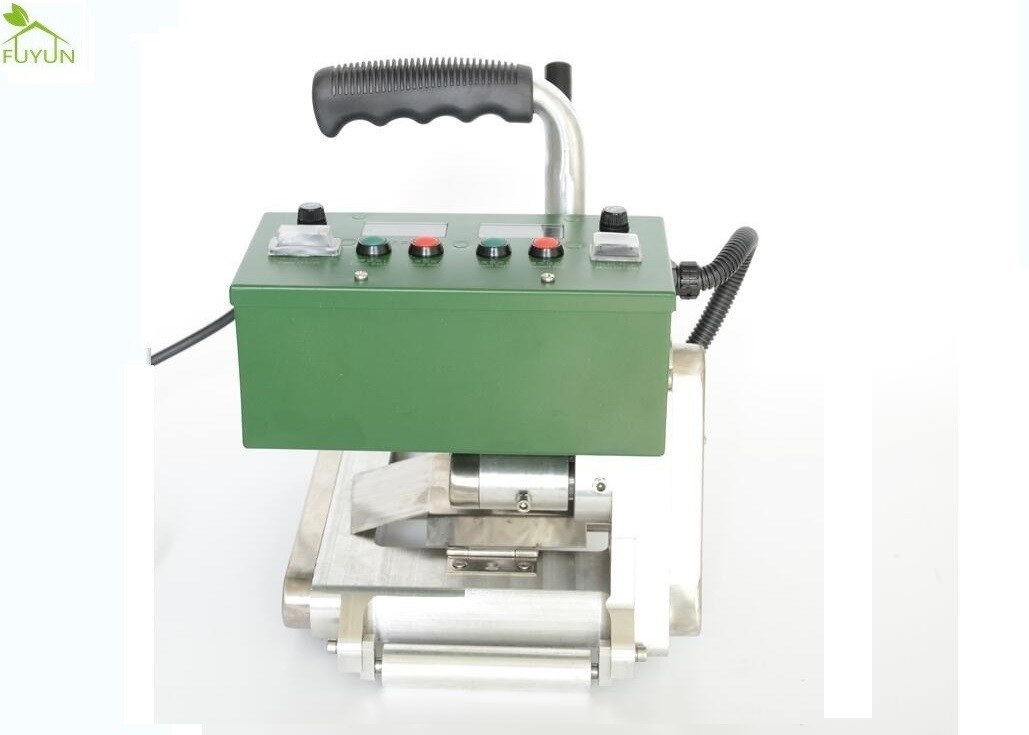

1.0mm Hot Air PVC Welder For Rainwater Storage PE HDPE LDPE Geomembrane Liner

Quick Detail:

machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V-220V
power: 1800w
welding speed: 0.5-8 m/min

Product Description:



BT series geomembrane welding machine is a new type of welding machine developed by Hefei Fuyun Environmental Sci-Tech Co., ltd. It meets the welding of geomembrane with different thickness and is suitable for the welding of all hot-melt materials such as PE, PVC, HDPE, EVA and PP. The temperature control part of this series of welding machine adopts automatic constant temperature PID control; High control precision and small temperature fluctuation. The speed control part adopts pulse width modulation (PWM) automatic voltage stabilizing and speed stabilizing circuit; Driven by DC servo motor, the output torque is large and the walking is stable. It can keep the speed constant when climbing and road load change. This series of welder has stable working performance and is not affected by external temperature and voltage changes. The machine has excellent performance, convenient operation, high welding speed and good welding quality. It is mainly used for welding ultra thick materials such as landfill.



If you want to make a waterproofing project. What do you need?
1. 1 unit Geomembrane welder based on the thickness of meterial for your project;
2. 1 unit Extrusion welder;
3. 1 unit hot air blower;
What`s the key points of the 3 machines?
1. Welding speed must be fast!
2. Welding tempearure must be enough high to meet with the melting point of material. Manufacturing level to guarantee the structure and system!
3. Independedent machining workshop makes sure each structure parts process and assmbly precise!
Why Fuyun welder is your good option?
1. Have over 10 years experience on the plastic welding equipment manufacturing and have produced the first generation welder in China!
2. OEM! No problem!!!
3. Do you want to use our welder or extruder combine with your owned one? Just send the picture to us! We solve the combination problem for you!
4. Are you worry about the accessories replace? Especially the timely service? Pengwang welder solves the all issues for you!


Maintenance:
Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.





Technical Parameters:



Item no.: SWT-NSGM1
Size 340*350*360mm
Weight 14KG
Voltage: 220V, 110V
Frequency: 50/60HZ
power 1800W
Welding Speed 0.5-8 m/min
Thickness of material 1.0-3.5mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
0-450°C

Seam Strength ≥85% base material ( tensile resistant in shear direction)



Application:


Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

Rainwater Storage Hot Air PVC Welder 1.0mm For PE HDPE LDPE Geomembrane Liner 0

Advantage:


Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.

Pressure Adjustment System
Advanced"T"style jib design and pressure regulation structure.

Pressure Roller
Special stainless steel pressure rollers with strong pressure force.

Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.



Package & Delivery:

The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.

Rainwater Storage Hot Air PVC Welder 1.0mm For PE HDPE LDPE Geomembrane Liner 1


Why choose us?

Rainwater Storage Hot Air PVC Welder 1.0mm For PE HDPE LDPE Geomembrane Liner 2

FAQ:

Rainwater Storage Hot Air PVC Welder 1.0mm For PE HDPE LDPE Geomembrane Liner 3
