1.0mm Antiseepage Geotextile Project High Impermeability For Pond Liners

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, ASTM
Model Number: FYP005
Minimum Order Quantity: 1 Set
Price: USD 8000-19800 SET
Packaging Details: packed in woven bag, or customize
Delivery Time: 15 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 1 Set per 15 Days
Detail Information
Material: HDPE LDPE Geomembrane Fabric, Composite Membrane Product Name: 1.0mm Antiseepage Geomembrane Project High Impermeability Fabric For Pond Liners
Function: Seepage Control, Waterproof Application: Artificial Lake, Pond Liner
Thickness: 1.0-2.0mm Project Time: 2020
High Light:

1.0mm Geotextile Project

,

Pond Liners Geotextile Project

,

High Impermeability Geotextile Project


Product Description

1.0mm Antiseepage Geomembrane Project High Impermeability Fabric For Pond Liners

Quick Detail:

project material: HDPE LDPE geomembrane fabric, composite membrane
application: artificial lake, Pond liner
function: seepage control
project time: 15 days


Product Description:



Nowadays, geomembrane(hdpe,lldpe) pond liner is used widly in aquaculture fields. The hdpe/lldpe pond liner good anti-seepage performance and long-life performance can protect soil,groundwater resources from pollution. In fact, fish shrimp farming and other farming fields are using geomembrane pond liner and more,our clients use the 30mil 40mil 60mil pond liner in many countries.




Key Points Of Construction:



1. One part one membrane (200g / 0.5mm) geotextile is used for seepage control at the bottom of the lake. The materials shall be kept ventilated and dry when stored on site, and shall not be exposed to sunlight, and shall be kept away from fire sources.



2. Before paving impermeable cloth, the lake bottom ponding and silt should be removed, and the soil should be compacted to prevent the base surface from being uneven and the sharp edges of gravel from being exposed. The construction method of air permeability is the same as that of sand pit.



3. The impermeable cloth should be laid from one end to the other, and other corresponding treatment measures should be taken to contact with the slope, so as to connect with the grass slope naturally.



4. The joints of impervious cloth shall be laid with an overlap of 10cm, and the joints shall be treated with strong adhesive or heat sealing.



5. In order to protect the impermeable cloth from aging or damage, the bottom surface of the impermeable cloth shall be covered with 20-30cm sand layer or soil layer, and the hard blocks in the backfill layer shall be cleaned up.



Slope Engineering:


There are several types of artificial lakeside slope treatment, which are different according to different geographical environment:



1. Natural slope: the upper part is connected with the grass slope to form a clear water grass boundary, and the slope is compacted in the process of modeling


2. Mortar rubble slope: it can be divided into vertical slope and inclined slope



3. Slope of precast concrete slab: the slope is protected by dry paving of precast concrete slab, the joint of slab is filled with sand layer, and then the surface is pointed with 1:3 cement mortar


4 Natural vermiculite slope: the slope is naturally stacked with landscape stones, and the blocks are connected by mortar


5. Wood like wall for landscape: the lakeside is protected with concrete piles, and the surface is treated with wood like treatment




Advantages:



1. Water storage:the geomembrane pond liner has low permeability,can help to prevent the water seeping into the ground soil,save water cost..



2. Water quality stability:the pond liner can keep water quality,reduce changes in water condition to save cost on water quality control.



3. Low maintenance cost: pond liner can inhibit the growth of algae in water, UV resistant,easy to clean.



4. Pond system stablity:compared to digging a pond, geomembrane liner can stabilize the slope,make the ponds have steep slopes and depth,recude the loss and increase the output with high stable system.



5.High output: with our pond liner, there will be no weeds, sludge and other things affecting the fishing speed at the bottom of the pond, the fishing time will be greatly reduced, and the vitality and freshness of fish shrimp will be greatly enhanced.





Technical Parameter:



project name Artificial Lake Composite HDPE Geomembrane Seepage Control Project Solution
brand FUYUN
material HDPE anti-seepage geomembrane fabric, composite geomembrane
project time 2020
size 50*6m
color black
thickness 1.5mm



Application:

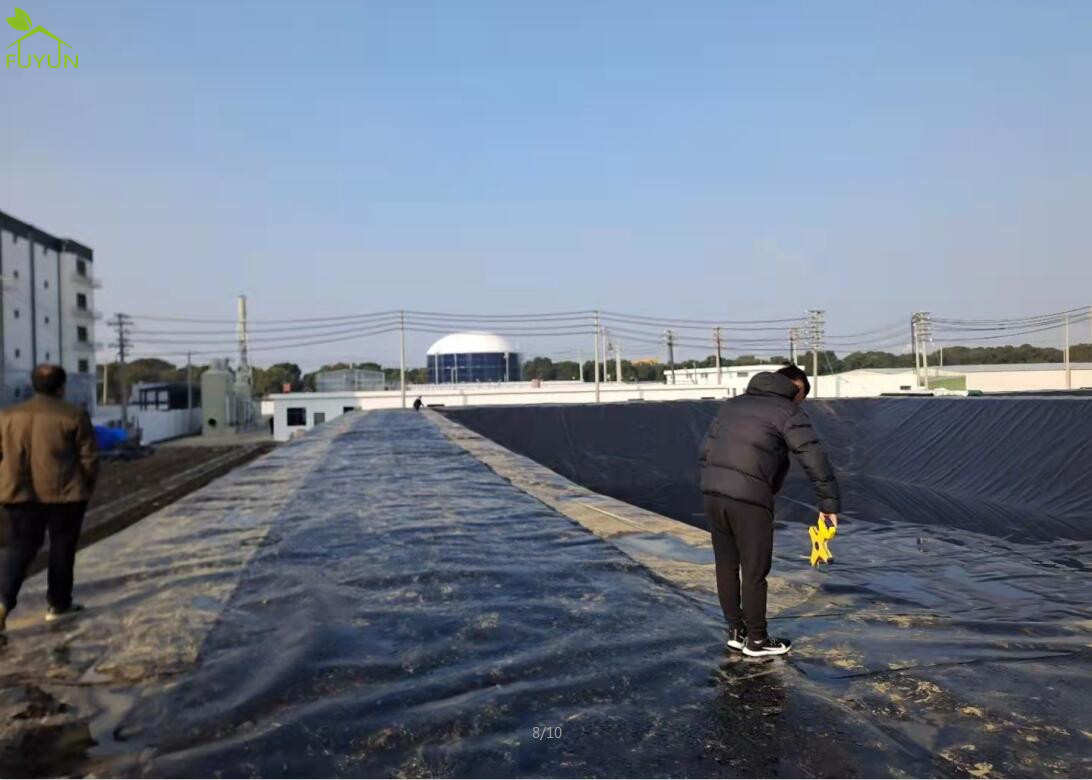

1.0mm Antiseepage Geotextile Project High Impermeability For Pond Liners 0

1.0mm Antiseepage Geotextile Project High Impermeability For Pond Liners 1

1.0mm Antiseepage Geotextile Project High Impermeability For Pond Liners 2

Package & Delivery:

all products will be packed in woven bags with waterproof film, in standard carton. we gurantee the product goo when customers receive it. It will be deliverd on time as customer requirement.
