| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, SASO, GB, SONCAP, BV |
| Model Number: | 1.5MM |
| Minimum Order Quantity: | 1300 square meters |
| Price: | USD 1.25-5.55 square meters |
| Packaging Details: | packed in roll with pipe core and woven bag |
| Delivery Time: | 7 Days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Application: | Slope, River Dam, Flood Dyke, Reservoir, Oil Tank | Material: | HDPE, PVC, LDPE, EVA, Polyethylene |
|---|---|---|---|
| Function: | Anti-seepage, Reinforce, Protect, Anti Skip Slippery | Product Name: | Anti Skid Slippery Rough Surface Textured Geomembrane Single Double Side For Oil Tank Petroleum |
| Thickness: | 1.5mm | Length: | 200m, Customize |
| Width: | 6m | Origin: | Made In China |
| High Light: | Anti Skid Geotech Fabric,Anti Skid Geomembrane Fabric,Textured Geotech Fabric |
||

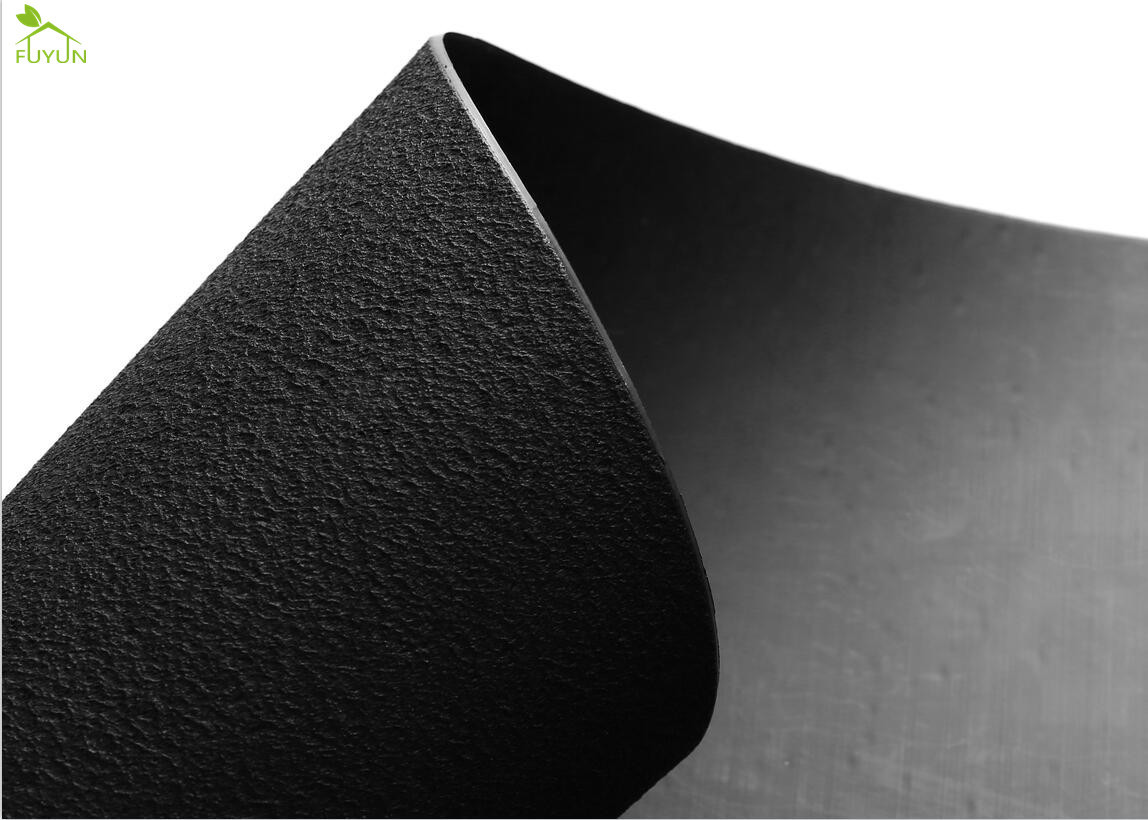

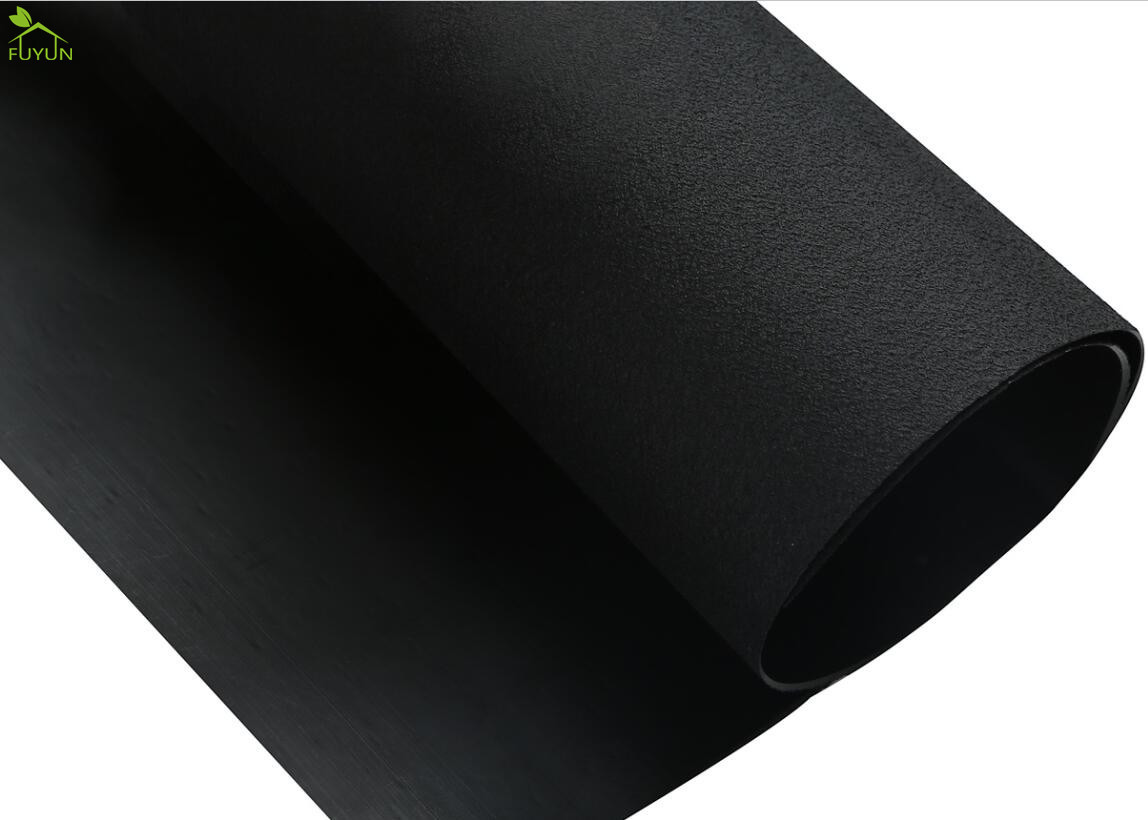

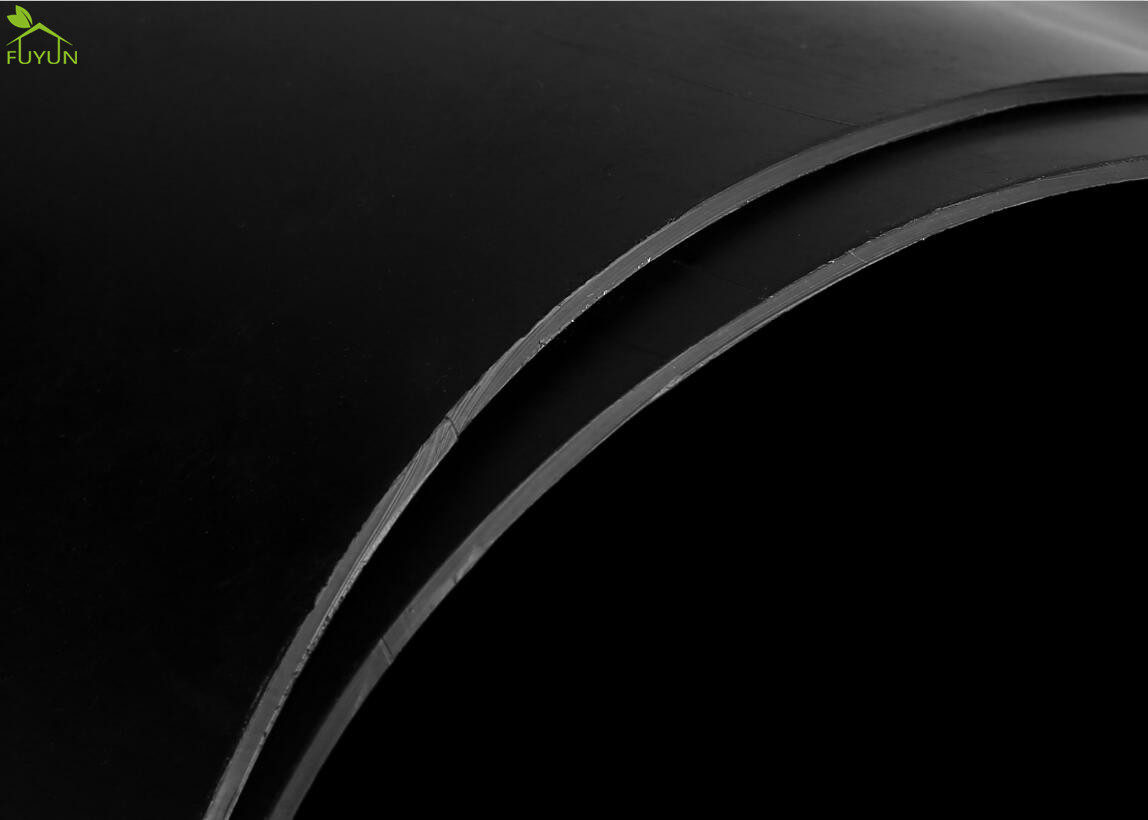

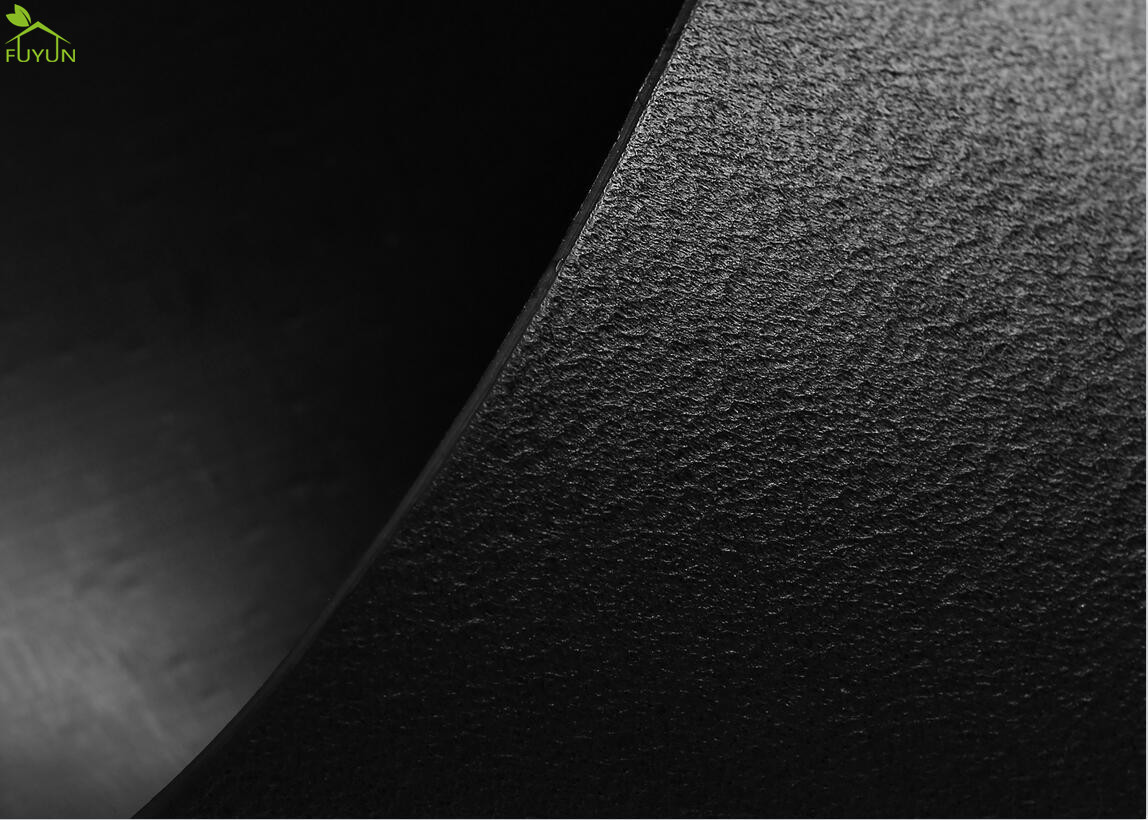

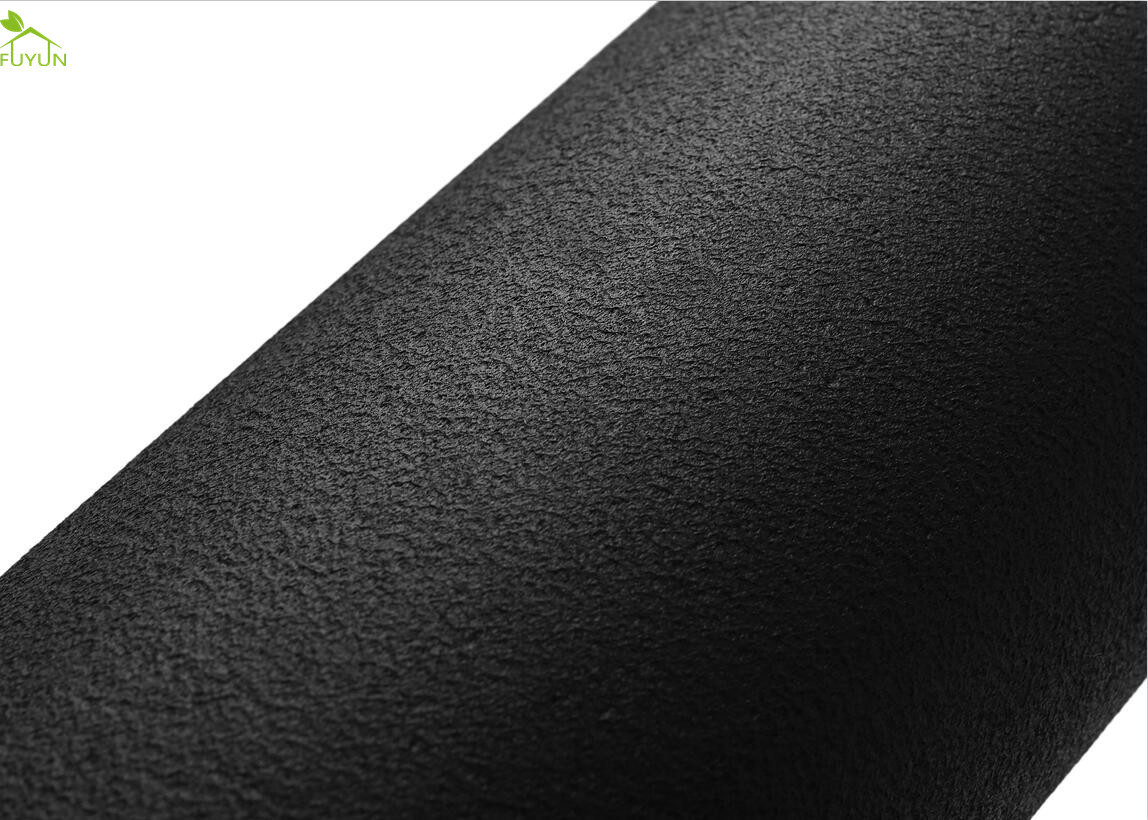

Anti Skid Slippery Rough Surface Textured Geomembrane Single Double Side For Oil Tank Petroleum
Quick Detail:
Production Description:
Anti-seepage HDPE geomembrana is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, solid waste containment and water containment environment and mining environment. Anti-seepage HDPE geomembrana is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.
The rough surface geomembrane is used as an impermeable base material. It is a geotechnical impermeable material processed by a special process formula through roll extrusion or blown film roughening treatment. The performance of the new material geomembrane is mainly isolation and impermeability. . At present, the geomembranes used in anti-seepage applications at home and abroad mainly include polyvinyl chloride (PVC), polyethylene (PE), EVA (ethylene/vinyl acetate copolymer), and ECB (ethylene vinyl acetate modified) is also designed for tunnel applications. Asphalt blend geomembrane), they are a kind of polymer chemical flexible material, with small specific gravity, strong extensibility, high adaptability to deformation, corrosion resistance, low temperature resistance and good frost resistance. Single-rough surface and double-rough surface geomembrane can increase the coefficient of friction with the contact surface and enhance the anti-slip function of the geomembrane. It is especially suitable for slopes, steep slopes and vertical seepage prevention, and improves engineering stability.
Specification:
| Item | Properties | Unit | Thickness | |||||
| 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | |||
| 1 | Roughness Height | mm | 0.25 | |||||
| 2 | Minimum Density | g/cm3 | 0.939 | |||||
| 3 | Breaking Strength | N/mm | 10 | 13 | 16 | 21 | 26 | 32 |
| 4 | Elongation at Break | % | 100 | |||||
| 5 | Right Angle Tear Strength | N | 125 | 156 | 187 | 249 | 311 | 374 |
| 6 | Puncture Strength | N | 267 | 333 | 400 | 534 | 667 | 800 |
| 7 | Stress Crack Resistance | Hrs | 300 | |||||
| 8 | Carbon Black Content (range) | % | 2.0-3.0 | |||||
| 9 | Low Temperature Impact Embrittlement at -70℃ | / | ok | |||||
| 10 | Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) | / | ≤1.0*10-13 | |||||
| 11 | Dimensional Stability | % | ±2 | |||||
Application:
1. Seepage proof lining of subway, basement and tunnels.
2. Prevention of seepage by salting of roadbed and other foundations.
3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.
4. Seawater and freshwater aquaculture farms.
5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.
6. Seepage prevention of roof.
7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)
Advantage:
1. good flexibility and high impervious coefficient.
2. good heat and cold resistance and can be used in a wide temperature range.
3. good chemical properties and strong corrosion resistance.
4. strong weather resistance and excellent aging resistance.
5. thigh tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Package:
all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.
