| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, EN, CE |
| Model Number: | SWT-NSGM1 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 1000-1550 set |
| Packaging Details: | packed in waterproof box and standard carton |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50 Sets per Day |
| Frequency: | 50/60Hz | Application: | LDPE, EVA, ECB, HDPE, PVC, ,LLDPE, PP |
|---|---|---|---|
| Power: | 2100w | Product Name: | 1.0mm Aquatic Fishpond Hot Air PVC Welder HDPE Geomembrane Liners |
| Welding Temperature: | 0-450°C | Voltage: | 110V-220V |
| Welding Thickness: | 0.2 -3.5mm | Origin: | Made In China |
| High Light: | 1.0mm HDPE Geomembrane Welding Machine,Fishpond Hot Air PVC Welder,HDPE Geomembrane Hot Air PVC Welder |
||

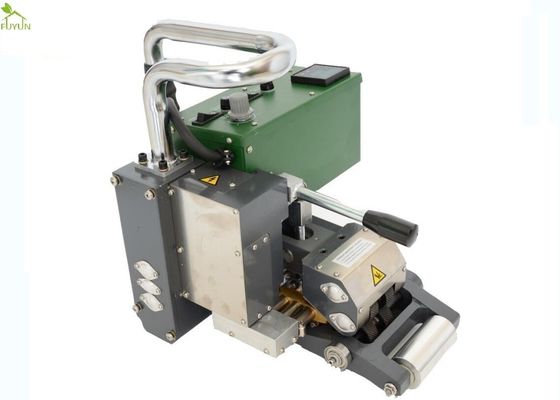

1.0mm Aquatic Fishpond Hot Air PVC Welder HDPE Geomembrane Liners
Quick Detail:
machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V-220V
power: 2100w
welding speed: 0.5-8 m/min
Product Description:
It adopts advanced hot air heating system. With small, light and high speed, it perfects the welding quality even if corrosive materials and bad working environment. This machine is specially designed for tunnels, subway, water conservancy, aquaculture, biogas plants, landfills, chemical mining, sewage treatment, roof constructions and other waterproofing projects.
If you want to make a waterproofing project. What do you need?
1. 1 unit Geomembrane welder based on the thickness of meterial for your project;
2. 1 unit Extrusion welder;
3. 1 unit hot air blower;
What`s the key points of the 3 machines?
1. Welding speed must be fast!
2. Welding tempearure must be enough high to meet with the melting point of material. Manufacturing level to guarantee the structure and system!
3. Independedent machining workshop makes sure each structure parts process and assmbly precise!
Why Fuyun welder is your good option?
1. Have over 10 years experience on the plastic welding equipment manufacturing and have produced the first generation welder in China!
2. OEM! No problem!!!
3. Do you want to use our welder or extruder combine with your owned one? Just send the picture to us! We solve the combination problem for you!
4. Are you worry about the accessories replace? Especially the timely service? Pengwang welder solves the all issues for you!
Maintenance:
Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.
tips;
a. For welding membrane thickness 1.0-3.0 mm with steel pressure roller.
b. For welding the materials that may release corrosive gas after hot fusing such as PVC and other similar material, stainless steel hot wedge (optional accessory) is preferred for extending of service life.
c. Any else customized demands, you can ask us directly, we have a professional technicians team.
d. With the temperature display and speed display screen at the same time.
Technical Parameters:
| Item no.: | SWT-NSGM1 |
| Size | 340*350*360mm |
| Weight | 14KG |
| Voltage: | 220V, 110V |
| Frequency: | 50/60HZ |
| power | 1200W |
| Welding Speed | 0.5-8 m/min |
| Thickness of material | 0.2-2.0 mm |
| Welding width | 15 mm *2, interior cavity 20 mm |
| Overlap width | 120 mm |
| Welding temperature | 0-450°C |
| Seam Strength | ≥85% base material ( tensile resistant in shear direction) |
Application:
Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.
Advantage:
Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.
Pressure Adjustment System
Advanced"T"style jib design and pressure regulation structure.
Pressure Roller
Special stainless steel pressure rollers with strong pressure force.
Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.
Package & Delivery:
The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.
Why choose us?
FAQ:
0-450°C
