Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP
Model Number: 2.5MM
Minimum Order Quantity: 1000 square meters
Price: USD 2.5-8.5 square meters
Packaging Details: packed in roll with woven bags
Delivery Time: 5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 3000 square meters per Day
Detail Information
Thickness: 2.5mm Width: 6m
Length: 50m/roll Application: Landfill, Steep Slope, Chemical Industry, Oil Rig Platform
Material: HDPE,EVA,PVC,polyethylene, LLDPE Function: Drainage, Ventilation, Antiseepage
Weight: 150gsm Product Name: Chemical Industry 2.5mm Column Points Geomembrane Liner Heavy Duty 50m/Roll
High Light:

Chemical Industry Geomembrane Liner

,

Geomembrane Liner Column Points

,

2.5mm Geotech Fabric


Product Description

Chemical Industry 2.5mm Column Points Geomembrane Liner Heavy Duty 50m/Roll

Quick Detail:

  • material: HDPE geomembrane
  • length: 50m
  • width: 6.0m
  • thickness: 2.5mm
  • production standard: GRI,ASTM,GB, ISO
  • application: landfill,steep slope, chemical industry, oil rig tank


Production Description:

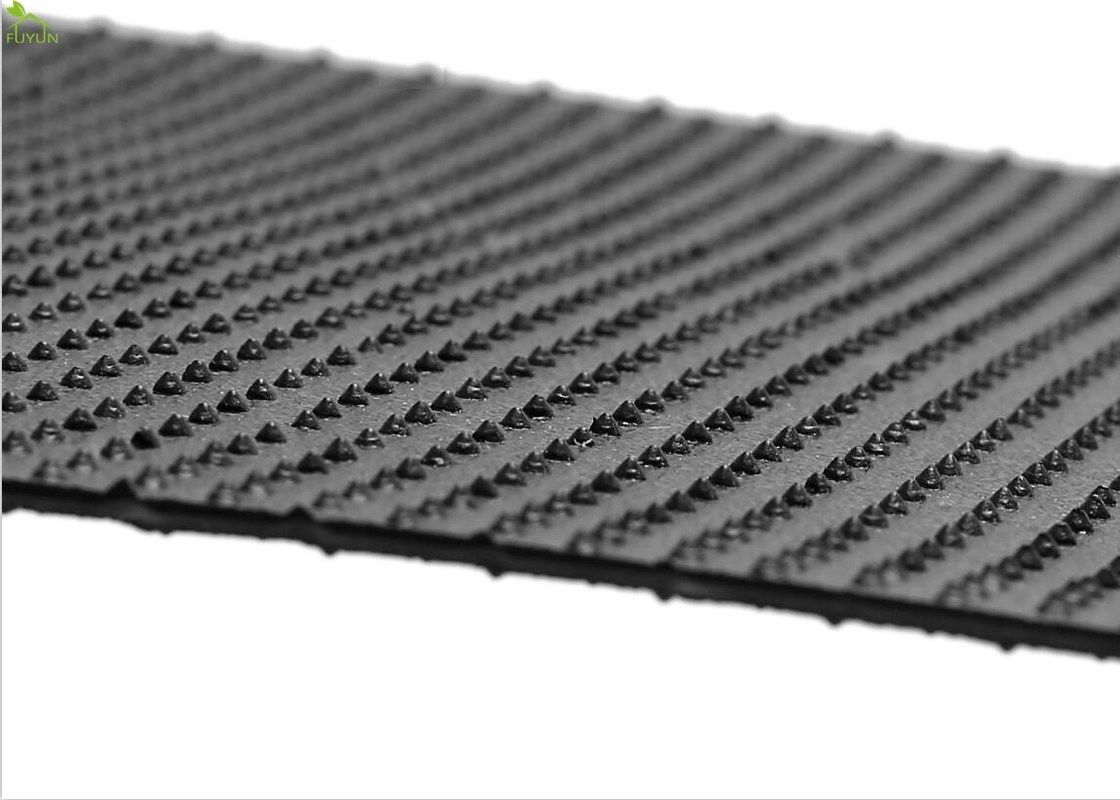

HDPE column point rough surface geomembrane is divided into single column point geomembrane and double column point geomembrane; the products produced by this production process have excellent mechanical properties, good elongation, and stable chemical properties while retaining the original resin itself. Above, by adding a certain proportion of functional additives through melting, extrusion, rolling, drawing and other processes, the product’s tensile, abrasion, and puncture resistance properties are enhanced. The mechanical properties of the product are better than those of the rough surface produced by similar common processes. The anti-slip geomembrane is increased by nearly 3 times. The pillar points on the membrane surface are rolled and rolled by a special model. The pillar points are evenly distributed, beautiful, and the friction coefficient is improved. The front and back sides of the membrane can be thermally fused with different materials and colors. In engineering applications, the front and back of the product can be set according to geological conditions and engineering requirements.

The Points evenly distributed with increased friction, and the appearance is very beautiful. The two sides of geomembrane can be of melted together by different colour and materials. We can produce right side or reverse of products according to geological conditions and project requirements.
It retains suprior mechanical property and excellent elongation and stable chemical property of raw materials. And through adding functional auxiliaries agents in fixed proportion, which improved product's function of anti-acid&alkali and anti-corrosion. It's tensile strength 3 times higher than normal 1 textured geomembrane.


Specification:

ItemPropertiesIndex
1Substrate Thickness (mm)0.5-2.5
2Height of Supporting Point (mm)0.6-0.75
3Tensile Strength (horiz & vet)Mpa25
4Elongation at Break (horiz & vet) %550
5Angle Tear Strength (horiz & vet) N/mm110
6Resistance to Environmental Stress Cracking F20*h1500
7Carbon Black Content (range) %2-3
8Impact Embrittlement at -70yes
9Oxidation Induction Time at 20020min



Application:


1. River Embankment, lake dam,tailing,sawage, reservior, cana,storage ect.
2. Antiseepage of undergroup, basement, tunnel.
3. Antiseepage of subgrade and graund work in salty soil.
4.The antiseepage in plane direction of embankment and dam, the antlseepage intranverse direction of groudwork. canstruction cofferdam, scrap yard.
5. Breeding farm of fresh water and sea water
6. Embankment of road, highway and railway,water proof layer of swelling clay and collapsed loess
7. Water proof of roof top.



Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll 0


Advantage:

  • Effective isolation of liquids and gases
  • The flexibility of the material is suitable for landfill closure
  • Anti leakage
  • Moisture-proof
  • Isolation
  • Root resistance
  • Anti puncture
  • Resistance to environmental stress cracking



Package:

Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.

Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll 1


Factory Show:

Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll 2


Why Choose us?

Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll 3

FAQ:

Chemical Industry 2.5mm Geomembrane Liner Column Points 50m/Roll 4
