Place of Origin: | Hefei, China |
Brand Name: | FUYUN |
Certification: | ISO, GB, BV, SASO, SONCAP |
Model Number: | 3.0MM |
Minimum Order Quantity: | 1000 square meters |
---|---|
Price: | USD 2.5-5.5 square meters |
Packaging Details: | packed in roll with woven bags |
Delivery Time: | 5 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 3000 square meters per Day |
Thickness: | 3.0mm | Width: | 6m |
---|---|---|---|
Length: | 50m/roll | Application: | Landfill, Steep Slope, Chemical Industry, Oil Rig Platform |
Material: | HDPE,EVA,PVC,polyethylene, LLDPE | Function: | Drainage, Ventilation, Antiseepage |
Weight: | 150gsm | Product Name: | 3.0mm Thickness Geomembrane Liner For Non Skid Liquid Storage Tanks |
High Light: | Geomembrane Liner Non Skid,Geomembrane Liner 3.0mm Thickness,Liquid Storage Tanks Geotech Fabric |

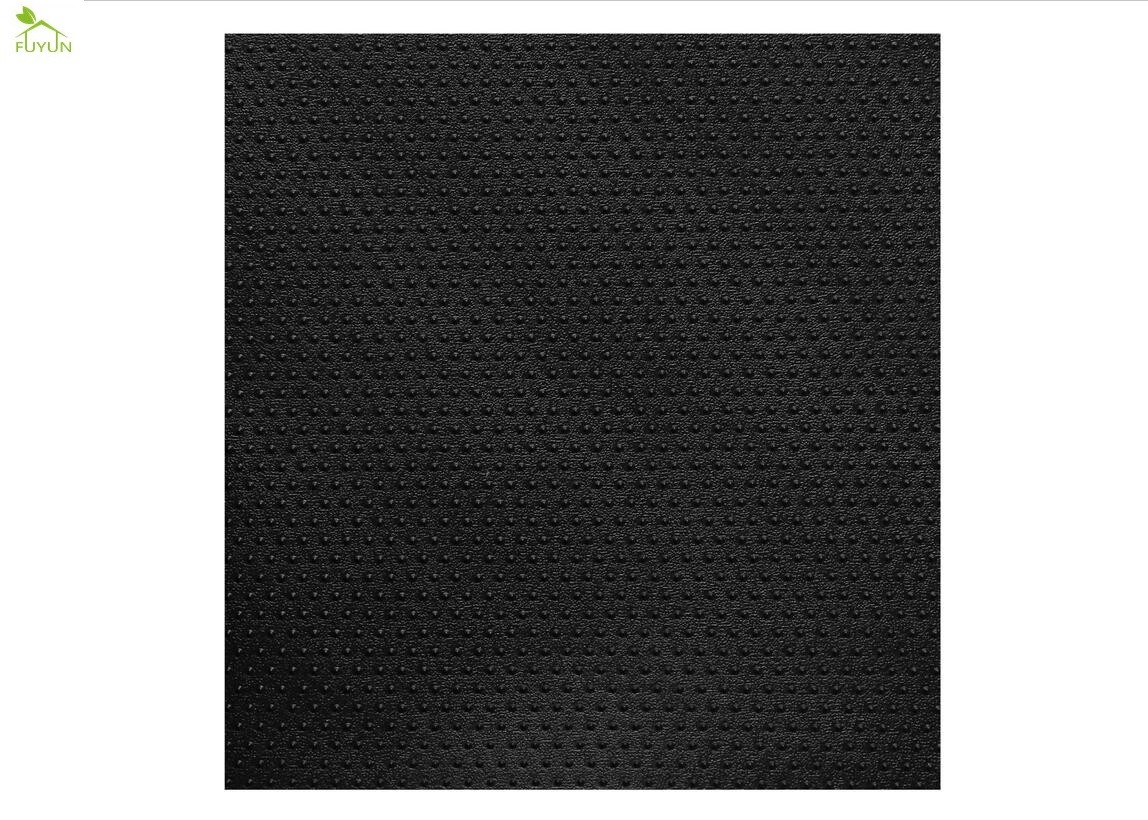

3.0mm Thickness Geomembrane Liner For Non Skid Liquid Storage Tanks
Quick Detail:
Production Description:
Column Pionts anti skid geomembrane is produced by processing of hot-welt, extrude, press pre-long. extension in reasonable controlling, which increase products' tensile strength puncture strength, abrasion resistance.
The Points evenly distributed with increased friction, and the appearance is very beautiful. The two sides of geomembrane can be of melted together by different colour and materials. We can produce right side or reverse of products according to geological conditions and project requirements.
It retains suprior mechanical property and excellent elongation and stable chemical property of raw materials. And through adding functional auxiliaries agents in fixed proportion, which improved product's function of anti-acid&alkali and anti-corrosion. It's tensile strength 3 times higher than normal 1 textured geomembrane.
Specification:
Item | Properties | Index |
1 | Substrate Thickness (mm) | 0.5-2.5 |
2 | Height of Supporting Point (mm) | 0.6-0.75 |
3 | Tensile Strength (horiz & vet)Mpa | ≧25 |
4 | Elongation at Break (horiz & vet) % | ≧550 |
5 | Angle Tear Strength (horiz & vet) N/mm | ≧110 |
6 | Resistance to Environmental Stress Cracking F20*h | ≧1500 |
7 | Carbon Black Content (range) % | 2-3 |
8 | Impact Embrittlement at -70℃ | yes |
9 | Oxidation Induction Time at 200℃ | 20min |
Application:
1. River Embankment, lake dam,tailing,sawage, reservior, cana,storage ect.
2. Antiseepage of undergroup, basement, tunnel.
3. Antiseepage of subgrade and graund work in salty soil.
4. The antiseepage in plane direction of embankment and dam, the antlseepage intranverse direction of groudwork. canstruction cofferdam, scrap yard.
5. Breeding farm of fresh water and sea water
6. Embankment of road, highway and railway,water proof layer of swelling clay and collapsed loess
7. Water proof of roof top.
Advantage:
Mechanical properties of Geomembrane
To measure the strength of polymeric sheet materials, a variety of mechanical tests have been established. Many have been adopted for use in geomembrane evaluation. They are index versus performance tests, and they reflect both quality control and design.
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Factory Show:
Why Choose us?
FAQ:
