|Place of Origin:||Hefei, China|
|Certification:||ISO, GB, BV, SASO, SONCAP|
|Minimum Order Quantity:||1000 square meters|
|Price:||USD 1.5-8.5 square meters|
|Packaging Details:||packed in roll with woven bags|
|Delivery Time:||5 Days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||3000 square meters per Day|
|Length:||50m/roll||Application:||Landfill, Steep Slope, Chemical Industry, Oil Rig Platform|
|Material:||HDPE,EVA,PVC,polyethylene, LLDPE||Function:||Drainage, Ventilation, Antiseepage|
|Weight:||150gsm||Product Name:||3.0mm Column Pionts Heavy Duty Non Skid Oil Rig Platform Floor Under Mug Tanks Geomembrane Liner|
3.0mm Thickness Geomembrane Liner,
50m/roll Geomembrane Liner,
Oil Rig Platform Geotech Fabric

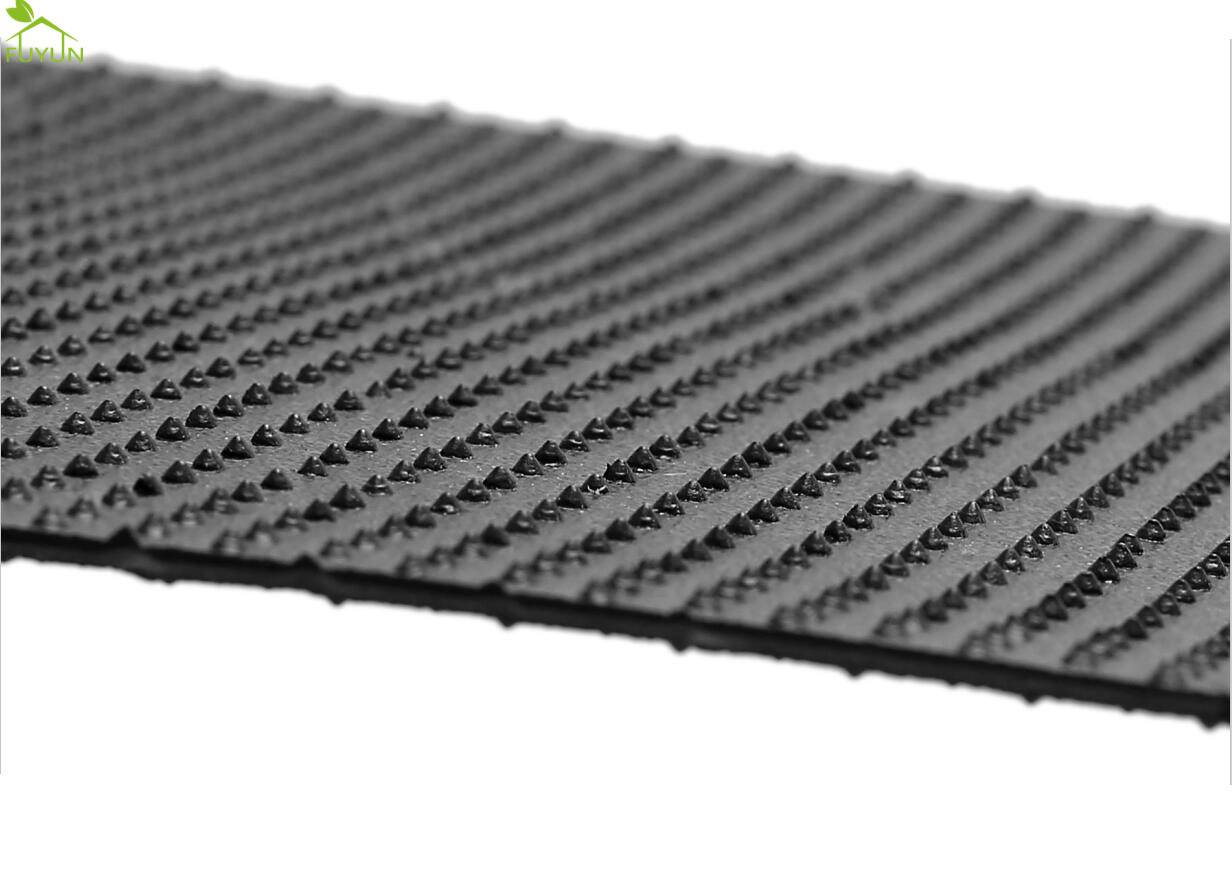

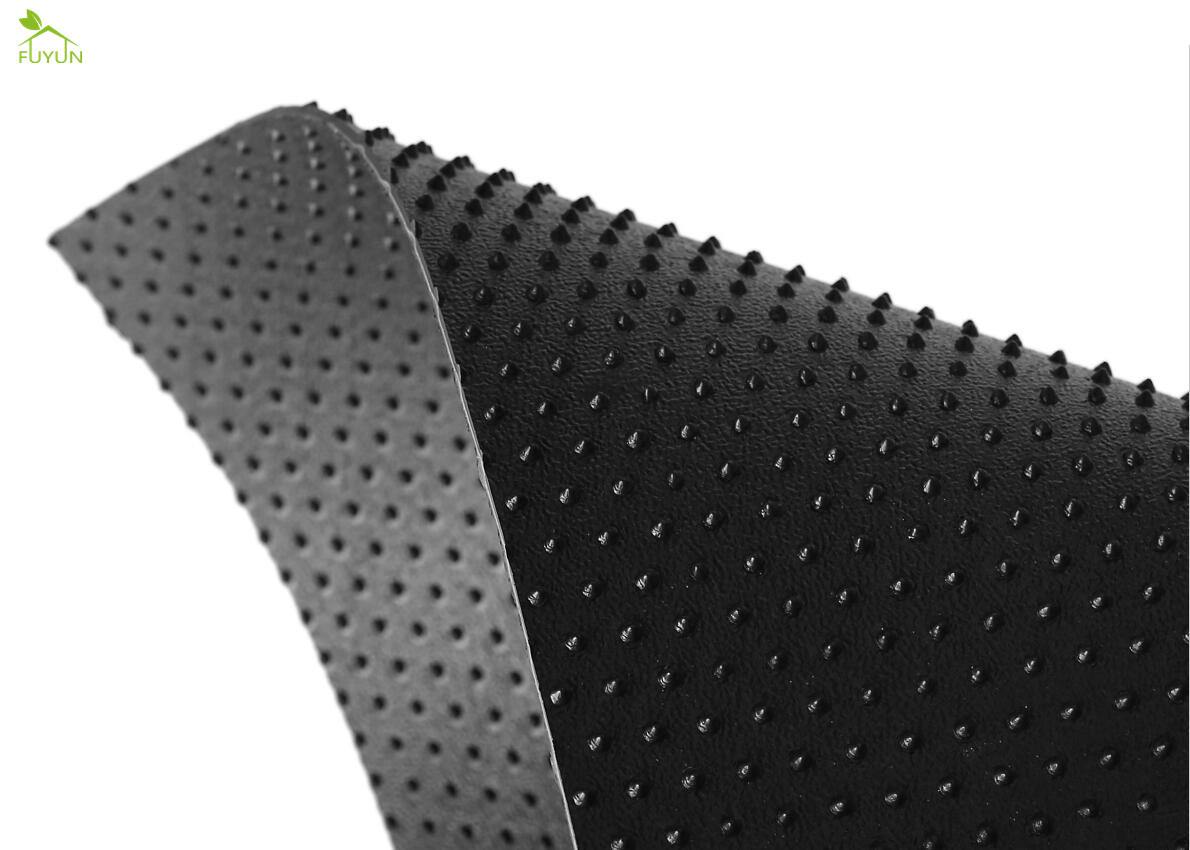

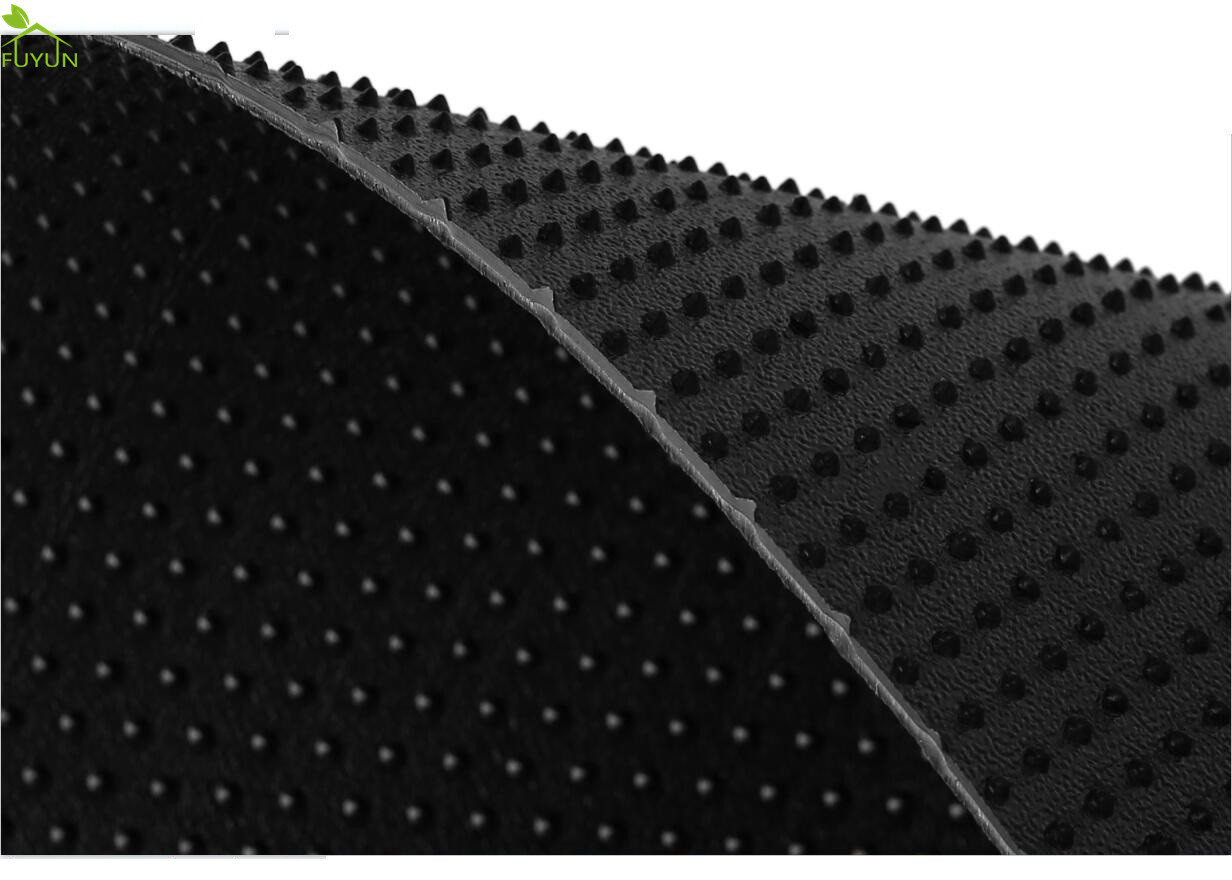

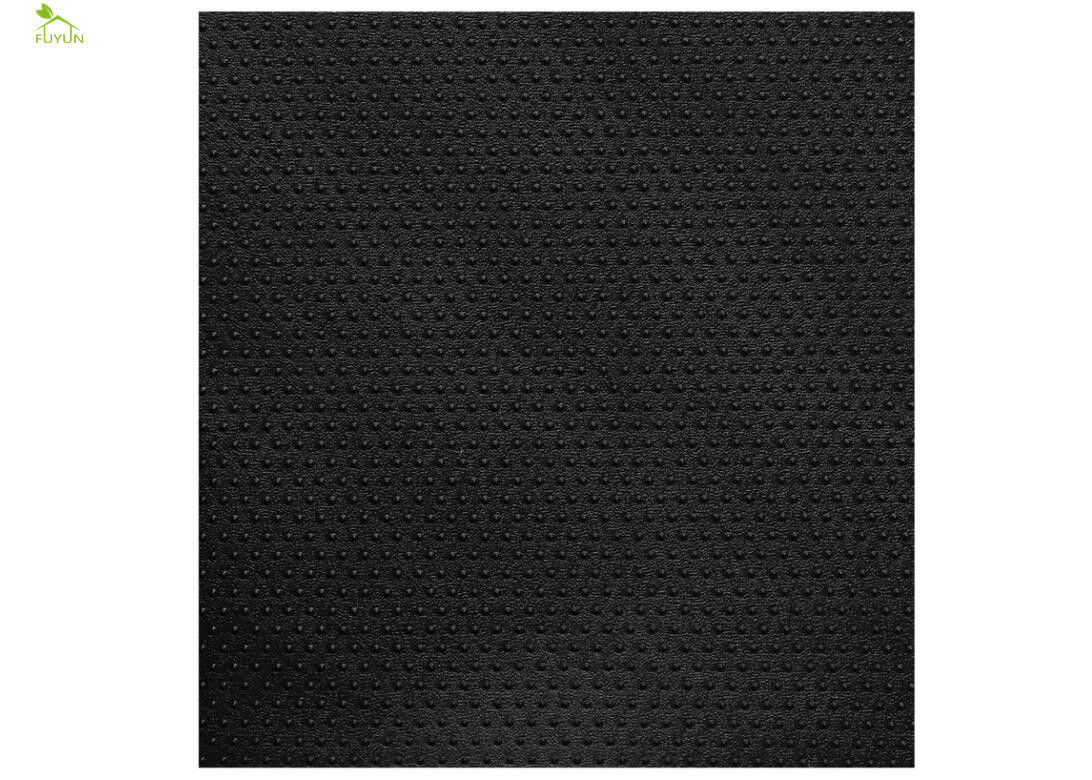

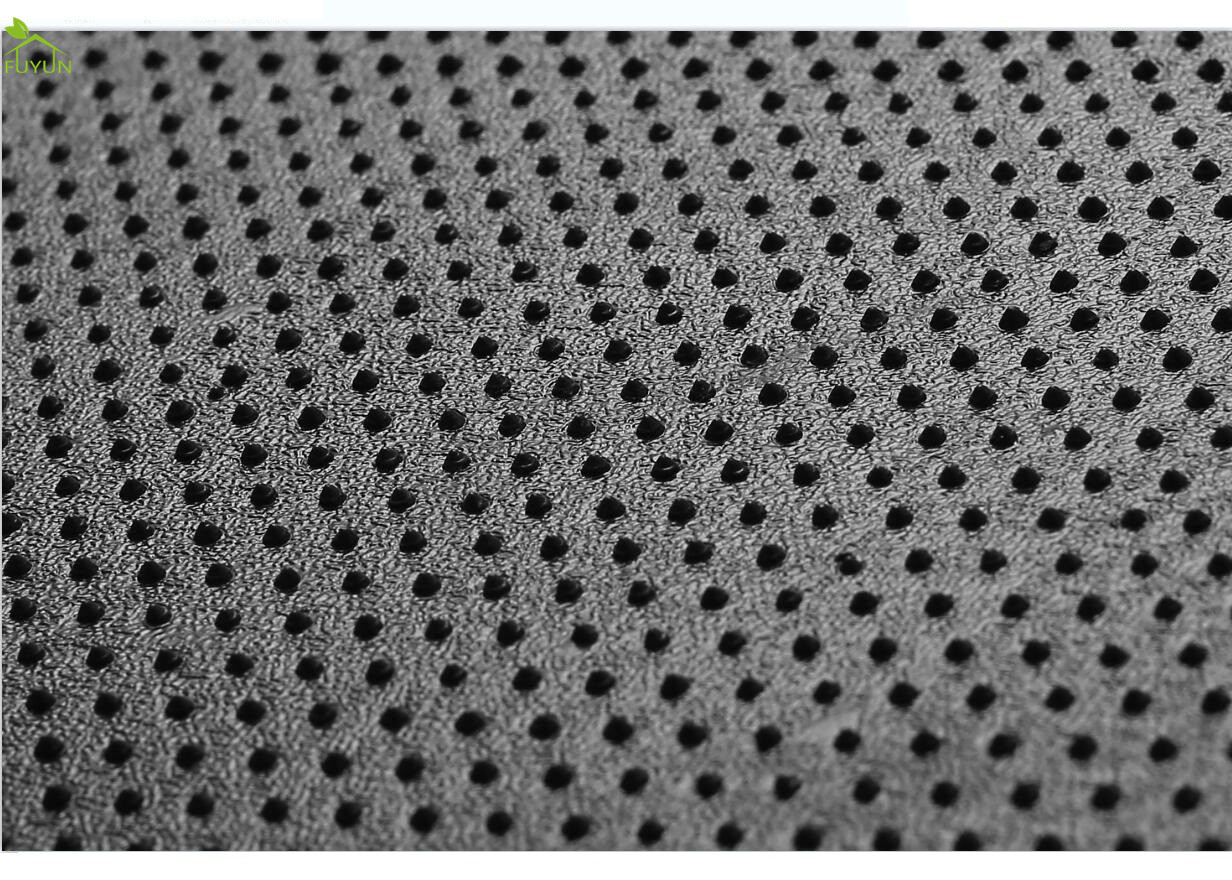

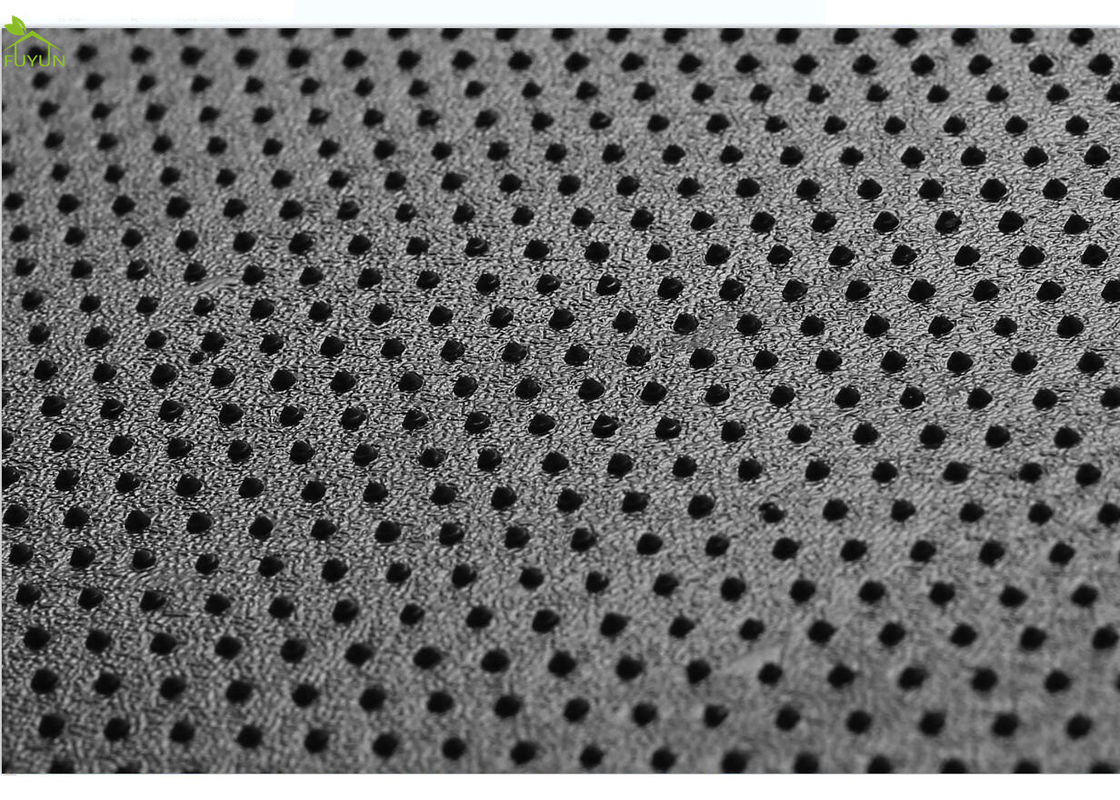

3.0mm Column Pionts Heavy Duty Non Skid Oil Rig Platform Floor Under Mug Tanks Geomembrane Liner
HDPE impervious membrane with supporting points is a new type of impervious material, including HDPE impervious membrane with one-side supporting points and HDPE impervious membrane with two-side supporting points. HDPE impervious membrane with supporting points not only has the temperature adaptability, tolerance, aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce property of HDPE smooth geomembrane, but also increases friction coefficient, has anti-skid function, and is more suitable for steep slope and vertical seepage prevention, so as to ensure the stability of the project.
Column Pionts anti skid geomembrane is produced by processing of hot-welt, extrude, press pre-long. extension in reasonable controlling, which increase products' tensile strength puncture strength, abrasion resistance.
The Points evenly distributed with increased friction, and the appearance is very beautiful. The two sides of geomembrane can be of melted together by different colour and materials. We can produce right side or reverse of products according to geological conditions and project requirements.
It retains suprior mechanical property and excellent elongation and stable chemical property of raw materials. And through adding functional auxiliaries agents in fixed proportion, which improved product's function of anti-acid&alkali and anti-corrosion. It's tensile strength 3 times higher than normal 1 textured geomembrane.
|1||Substrate Thickness (mm)||0.5-2.5|
|2||Height of Supporting Point (mm)||0.6-0.75|
|3||Tensile Strength (horiz & vet)Mpa||≧25|
|4||Elongation at Break (horiz & vet) %||≧550|
|5||Angle Tear Strength (horiz & vet) N/mm||≧110|
|6||Resistance to Environmental Stress Cracking F20*h||≧1500|
|7||Carbon Black Content (range) %||2-3|
|8||Impact Embrittlement at -70℃||yes|
|9||Oxidation Induction Time at 200℃||20min|
1. River Embankment, lake dam,tailing,sawage, reservior, cana,storage ect.
2. Antiseepage of undergroup, basement, tunnel.
3. Antiseepage of subgrade and graund work in salty soil.
4. The antiseepage in plane direction of embankment and dam, the antlseepage intranverse direction of groudwork. canstruction cofferdam, scrap yard.
5. Breeding farm of fresh water and sea water
6. Embankment of road, highway and railway,water proof layer of swelling clay and collapsed loess
7. Water proof of roof top.
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Why Choose us?
