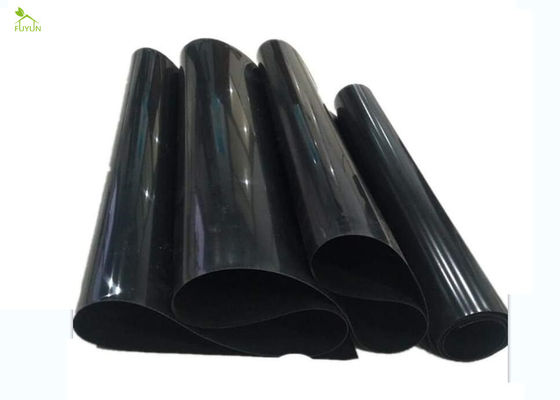

Black Moisture Proof Geomembrane Fabric Anti Seepage

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, ASTM, SASO, GB, SONCAP, BV
Model Number: 1.0MM
Minimum Order Quantity: 1550 square meters
Price: USD 0.45-1.05 square meters
Packaging Details: packed in roll with pipe core, woven bags, and belts
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Flow-back & Produced Water Management Impoundments, Agricultural, Fire Protection, Decorative, Pollution Control & Rainwater Management Ponds, Industrial & Municipal Landfill Cells Material: HDPE, PVC, LDPE, Polyethylene, LLDPE, EVA
Function: Antiseepage, Isolate, Protect Product Name: Flow-back & Produced Water Management Impoundments Black Geomembrane Fabric Liners Anti Seepage
Thickness: 0.5mm Certificate: ASTM, EN, ISO, GB, GM13
Origin: Made In China Color: Black
High Light:

Anti Leakage Geotech Fabric

,

Moisture proof Geomembrane Fabric

,

Geomembrane Fabric Anti Seepage


Product Description

Flow-back & Produced Water Management Impoundments Black Geomembrane Fabric Liners Anti Seepage

Quick Detail:

  • material: HDPE, PVC, polyethylene, LLDPE, EVA
  • length: 200m
  • width: 5.5m
  • thickness:  0.5mm
  • function: antiseepage, isolate, protect
  • application: Flow-back & Produced Water Management Impoundments, Agricultural, Fire Protection, Decorative, Pollution Control & Rainwater Management Ponds, Industrial & Municipal Landfill Cells

Production Description:


High Density Polyethylene (HDPE) geomembranes exhibit superior chemical resistance, exceptional longevity, and unlike many liners made with other polyolefins, retain the ability to be easily repaired and welded throughout its entire, long life cycle. FUYUN manufactures highest quality HDPE geomembranes that meet GRI-GM13 specification ranging in thicknesses from 30 to 120 mils with various surface finishes to offer frictional properties custom tailored to meet site specific conditions where needed.



It contains approximately 97.5% polymer and 2.5% carbon black, antioxidants and thermal stabilisers. It does not contain additives that can migrate or cause fragility over time. It geomembranes are manufactured under strict quality control.



It has excellent temperature adaptability, weldability, tolerance and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce performance. Therefore, it is especially suitable for underground engineering, mining engineering, sewage and waste residue treatment plant as impermeable materials.


Specification:


Item Properties Unit Thickness
  1.0 1.25 1.5 2.0 2.5 3.0
1 Roughness Height mm 0.25
2 Minimum Density g/cm3 0.939
3 Breaking Strength N/mm 10 13 16 21 26 32
4 Elongation at Break % 100
5 Right Angle Tear Strength N 125 156 187 249 311 374
6 Puncture Strength N 267 333 400 534 667 800
7 Stress Crack Resistance Hrs 300
8 Carbon Black Content (range) % 2.0-3.0
9 Low Temperature Impact Embrittlement at -70℃ / ok
10 Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) / ≤1.0*10-13
11 Dimensional Stability % ±2



Black Moisture Proof Geomembrane Fabric Anti Seepage 0

 Black Moisture Proof Geomembrane Fabric Anti Seepage 1
 Black Moisture Proof Geomembrane Fabric Anti Seepage 2
Black Moisture Proof Geomembrane Fabric Anti Seepage 3

Applications:

  • Industrial & Municipal Landfill Cells
  • Agricultural, Fire Protection, Decorative, Pollution Control & Rainwater Management Ponds
  • Flow-back & Produced Water Management Impoundments
  • Environmental Remediation Capping
  • Coal Combustion By-Product Management Units


Advantage:

  • Environmental protection
  • Anti-seepage
  • Anti leakage
  • Moisture-proof
  • Isolation
  • Root resistance
  • Anti puncture


Package:

all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.

Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
