| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | BV, ISO, GB, SASO, SONCAP |
| Model Number: | 1.5MM |
| Minimum Order Quantity: | 1850 square meters |
| Price: | USD 0.75-1.65 square meters |
| Packaging Details: | packed as roll with woven bags and belt |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 25 Tons per Day |
| Thickness: | 0.5mm | Application: | Flood Dykes, Landfills, Steep Slope |
|---|---|---|---|
| Material: | EVA, Polyethylene, HDPE, LLDPE, PVC, LDPE | Function: | Cover, Reinforce, Isolation, Drainage, Antiskid |
| Product Name: | Flood River Bank Cover Reinforce Antiskid HDPE 0.5mm Support Points Geomembrane Lining | Certificate: | ASTM, CE, UV, EN, ISO |
| High Light: | 0.5mm Thickness Geomembrane Lining,Anti Skid Geomembrane Lining,River Bank Cover Geomembrane Liners |
||

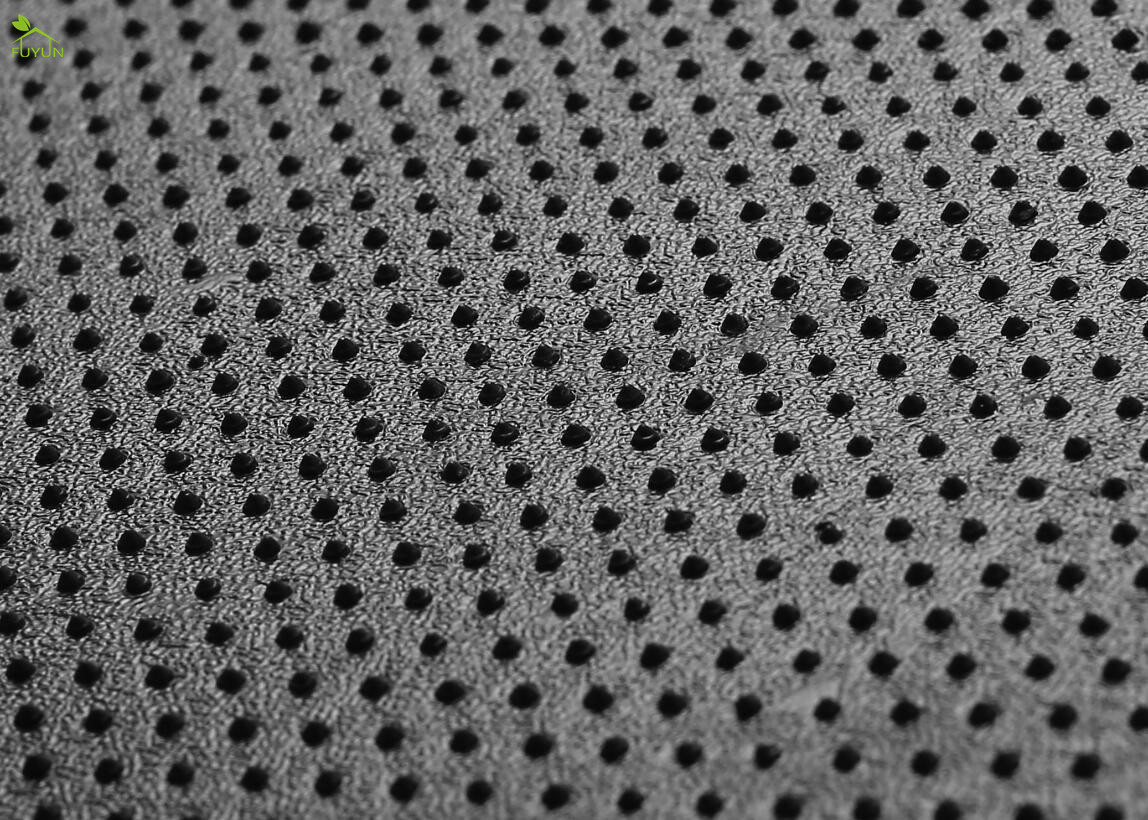

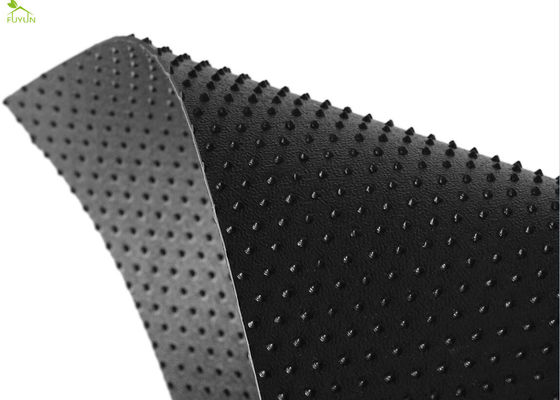

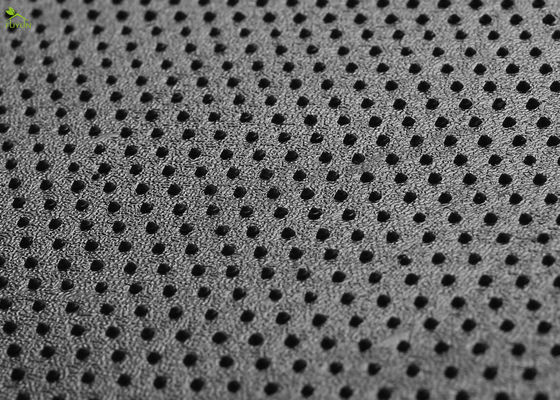

Flood River Bank Cover Reinforce Antiskid HDPE 0.5mm Support Points Geomembrane Lining
Quick Detail:
Production Description:
HDPE impervious membrane with supporting points is a new type of impervious material, including HDPE impervious membrane with one-side supporting points and HDPE impervious membrane with two-side supporting points. HDPE impervious membrane with supporting points not only has the temperature adaptability, tolerance, aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce property of HDPE smooth geomembrane, but also increases friction coefficient, has anti-skid function, and is more suitable for steep slope and vertical seepage prevention, so as to ensure the stability of the project.
The Geomembrane is a plastic sheet or film made of High Density Polyethylene(HDPE), Low density Polyethylene(LDPE) and linear low density polyethelene(LLDPE) by film blown or extrusion process. HDPE Geomembrane is the most popular anti seepage material. Its main component is 97.5% HDPE resin, about 2.5% is carbon black, anti aging component, anti oxidizing component, UV absorbent and stabilizer and so on. Strong ability for anti seepage and isolation.
Specification:
| Item | Properties | Index |
| 1 | Substrate Thickness (mm) | 0.5-2.5 |
| 2 | Height of Supporting Point (mm) | 0.6-0.75 |
| 3 | Tensile Strength (horiz & vet)Mpa | ≧25 |
| 4 | Elongation at Break (horiz & vet) % | ≧550 |
| 5 | Angle Tear Strength (horiz & vet) N/mm | ≧110 |
| 6 | Resistance to Environmental Stress Cracking F20*h | ≧1500 |
| 7 | Carbon Black Content (range) % | 2-3 |
| 8 | Impact Embrittlement at -70℃ | yes |
| 9 | Oxidation Induction Time at 200℃ | 20min |
Application
Heap Leach Pads,Secondary Containment,Oil & Gas Operations,Industrial Ponds,Food Processing Systems,Process Water,Containment,Waste Water Treatment,Bioreactor Landfills,Solid Waste Landfills, Hazardous Waste Landfills and C & D Landfills,Mining,Coal ash pond,Animal Waste Containment,Power Plants,Aquaculture,Concrete Tank Liners,Industrial and municipal water and wastewater treatment
Advantage:
Package:
Rolling with pipe in core, double layer woven bags with strengthened belt for unloading convenience and protecting.
Packaging Details:
Neutral package of Pond Liner Material
Roll Size: 4m-7.0m
Or packed according to customers' requirements such as mark the company Logo
As example:
Specification 20ft container 40ft container
0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2
0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2
1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2
1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2
2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2
weight: 129g-188g/m2
Factory Show:
Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.
Why Choose us?
FAQ:
