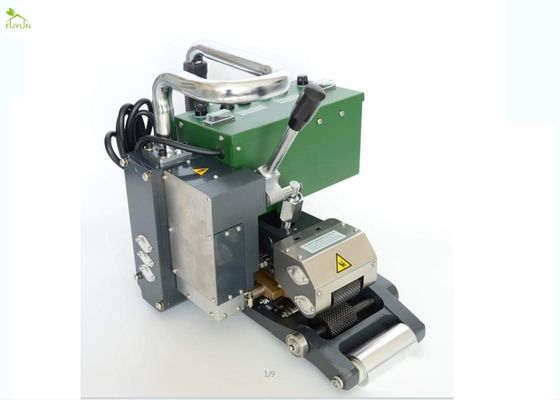

60Hz 110V HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-1880 set
Packaging Details: packed in waterproof box and standard carton
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: LDPE, EVA, PVC, PP, LLDPE, ECB, HDPE
Power: 1800w Product Name: 50/60Hz 110V 14KG HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner
Welding Temperature: 0-450°C Voltage: 110V
Welding Thickness: 0.2 -3.0mm
High Light:

110V Geomembrane Welder

,

2.0mm Thickness Geomembrane Welder

,

GB HDPE Geomembrane Welding Machine


Product Description

50/60Hz 110V 14KG HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner


Quick Detail:

machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V
power: 1800w
welding speed: 0.5-8 m/min


Product Description:


Hot Air Welding Machine is our new developed products,which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE,PVC,HDPE,EVA,PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation;speed control adopts PWM automatic voltage and speed regulation circuit,driven by DC servo motor,with great output torque and the operating is stable.It can maintain a constant speed on the condition of creeping,vertical creeping and variable road load.Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating,with high welding speed and good work quality. It is extensively used in engineering projects such as expressways,tunnels,reservoirs,waterproof of construction and so on. It is ideal for geomembranes from 0.5 to 0.8 mm thick (HDPE 1.5 mm; TPO 2.0mm).The miniwelder geo2 can be used to weld fish farm and water tanks, in foundation sealing and many other industrial areas. The miniwelder geo2 distinguishes itself through its revolutionary drive technology and its intuitive use. Temperature and speed easily can be activated and deactivated by means of two buttons, and adjusted using two dials. The current process status is displayed by two LEDs.



New generation geomembrane welder for 1-3mm material with temperature and speed display screen at the same time-- Against on abundant operation experience of previous model-- Only with temperature display screen.
Solved the issues as below:
☑ Advanced intelligent digital control system can accurately display the welding speed per minute.
☑ You don't need to use a stopwatch to time, for example: You use 1.5mm material, turn on the temperature to 350℃, and see how long the welding distance is in one minute. It will waste your much time on this.


Maintenance:

Please clean the dunghill in the thermal wedge and the mud in the chain guard and oiled the whole machine to the dry place when not using it.





Technical Parameters:



Item no.: SWT-NSGM1
Size 340*350*360mm
Weight 14KG
Voltage: 220V, 110V
Frequency: 50/60HZ
power 1200W
Welding Speed 0.5-8 m/min
Thickness of material 0.2-2.0 mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
0-450°C

Seam Strength ≥85% base material ( tensile resistant in shear direction)



Application:


Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.

60Hz 110V HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner 0

Advantage:



1. Contorl System:Advanced intelligent digital control system which temperature and speed readed on LCD screen.
2. Pressure Adjustment System:advanced"T"jib design and pressure regulation structure.
3. Pressure Roller:special stainless steel pressure roller with strong pressure force.
4. Hot Air Heating System:advanced hot air heating system perfects the welding quality even if corrosive material and bad working environments.



Package & Delivery:

Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)

60Hz 110V HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner 1


Why choose us?

60Hz 110V HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner 2

FAQ:

60Hz 110V HDPE LDPE Geomembrane Welder For 2.0mm Thickness Landfill Cover Liner 3
