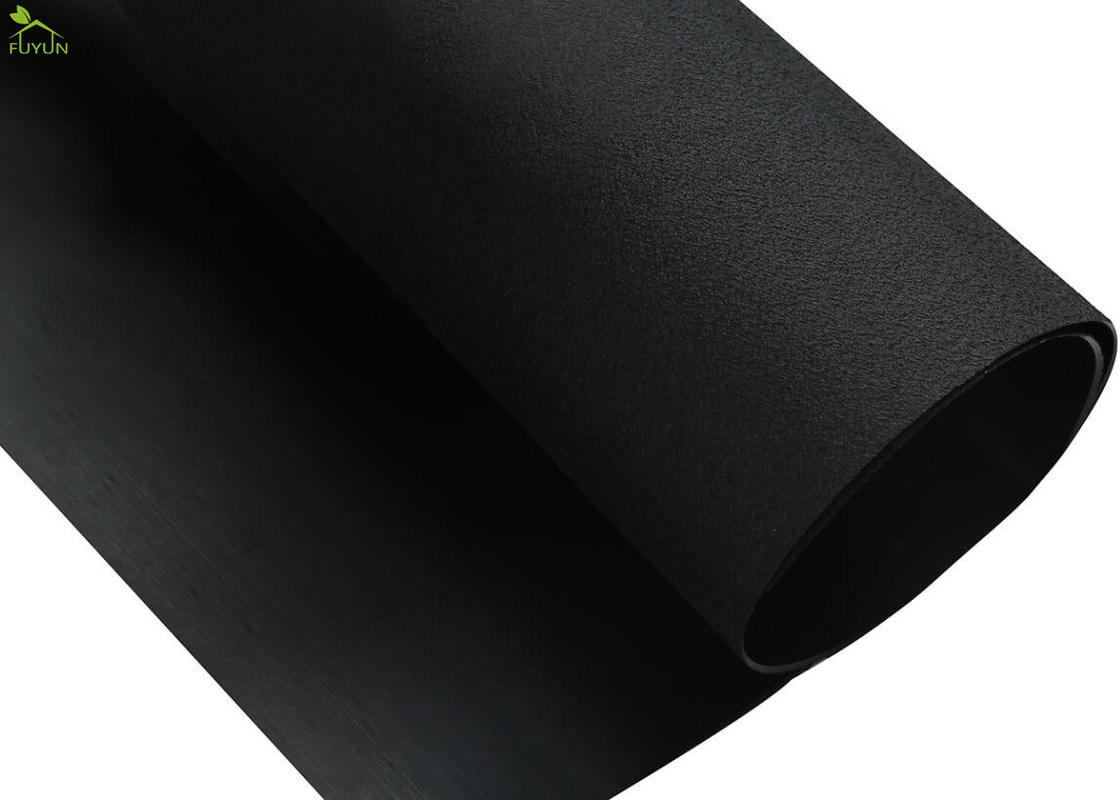

Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ISO, SASO, GB, SONCAP, BV, ASTM
Model Number: 1.5MM
Minimum Order Quantity: 1500 square meters
Price: USD 1.05-1.55 square meters
Packaging Details: packed in roll with pipe core and woven bag
Delivery Time: 7 Days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Application: Flood Bank, Riverbed, Slope, River Dam, Flood Dyke Material: HDPE, PVC, LDPE, EVA, Polyethylene, LLDPE
Function: Anti-seepage, Reinforce, Protect, Cover Product Name: Rough 8m Width Geotech Fabric Plastic Dam Liners For Steep Slope Protection
Thickness: 1.5mm Width: 5m, Customize
High Light:

5m Width Geotech Fabric


Rough Surface Geotech Fabric


Steep Slope Protection Geotech Fabric

Product Description

Rough Surfece 5m Width Geotech Fabric Plastic Dam Liners for Steep Slope Protection



Quick Detail:

  • material: HDPE, polyethylene, LLDPE, EVA, PVC
  • length: 150m
  • width: 5m
  • thickness:  1.5mm
  • function: antiseepage, protect, reinforce, cover
  • application: dam, flood dyke, dikes, riverbed


Production Description:


Geomembrane is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications. is made from polyethylene resins materials by blow molding process.According to the different raw materials, Geomembrane can be divided into HDPE geomembrane,LDPE Geomembrane, EVA Geomembrane and PVC Geomembrane,etc.


HDPE anti-seepage composite geomembrane with rough surface is a new type of anti-seepage material. Single rough surface and double rough surface increase friction coefficient and anti-skid function, which is more suitable for steep slope and vertical anti-seepage and provides engineering stability.


It has excellent temperature adaptability, weldability, tolerance and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce performance. Therefore, it is especially suitable for underground engineering, mining engineering, sewage and waste residue treatment plant as impermeable materials.





Item Properties Unit Thickness
  1.0 1.25 1.5 2.0 2.5 3.0
1 Roughness Height mm 0.25
2 Minimum Density g/cm3 0.939
3 Breaking Strength N/mm 10 13 16 21 26 32
4 Elongation at Break % 100
5 Right Angle Tear Strength N 125 156 187 249 311 374
6 Puncture Strength N 267 333 400 534 667 800
7 Stress Crack Resistance Hrs 300
8 Carbon Black Content (range) % 2.0-3.0
9 Low Temperature Impact Embrittlement at -70℃ / ok
10 Water Vapor Permeability Coefficient(gNaN/cm2.s.p.a) / ≤1.0*10-13
11 Dimensional Stability % ±2




Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 0





1. Seepage proof lining of subway, basement and tunnels.

2. Prevention of seepage by salting of roadbed and other foundations.

3. Horizontal impervious blanket in front of embankment and dam, vertical impervious layer in foundation, construction cofferdam and waste yard.

4. Seawater and freshwater aquaculture farms.

5. Roadbed of highways, expressways and railways; Waterproof layer of expansive soil and collapsible loess.

6. Seepage prevention of roof.

7. Garbage landfills, river banks, lake dam, tailings dam, sewage dam and reservoir areas, channels, liquid storage ponds (pits, mines)


Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 1





1. High flexibility; high waterproof coefficient
2. Could be used in the temperature of -70~~110 degree
3. Good stability, anti acid and alkali, anti erosion
4. High climate bearing ability, excellent in anti-aging
5. High tensile strength and elongation, can be used in bad geology and climate, especially by used is the soil uneven sedimentation
6. High friction coefficient





all products will be packed in woven bags with belt, and we gurantee the product good when customer receive it.

Packaging Details:

Neutral package of Pond Liner Material

Roll Size: 4m-7.0m

Or packed according to customers' requirements such as mark the company Logo

As example:

Specification 20ft container 40ft container

0.5mm 5.8/7*420m/roll 16rolls/38976m2 19rolls/55860m2

0.75mm 5.8/7*280m/roll 16rolls/25984m2 19rolls/37240m2

1mm 5.8/7*210m/roll 16rolls/19488m2 19rolls/27930m2

1.5mm 5.8/7*140m/roll 16rolls/12992m2 19rolls/18620m2

2.0mm 5.8/7*105m/roll 16rolls/9744m2 19rolls/13965m2

weight: 129g-188g/m2

Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 2



Factory Show:


Hefei Fuyun Environmental Sci-Tech Co.,ltd, established in 2019, is an enterprise specializing in solving environmental leakage, anti-corrosion, waterproof, moisture-proof. We provide the complete solution of engineering planning, design and construction of waterproof, moisture-proof, anti-seepage, anti-corrosion. Products includes Geo-membrane, HDPE(High Density Polyethylene) Impermeable membrane, Geo-textile, Geo-grid having passed ISO9001, ISO14001, OSHSA18001 quality and management certification. Our products are widely used in environmental protection, aquaculture, highway, railway, tunnel, reservoir, water conservancy, artificial lake, mining, agriculture, landscape, petroleum and petrochemical industries. Our products are popular in the Southeast Asia,Europe USA, Australia, New Zealand, Mexico,the Middle East Africa and other regions in the world.


Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 3



Why Choose us?


Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 4




Rough Surfece 5m Width Geotech Fabric Plastic For Steep Slope Protection 5
