HDPE Geomembrane Welding Machine High Efficiency ISO Standard

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB
Model Number: SWT-NSGM1
Minimum Order Quantity: 1 Set
Price: USD 1000-1850 set
Packaging Details: packed in waterproof box and standard carton
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 50 Sets per Day
Detail Information
Frequency: 50/60Hz Application: HDPE, PVC, ECB, PP, LDPE ,EVA
Power: 1200w Product Name: 220V 110V 1200W Plastic HDPE LDPE PVC Geomembrane Hot Wedge Welder SWT-NSGM1 Made In China
Welding Temperature: 0-450°C Voltage: 220 V ± 5%, 100V
Welding Thickness: 0.2 -2.0mm
High Light:

ISO HDPE Geomembrane Welding Machine

,

HDPE Geomembrane Welding Machine High Efficiency

,

ISO hdpe wedge welder


Product Description

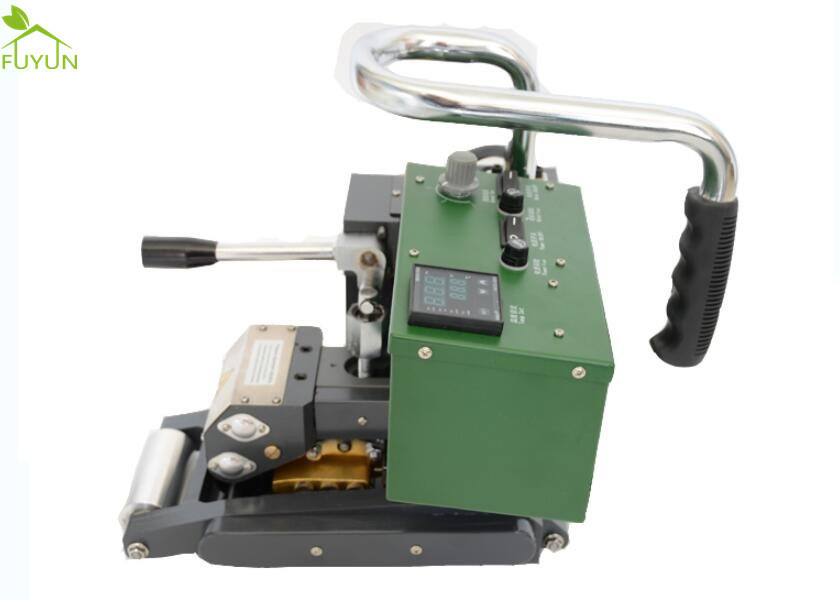

220V 110V 1200W Plastic HDPE LDPE PVC Geomembrane Hot Wedge Welder SWT-NSGM1 Made In China





Quick Detail:



machine size: 340*350*360mm

weight: 14kg

frequency: 50/60Hz

voltage: 220 V ± 5%, 110V

power: 1200w

welding speed: 0.5-8 m/min





Product Description:



Geomembrane Hot Wedge Welding Machines are also called Hot Air Welding, Hot wedge welders, Membrane Hot Wedge Welder. SWT-NS series geo-membrane welding machine is our new developed products, which can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.Hot Wedge Welder is small, light, high welding efficient. This hot wedge welder is available for welding HDPE, LDPE ,EVA ,PVC, ECB, PP and other hot melt materials.



The hot wedge welder controller adopts PID control, small temperature fluctuation, and automatic constant temperature control. The speed control uses a PWM automatic voltage regulation speed circuit. With DC servo motor drive, a large output torque and nailing performance when walking. In the case of vertical crawling and road loads, a constant speed can be maintained. Despite the changes in external temperature and voltage, the welder's performance is still stable.





Technical Parameters:



Item no.: SWT-NSGM1
Size 340*350*360mm
Weight 14KG
Voltage: 220V, 110V
Frequency: 50/60HZ
power 1200W
Welding Speed 0.5-8 m/min
Thickness of material 0.2-2.0 mm
Welding width 15 mm *2, interior cavity 20 mm
Overlap width 120 mm
Welding temperature
0-450°C

Seam Strength ≥85% base material ( tensile resistant in shear direction)





Application:



Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.



HDPE Geomembrane Welding Machine High Efficiency ISO Standard 0



Advantage:



1.Contorl System:Advanced intelligent digital control system which temperature and speed readed on LCD screen.
2.Pressure Adjustment System:advanced"T"jib design and pressure regulation structure.
3.Pressure Roller:special stainless steel pressure roller with strong pressure force.
4.Hot Air Heating System:advanced hot air heating system perfects the welding quality even if corrosive material and bad working environments.





Package & Delivery:



The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.



HDPE Geomembrane Welding Machine High Efficiency ISO Standard 1





Why choose us?



HDPE Geomembrane Welding Machine High Efficiency ISO Standard 2



FAQ:



HDPE Geomembrane Welding Machine High Efficiency ISO Standard 3

0-450°C
