| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, EN, GB, BV,CE, SGS |
| Model Number: | 50×6 |
| Minimum Order Quantity: | 1500 Square Meters |
| Price: | USD 0.1-0.6 Square Meter |
| Packaging Details: | woven bag in roller, width from 1m to 6m,length from 50m to 200m |
| Delivery Time: | 7 Days |
| Payment Terms: | Paypal, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Tons per Day |
| Weight: | 800 G/㎡ | Application: | Road And Railway Foundation, River Dam, Coastal Beach |
|---|---|---|---|
| Material: | Polyester, Polypropylene | Function: | Filtration, Reinforcement, Isolation |
| Product Name: | Geotechnical Engineering Polypropylene Filament Woven Filtration Reinforce Isolation 50×6 Geotextile Liners | Certificate: | ASTM, EN, GB, ISO |
| High Light: | 800G/m2 Geotech Fabric,Polypropylene Geotech Fabric,Polypropylene Woven Geotextile Fabric |
||

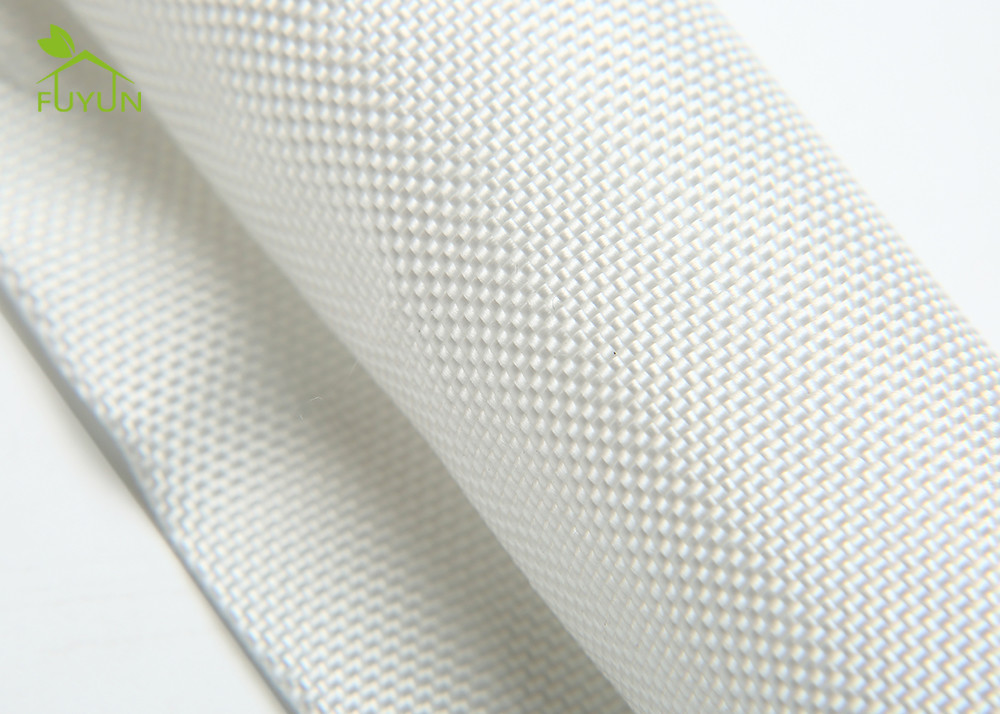

Geotechnical Engineering Polypropylene Filament Woven Filtration Reinforce Isolation 50×6 Geotextile Liners
Quick Detail:
function: filtration, reinforcement and isolation
type: 800 gsm
application: road and railway foundation, river dam, coastal beach
material: polyester, polypropylene
Product Description:
Filament woven geotextile that FUYUN produced has the advantages of low cost, high strength, low elongation, durability and corrosion resistance, which is made of virgin polypropylene and polyester fibers. Woven fabric has stable structure and high engineering parameter compliance rate, which can meet the different purposes of various geotechnical engineering, including the requirements of filtration, isolation, reinforcement, protection and other purposes. It is a high-value product in geotechnical engineering. In order to ensure the stability and balance of the product structure and the up to standard rate of engineering parameters, our company's filament woven geotextiles are all produced by wide shuttleless loom.
FUYUN polypropylene woven geotextile is woven and blended by at least two rows of parallel yarns (or tape yarn) using different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications. So our polypropylene woven geotextile is high in strength to allow for maximum slope support, stabilization and erosion control. Our Polypropylene woven geotextile is relatively light in weight, strong tensile strength, smaller elongation as well as brilliant stability. It is widely used in roads, pavements, railroads, structures and water conservancy project and so on.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 1 | Mass Deviation Per Unit Area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | ||
| 2 | Thickness(mm ,≧) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 40-80 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Horizontal & Vertical | |
Application:
Advantage:
It has good mechanical properties, water permeability, corrosion resistance and aging resistance.
It has strong anti burying and anti-corrosion performance, fluffy structure and good drainage performance.
It has good friction coefficient, tensile strength and georeinforcement performance.
It has the functions of isolation, filtration, drainage, protection, stabilization and strengthening.
It can adapt to the uneven base, resist the damage of external force, and has small creep.
Good overall continuity, light weight and convenient construction.
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It casn be shipped in 7 days.
