Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ASTM, SGS, EN, ISO, GB, BV
Model Number: 50×6
Minimum Order Quantity: 500 Square Meters
Price: USD 5.15-9.5Square Meter
Packaging Details: standard packed in woven bag and tight belt, rolling size, width: 1-6m, length: 20-55m
Delivery Time: 7 Days
Payment Terms: D/P, Paypal, T/T, Western Union, L/C, D/A, MoneyGram
Supply Ability: 50000 Square Meters per Day
Detail Information
Material: High Quality Geotextile, Cement, Bentonite And HDPE (geomembrane) Product Name: Platform House Roof Antiseepage Cover Geosynthetic Cementitious Composite Fabric Lining Liners
Function: Antileakage, Strengthen, Isolation,cover, Waterproof Size: 50m*6m
Application: Road Construct, Recreational Ponds,cut Off Wall, Golf Course Ponds, Stormwater Management Ponds., Anhydrous Ammonia Tank, Artificial Landscape Engineering, Artificial Water Features Project, MOQ: 200 Square Meters
Color: Depends On Customer Package: Woven Bag, Waterproof Film, Pallet
High Light:

Geosynthetic Liners Anti Seepage

,

House Roof Geosynthetic Clay Liners

,

50mx6m Geosynthetic Liners


Product Description

Platform House Roof Antiseepage Cover Geosynthetic Cementitious Composite Fabric Lining Liners



Quick Detail:



component: geotextile, sodium bentonite and HDPE (geomembrane), cement

size: 55*6m

function: antileakage, strengthen, isolation

application: platform, anhydrous ammonia tank, artificial landscape engineering, artificial water features project



Product Description:


Geosynthetic clay liners (GCLs) are manufactured by needling or stitching in Tinhy’s own factory with a layer of sodium bentonite or other low-permeability materials like geotextiles and geomembranes to form a durable hydraulic barrier.

As per environmental laws and regulations, any seepage from solid waste landfills must be collected properly to avoid the contamination of surrounding groundwater which may lead to major environmental problems. Our GCLs will take a great effect on the anti-seepage projects of any landfills because of low hydraulic conductivity.



Technical Parameter:



No. Item Technical Index
GCCM-NP GCCM-OF GCCM-AH
1 GCCM (g/㎡) 4000 and not less than the specified value 4000 and not less than the specified value 4000 and not less than the specified value
2 Swelling Index of Bentonite (ml/2g) 24 24 24
3 Absorption of Blue ( g/100g) 30 30 30
4 Tensile Strength (N/100mm) 600 700 600
5 Elongation at Maximum Load % 10 10 8
6 Peel Strength(N/100mm) Non Woven and Woven Fabrics 40 40 /
PE Film and Non Woven Fabrics / 30 /
7 Permeability Coefficient (m/s) 5.0x10^-11 5.0x10^-12 1.0x10^-12
8 Hydrostatic Pressure Resistance 0.4MPa, 1h, no seepage 0.6MPa, 1h, no seepage 0.6MPa, 1h, no seepage
9 Filtration Loss (ml) 18 18 18
10 Durability of Bentonite 20 20 20




Application:

  • All stages of landfill applications Landfills (floor, wall and cap liner)
  • Ponds
  • Dams and dam wall liner
  • Containment areas
  • Cut-off walls
  • Canal Linings
  • Waterproofing concrete structures
  • Road/Rail embankments

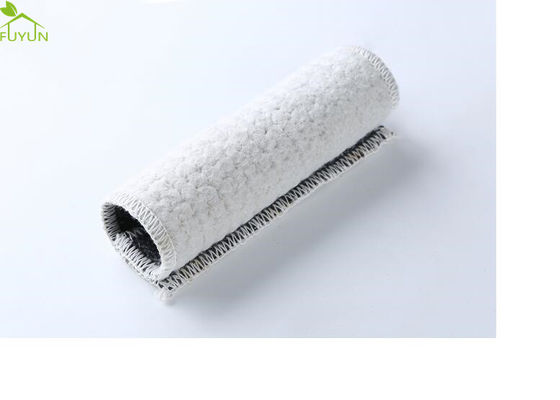

Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 0Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 1

Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 2

Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 3



Installing Note:



1, Before GCCM construction, foundation should be inspected, the foundation should be rammed flat, no potholes or water, no gravel or roots or other sharp objects.

2, In the process of handling and construction, GCCM should be to avoid vibration and impact, to avoid  large degree of bending.

3. After installing and acceptance of GCCM, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomemes, geomemes shall be installed and welded in time to prevent them from being wet or broken by rain.



Advantage:

  • Improved leakage performance
  • Permanent waterproof performance
  • Simple construction and short time limit for a project
  • Not influenced by air temperature
  • A kind of green material and good to environmental protection
  • More versatile than compacted clay
  • Increased airspace and liner efficiency

​​Package:

products will be well woven and belt packed, and we gurantee the product good before the customer receive. Besides, products can be packed as customer's special requirement.



Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 4



Delivery:



Product will be loaded carefully to make sure it can be well received. 20GP Container can load around 17.5 tons, 40HQ 24.5 tons. It can be shipped in 7 days.



Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 5



Supply Ability:



25 tons per 8hrs.



Factory Show:



Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 6

Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 7



FAQ:



Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 8



Why Choose US:



Platform House Roof Antiseepage Cover Geosynthetic Liners 50mx6m 9
