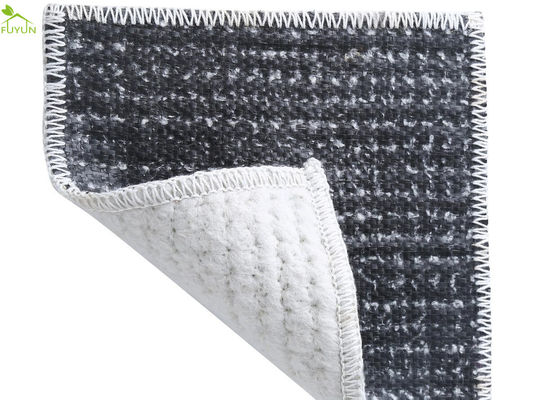

ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: CE, EN, ISO, SGS, GB, BV
Model Number: 30×6
Minimum Order Quantity: 1670 Square Meters
Price: USD 1.15-4.8 Square Meter
Packaging Details: customize, woven bag and tight belt package, rolling size, width: 1-6m, length: 20-50m
Delivery Time: 7 Days
Payment Terms: L/C, T/T, D/P, Paypal, Western Union, D/A, MoneyGram
Supply Ability: 35500 Square Meters per Day
Detail Information
Material: Geotextile, Inorganic Bentonite, HDPE (geomembrane) Product Name: Stormwater Impoundments Watersaving Antiseepage Reinforce Geosynthetic Clay Liner Blanket 30×6 GCL
Function: Watersaving, Antiseepage, Reinforce Size: 30m*6m
Application: Stormwater Impoundments, Reservoir Package: Customize, Woven Bag And Tight Belt Package, Rolling Size, Width: 1-6m, Length: 20-50m
High Light:

30m*6m Geosynthetic Clay Liners

,

ISO Geosynthetic Clay Liners

,

30m*6m Clay Liners For Pond


Product Description



Stormwater Impoundments Watersaving Antiseepage Reinforce Geosynthetic Clay Liner Blanket 30×6 GCL





Quick Detail:



component: geotextile, inorganic bentonite, HDPE (geomembrane)

size: 30*6m

function: watersaving, antiseepage, reinforce

application: stormwater impoundments, reservoir





Product Description:



FUYUN GCL (bentonite waterproof geosynthetic clay liners) also named bentonite composite waterproof blanket or pad has four layers which are are high-performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven). when hydrated under a confining load, the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compacted clay.



FUYUN GCL can be constructed under the negative temperature (-20℃), while the traditional waterproof material cannot, because bentonite is inorganic material having better durability than that of organic waterproof material.





Technical Parameter:



No. Item Technical Index
GCL-NP GCL-OF GCL-AH
1 GCL (g/㎡) 4000 and not less than the specified value 4000 and not less than the specified value 4000 and not less than the specified value
2 Swelling Index of Bentonite (ml/2g) 24 24 24
3 Absorption of Blue ( g/100g) 30 30 30
4 Tensile Strength (N/100mm) 600 700 600
5 Elongation at Maximum Load % 10 10 8
6 Peel Strength(N/100mm) Non Woven and Woven Fabrics 40 40 /
PE Film and Non Woven Fabrics / 30 /
7 Permeability Coefficient (m/s) 5.0x10^-11 5.0x10^-12 1.0x10^-12
8 Hydrostatic Pressure Resistance 0.4MPa, 1h, no seepage 0.6MPa, 1h, no seepage 0.6MPa, 1h, no seepage
9 Filtration Loss (ml) 18 18 18
10 Durability of Bentonite 20 20 20






Application:

  • golf course pond, golf course lake

  • swimming pool

  • artificial lake waterscape engineering

  • landfill, chemical storage yard and underground garage

  • oil depot & storage tank

  • roof garden, irrigation channel

ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 0



Installing Note:



1, Before GCL construction, foundation should be inspected, the foundation should be rammed flat, no potholes or water, no gravel or roots or other sharp objects.

2, In the process of handling and construction, GCL should be to avoid vibration and impact, to avoid  large degree of bending.

3. After installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomemes, geomemes shall be installed and welded in time to prevent them from being wet or broken by rain.





Advantage:

  • good resistance of strong compactness
  • long-term performance of waterproof
  • environmental friendly material
  • stable function in extreme air temperature
  • construction period short and simple construction





​​Package:



if no requirement from customer, products are loaded in woven bags with tight belt. products can also be packed as customer's special requirement.



ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 1





Delivery:



products are load and delivery on time accord to customer's requirement. products can be loaded in weeked and some holidays. 20 GP loads 17tons, 40HQ can load 27 tons.



ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 2





Supply Ability:



25 tons per 8hrs.





Factory Show:



ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 3

ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 4





FAQ:



ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 5



Why Choose US:



ISO 30m*6m Geosynthetic Clay Liners For Stormwater Impoundments Pond 6
