Place of Origin: | Hefei, China |
---|---|
Brand Name: | FUYUN |
Certification: | ASTM, ISO, GB, GM13 |
Model Number: | GS-100-600 |
Minimum Order Quantity: | 2000 Square Meters |
Price: | USD 4.5-8.35 Square Meter |
Packaging Details: | packed in belts, wood pallet, waterproof film |
Delivery Time: | 7 Days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
Supply Ability: | 20000 Square Meters per Day |
Material: | LLDPE, PET, LDPE, PP, High-density Polyethylene (HDPE) | Product Name: | Anti Erosion 100mm Height HDPE Geocells Inclined Surface 600mm Width For Retaining Wall |
---|---|---|---|
Application: | Beach, Subway, Retaining Wall, Channel Protection, Horse Paddock, Pavement, Dam, Slope, Road Construction | Function: | Anti Erosion, Retention, Stabilize, Increase Bearing Capacity, Drainage, Slope Protection, Soil Reinforcement, Gravel Stabilizer |
Height: | 100mm | Package: | Wood Pallet, Waterproof Films |
Color: | Black | Charasteristics: | High Bearing Capacity, Acid, Alkali And Corrosion Resistance, High Strength |
High Light: | HDPE Geocell Anti Erosion,HDPE Geocell 100mm Height,Inclined HDPE Geocells |

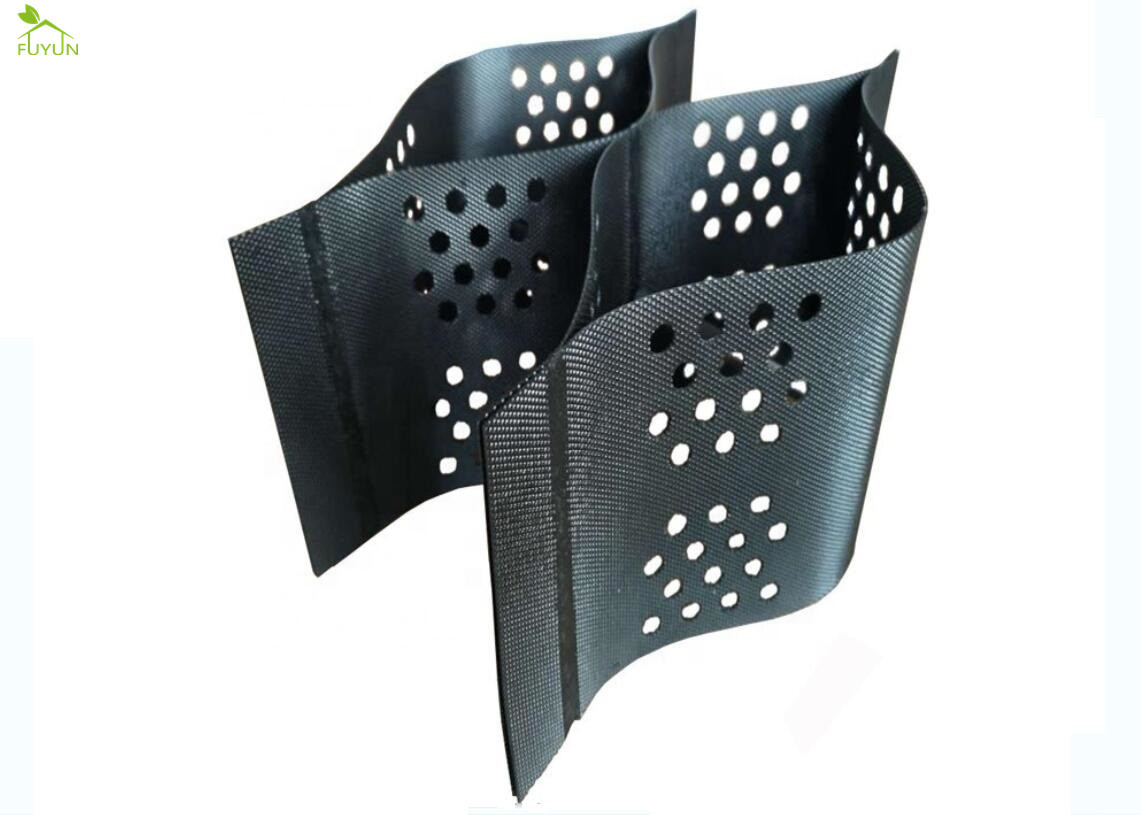

Anti Erosion 100mm Height HDPE Geocells Inclined Surface 600mm Width For Retaining Wall
Quick Detail:
material: PET, PP, plastic, High-density polyethylene (HDPE), LDPE
height: 150mm
function: drainage, soil reinforcement, gravel stabilizer, slope protection, increase bearing capacity
application: rataining wall, horse paddock, pavement, dam, slope, subway, channel
Product Description:
Geocell prevents the material from being lost by factors such as water and wind. This is its most important benefit. It can be used for two main purposes: erosion control and ground reinforcement.
In erosion control applications, the type of cellular confinement system is selected considering the slope, the forces acting on the system and the properties of the material to be filled into the geocell. The geocell system provides protection against severe erosion by surface runoff.
Cellular confinement systems are used to form a carrier platform on highways and railways and to increase the bearing capacity of the ground. In soil reinforcement applications, the cellular confinement system is selected by taking into account the characteristics of the ground, the type of application, the fixed and live loads acting on the ground.
Technical Parameters:
item | GS-50-400 | GS-75-400 | GS-100-400 | GS-150-400 | GS-200-400 |
height(mm) | 50 | 75 | 100 | 150 | 200 |
thickness of the sheet (mm) | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 |
weld distance (mm) | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 |
tensile strength of weld points (N/cm) | ≧100 | ≧100 | ≧100 | ≧100 | ≧100 |
tensile strength of connection of cells (N/cm) | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 |
tensile strength at yield of each sheet(N/cm) | ≧20 | ≧20 | ≧20 | ≧20 | ≧20 |
Application:
1. stable the bed of railway and road
2. bear the bed of road
3. bear the loading dykes and walls
4. administer shallow water and river
5. support pipeline and sewer
6. prevent landslide and to be used as compound walls to support loading
7. be used in dependent walls,wharfs and bank and so on
8. govern sand,beach,river bank and riverbed
Advantage:
Geocell cellular confinement systems applications have many advantages. We may list these advantages as follows;
It allows the use of natural filling materials instead of expensive filling materials in the application area.
In addition to being economical, it provides more than 50% reduction in filling depth compared to classical methods.
Three-dimensional cells ensure the compression of the filling material, increasing the bearing capacity and it prevents collapses.
It plays an important role in increasing the hardness ratio of the structural filling and thus gains strength.
Due to its structure, it provides a natural drainage structure, while at the same time it prevents the filling material from being damaged by hydraulic flows.
Package:
all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.
Delivery:
all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.
