500g/M2 HDPE Shrimp Pond Liner With 150 / 0.25 Composite Geo

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: ISO, GB, BV, SASO, SONCAP
Model Number: 150/0.25
Minimum Order Quantity: 2000 Square Meters
Price: USD 0.45-2.5 Square Meter
Packaging Details: Rolling in Woven Bag, Width 2-6m, Length 50-100m
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 25 Tons per Day
Detail Information
Material: PP, HDPE, Polypropylene, PET, Polyester Length: 100m
Width: 6m Product Name: 500g/M2 HDPE Shrimp Pond Liner With 150/0.25 Composite Geo Fabric Cloth
Application: Tunnel Construction, River Bank, Sea Coast Function: Cover, Protection, Waterproofing,anti-seepage,isolation
Roll Length: 50m Weight: 500g/m2
High Light:

500g/M2 HDPE Pond Liner

,

Composite Geo HDPE Pond Liner

,

Composite Geo Pond Liner


Product Description

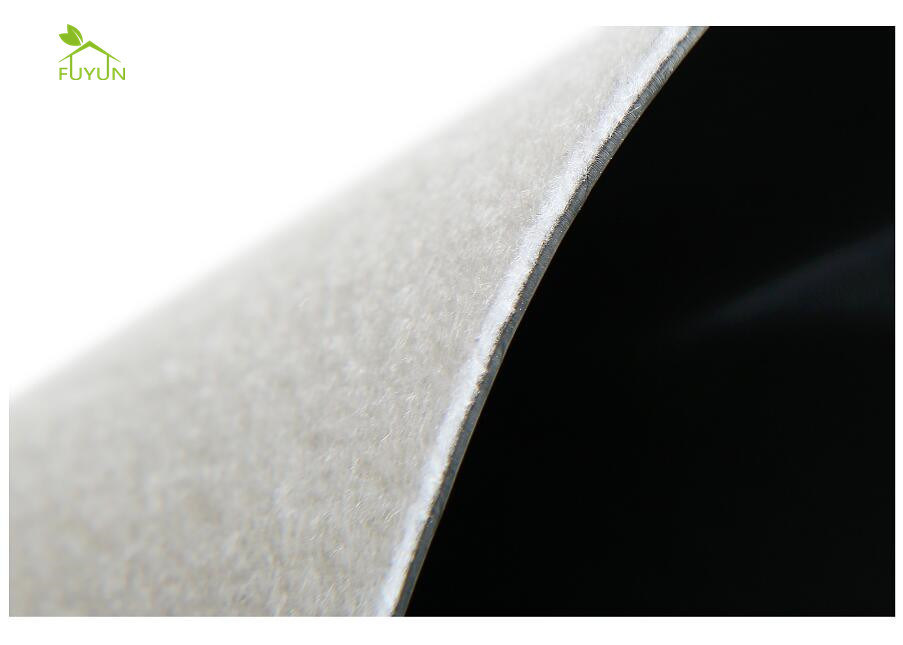

500g/M2 HDPE Shrimp Pond Liner With 150/0.25 Composite Geo Fabric Cloth





Quick Detail:



weight: 500g/㎡

thickness: 0.5mm

function: cover, Isolation, Drainage, Anti-seepage, Guard, Reinforce, filtering

application: tunnel construction, sea coast, river bank





Product Description:



Composite geomembrane is a kind of impervious material compounded of geotextile and geomembrane. It has many types: one textile one membrane, two textiles one membrane, many textiles many membranes and so on. Composite geomembrane is mainly used for drainage and reinforcement, has the advantages of acid and alkali-resistance, good infiltration-resistance, pull-resistance, tearing-resistance, hi -bursting strength and so on,mainly for waterpfoor purpose.



Composite geomembrane can be used for seepage control of various water conservancy projects, such as river seepage prevention project, river treatment project, artificial lake seepage control project, landscape lake seepage prevention project, dike seepage prevention project, canal seepage prevention project etc.





Product Specification:

  • 1-cloth-1-film: basic cloth: 100-1000 g/㎡, film thickness: 0.1-1.5mm
  • 2-cloth-1-film: basic cloth: 80-600 g/㎡, film thickness: 0.2-1.5mm
  • 1-cloth-2-film: basic cloth: 100-1000 g/㎡, film thickness: 0.1-0.8mm
  • multi-cloth-multi-film: basic cloth: 100-1000 g/㎡, film thickness: 0.1-0.8mm



Technical Parameter:



Weight(g/㎡) 400 500 600 700 800 900 1000
PE CG Thickness(mm) 0.20-0.35 0.30-0.60
Common Specs 1-cloth-1-film(g/) 150/0.25 200/0.3 300/0.3 300/0.4 300/0.5 400/0.5 400/0.6
2-cloth-1-film(g/) 100/0.2/100 100/0.3/100 50/0.3/150 200/0.3/200 200/0.4/200 200/0.5/200 50/0.5/250
Quality Deviation per Unit Area(%) -10
Fracture Strength(KN/m) 5 7.5 10 12 14 16 18
Break Elongation(%) 30-100
Tear Strength(KN) 0.15 0.25 0.32 0.4 0.48 0.56 0.62
CBR Breakout Force(KN) 1.1 1.5 1.9 2.2 2.5 2.8 3
Vertical Permeability Coefficient(cm/s) ≤ 10-12
Hydrostatic Pressure Resistance (Mpa) 0.4-0.6 0.6-1.2
  1. PE CG Thickness(mm) 0.2-0.8mm
2.According to the technical requirements of the demander, the welding edge of composite geomembrane can be reserved or not





Advantage:



1. High puncture resistance and high friction coefficient.
2. Good aging resistance and wide range of ambient temperature.
3. Excellent drainage resistance.
4. It is suitable for water conservancy, chemical industry, construction, transportation, subway, tunnel, garbage disposal site and other projects.





Application:

  • Water Conservancy Dam
  • Traffic Culvert
  • Road
  • Airport
  • Housing
  • Drainage
  • Environmental Protection

500g/M2 HDPE Shrimp Pond Liner With 150 / 0.25 Composite Geo 0



500g/M2 HDPE Shrimp Pond Liner With 150 / 0.25 Composite Geo 1



Package:



Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.







Delivery:



Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons





Supply Ability:



25 Tons Per Day





Factory Show:



500g/M2 HDPE Shrimp Pond Liner With 150 / 0.25 Composite Geo 2

FAQ:



500g/M2 HDPE Shrimp Pond Liner With 150 / 0.25 Composite Geo 3
