| Place of Origin: | Hefei,China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ISO, GB, EN, CE |
| Model Number: | JIT-800 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 1000-1950 set |
| Packaging Details: | packed in waterproof box and standard carton |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 50 Sets per Day |
| Frequency: | 50/60Hz | Application: | LDPE, EVA, ECB,LLDPE, HDPE, PVC, PP |
|---|---|---|---|
| Power: | 800w | Product Name: | JIT-800 0.5mm PVC HDPE LDPE Landfills Fishpond Liner Geomembrane Liner Welding Machine |
| Welding Temperature: | 0-450°C | Voltage: | 110V-220V |
| Welding Thickness: | 0.5mm | Origin: | Made In China |
| High Light: | Landfills Liner Welding Machine,Geomembrane Liner Welding Machine,Fishpond HDPE Geomembrane Welding Machine |
||

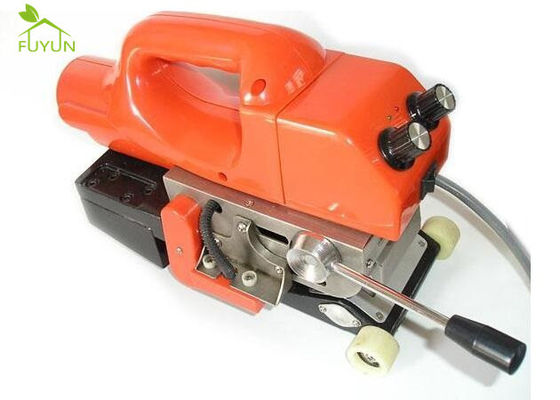

JIT-800 0.5mm PVC HDPE LDPE Landfills Fishpond Liner Geomembrane Liner Welding Machine
Quick Detail:
machine size: 340*350*360mm
weight: 14kg
frequency: 50/60Hz
voltage: 110V-220V
power: 800w
welding speed: 0.5-8 m/min
Product Description:
geomembrane welding machine is high quality automatic hot air welding machine, it is of new design and technology, which can weld geomembrane of various thicknesses and are applicable for welding material such as PE, LDPE, HDPE, EVA, PP and the like. JIT-800 is allowed to be sold before strict inspection. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
Motor drives upper and lower pressure rollers to rotate through reduction gearbox and chain. Slide carriages drive the hot wedge and insert it between the two base materials, at the same time lever presses pressure rollers and engages the two fused base materials.
As welding quality is direct related to speed and temperature setting during operating, so welding machine must be specified personnel operated to reach excellent quality and high efficiency.
1. Use with grounded 3-cord mains cable and 3-hole socket with capacity not less than 10A (socket corresponds with welder plug, phase L connected to live wire, N to zero line, phase ╧ to grounded protection line), confirm that external lines have been well connected. Check that power is on off state and regulate temperature control potentiometer and speed control potentiometer to zero position, pressing pressure handle down to separate the upper and lower pressure rollers, then insert the plug.
2. Turn on the power and select certain temperature and speed, take some narrow materials for try welding. Temperature selection may be different for the same material at different ambient temperature and material thickness. To determine the best welding effect, adjust the speed to approximately 2.3m/min, and then increase temperature from low to high slowly (approximately 250℃-350℃).
Technical Parameters:
| Voltage (V) | 220V |
| Frequency (Hz) | 50Hz/60Hz |
| Power | 800W |
| Pressure rollers | Silicone pressure rollers and Steel pressure rollers |
| Thickness of material to be welded | 0.2-1.5mm |
| Heating temperature | 20-450℃ |
| Welding speed | 0.5-6m/min |
| Welding width | 12.5mm×2, interior cavity 12.5mm |
| Seam strength | ≥85% base material (tensile resistant in shear direction) |
| Net Weight | 5.0kg |
| Insulation class | Class I |
Replacement of Components
Remove the front end cover, remove the 4-M4 screws and tapping screw, remove a half housing, release 4-M3 screws, remove the 2-M5 screws that connect heating support and slide carriage, remove hot wedge and replace with a new one, and reassemble the complete machine (shown as fig.7). Note: conform to color on wiring.
The position of the wedge should be adjusted when welding the different thickness geomembranes, especially when the thickness of geomembranes are too difference. When welding the thin one, the peak of the wedge should be adjusted as close as possible to the pressure rollers, and vice versa. The method of adjustment is shown as Fig.7. Release the 2 M5 screws, and adjust the wedge forward and backward slightly. (Note: after adjustment, the peak of the wedge should be parallel with the axle of the pressure roller. Otherwise, it leads to different welding effects. Do not jack up the axle of the pressure roller when adjust the wedge close to the roller).
Application:
Fuyun Hot Wedge Welding Machine is is used to weld various thicknesses of geomembrane and is suitable for welding hot melt materials, such as LDPE, PVC, HDPE, EVA, PP, etc. It is widely used in highways, tunnels, reservoirs, building waterproofing, and other projects.
Advantage:
Control System
Advanced intelligent digital control system which temperature and speed readed on LCD screen.
Pressure Adjustment System
Advanced"T"style jib design and pressure regulation structure.
Pressure Roller
Special stainless steel pressure rollers with strong pressure force.
Heating System
Advanced hot air heating system perfects the welding quality even if corrosive materials and bad working environment.
Package & Delivery:
The product is packed in standard cartons and waterproof box. we gurantee the product good when customer receives it. we cooperate with international famous logistic company, and we delivery the product in time according to customer's requirement.
