GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage

Basic Information
Place of Origin: Hefei,China
Brand Name: FUYUN
Certification: EN, ASTM, CE, GB, ISO, BV
Model Number: 50×5
Minimum Order Quantity: 2000 Square Meters
Price: USD 2.0-3.35 Square Meter
Packaging Details: packed in roll in woven bags with pipe core, pack size width 1-5m, length 20-50m
Delivery Time: 7 Days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Ability: 34000 Square Meters per Day
Detail Information
Application: Canals, Landfills, Basement, Stormwater Impoundments And Wetlands, Artificial Lake, Swimming Pool, Golf Course Ponds, Stormwater Management Ponds, Recreational Ponds, Landfills Cap Closures, Base Liners, Groundwater Protection Cover, Environmental Protecti Material: High Quality Natural Sodium Bentonite, HDPE Geotextile,
Function: Anti-seepage, Reinforce, Protect, Waterproof GCL (g/㎡): 5000
Product Name: GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage Package: Woven Bags, Waterproof Film
Color: Black, White Or Customize Charasteristics: Acid, Alkali And Corrosion Resistance
High Light:

GCL Bentonite Geosynthetic Clay Liners

,

Antiseepage Geosynthetic Clay Liners

,

waterproof Geosynthetic Clay Liners


Product Description

GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage protection Environment



Quick Detail:



component: bentonite, HDPE ​geomembrane, geotextile

size: 50*5m

function: antiseepage, reinforce, protect

application: basement, tunnel, artificial lake, swimming pool, golf course ponds, stormwater management ponds, recreational ponds, landfills cap closures, base liners, groundwater protection cover, environmental protection barrier under roads and railway, secondary containment above and ground tanks



Product Description:



GCL – Geosynthetic Clay Liner is a woven fabric like material sandwich with bentonite clay in the middle. When installed correctly it behaves like a geomembrane, resulting lower permeability slowing down any seepage out of the dam. Due to bentonite clay having a very low hydraulic conductivity it makes for an effective GCL.



A typical GCL roll construction would consist of two layers of geotextile stitched together enclosing a layer of processed sodium bentonite. Approximate thickness of GCL is 6mm.



GCL is predominately used in landfills as a backup to a geomembrane layer.



Engineering wise, GCL is containment as a hydraulic barrier to water, leachate or other liquids. GCL is used as a replacement for compacted clay liners in landfill cells and capping. For best practise liner security, a three component composite of compacted clay liner/ GCL and Geomembrane can be used.





Installing notes:



1, bentonite waterproof geosynthetic clay liners construction, foundation should be checked and inspected, the foundation should be rammed flat, no potholes and water, no gravels, no roots and other sharp objects.

2, bentonite waterproof geosynthetic clay liners in the process of handling and construction should be to avoid vibration and impact, to avoid the blanket body having a large degree of bending.

3. After the installing and acceptance of GCL, backfill shall be carried out as soon as possible. If it is in conjunction with the use of HDPE geomembrane, which shall be installed and welded in time to prevent it from being wet or broken by rain.





Technical Parameter:



No. Item Technical Index
GCL-NP GCL-OF GCL-AH
1 GCL (g/㎡) 4000 and not less than the specified value 4000 and not less than the specified value 4000 and not less than the specified value
2 Swelling Index of Bentonite (ml/2g) 24 24 24
3 Absorption of Blue ( g/100g) 30 30 30
4 Tensile Strength (N/100mm) 600 700 600
5 Elongation at Maximum Load % 10 10 8
6 Peel Strength(N/100mm) Non Woven and Woven Fabrics 40 40 /
PE Film and Non Woven Fabrics / 30 /
7 Permeability Coefficient (m/s) 5.0x10^-11 5.0x10^-12 1.0x10^-12
8 Hydrostatic Pressure Resistance 0.4MPa, 1h, no seepage 0.6MPa, 1h, no seepage 0.6MPa, 1h, no seepage
9 Filtration Loss (ml) 18 18 18
10 Durability of Bentonite 20 20 20






Application:

  • Canals, stormwater impoundments and wetlands
  • Secondary containment
  • Highway and civil
  • Landfill liners
  • Landfill caps
  • Mining
  • Ponds

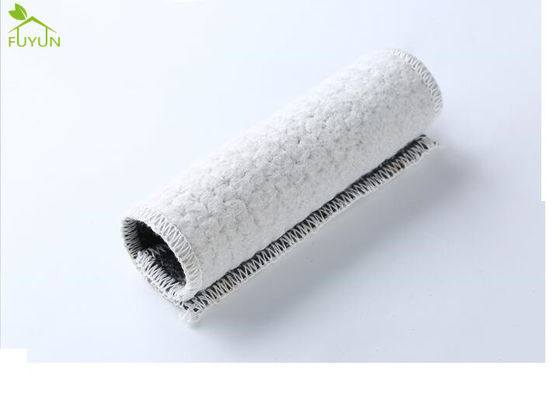

GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 0

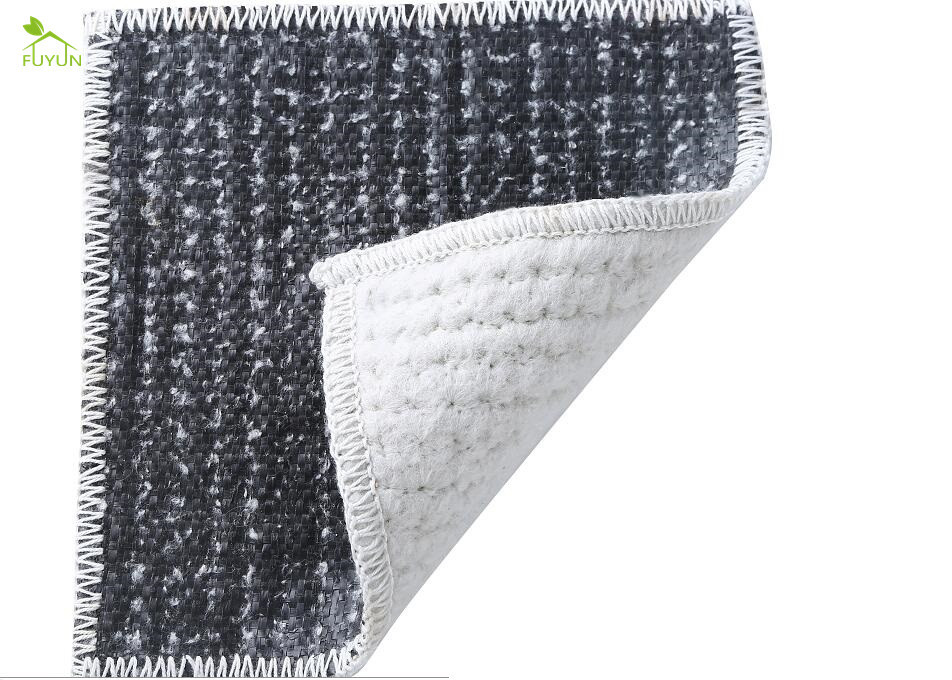

GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 1





Advantage:

  • An economic and environmentally sound alternative to synthetic liners or to bituminous products.
  • Dense and slim with high bond and shear strength.
  • Superior to conventional compacted/puddled clay lining
  • High puncture and tear resistance - the bentonite clay has a high swelling capacity and low permeability offering good system integrity.
  • Self-sealing.
  • Long-term protection against ground water seepage

Factory Advantage:



Production facilities are CodeMark and Branz accredited.
All products are fully guaranteed from manufacturing defects.
When working in confined spaces, granulated bentonite clay liners offer Occupational Health and Safety benefits compared to powdered bentonite liners.
The black woven layer facilitates visual checking of the stitching quality when the geosynthetic clay liner is being laid.
Available in grades from 3500g/m2 to 5500g/m2 with or without a bonded PE membrane.
Rolled on strong corrugated HDPE cores.
Available in roll widths from 1.65m to 5.8m.
Production capacity of 7.5 million m2/year.
Direct shipping to major Australian ports, thus saving transport costs.



​​Package:



products are well be packed as customers' requirement, packed in roller with woven bags and good belt, and we gurantee product be good when customer receive.



GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 2





Delivery:



all products will be delivered in time according to customer's requirement. 20GP Container can load around 17.5 tons, 40HQ 24.5 tons. It can be shipped in 7 days.



GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 3





Supply Ability:



25.5 tons per day.





Factory Show:



GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 4

GCL Bentonite Geosynthetic Clay Liners For Covering Landfills Antiseepage 5
