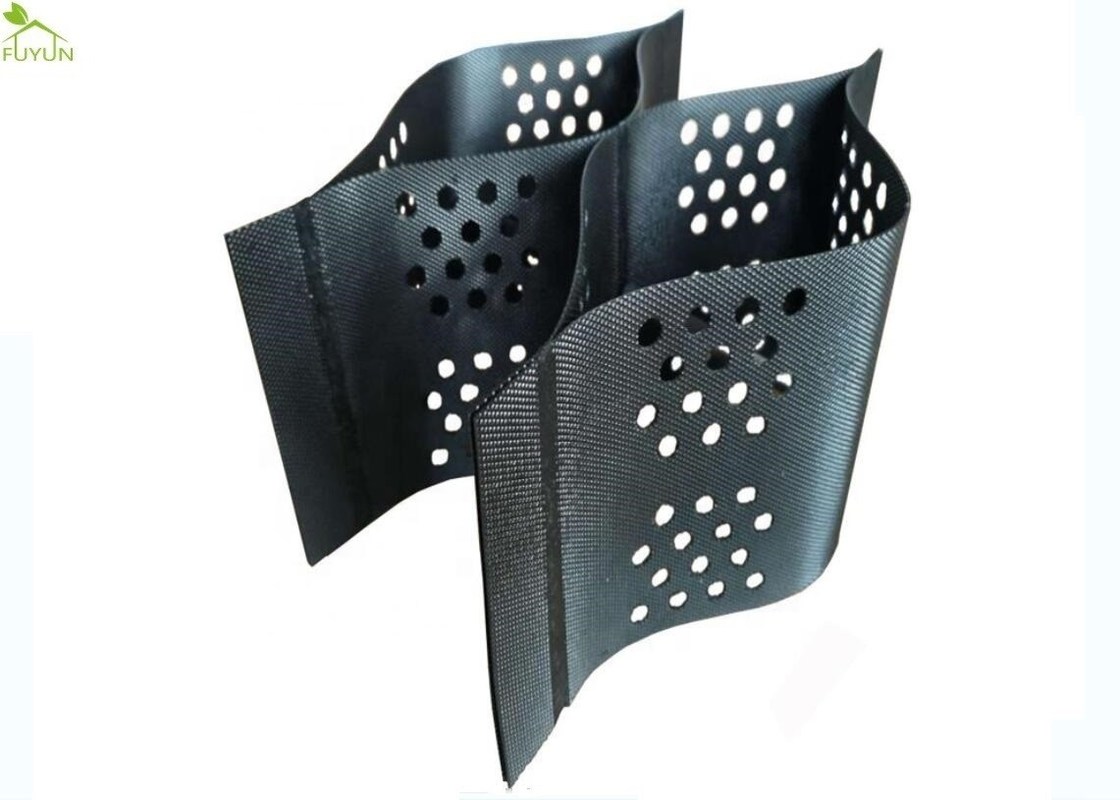

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height

Basic Information
Place of Origin: Hefei, China
Brand Name: FUYUN
Certification: ASTM, ISO, GB, GM13
Model Number: GS-100-600
Minimum Order Quantity: 2000 Square Meters
Price: USD 4.5-6.05 Square Meter
Packaging Details: packed in belts, wood pallet, waterproof film
Delivery Time: 7 Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
Supply Ability: 20000 Square Meters per Day
Detail Information
Material: LLDPE, PET, LDPE, PP, High-density Polyethylene (HDPE) Product Name: Soil Stablizer Earth Wall Retention Cellular Confinement System HDPE Geocells 100mm Height 600mm Width
Application: Driveway, Subway, Retaining Wall, Channel Protection, Horse Paddock, Pavement, Dam, Slope, Road Construction Function: Retention, Stabilize, Increase Bearing Capacity, Drainage, Slope Protection, Soil Reinforcement, Gravel Stabilizer
Height: 150mm Package: Wood Pallet, Waterproof Films
Color: Black Charasteristics: High Bearing Capacity, Acid, Alkali And Corrosion Resistance, High Strength
High Light:

Soil Stabilizer HDPE Geocells

,

Cellular Confinement System HDPE Geocell

,

150mm Height HDPE Geocells


Product Description

Soil Stablizer Earth Wall Retention Cellular Confinement System HDPE Geocells 150mm Height 600mm Width

Soil Stablizer Earth Wall Retention Cellular Confinement System HDPE Geocells 100mm Height 600mm Width

  • Made of Black, UV Stabilized HDPE
  • 1.5+/-0.1mm rhomboidal indentation texture to keep fill in place.
  • Perforated cell walls for water drainage
  • High tensile strength
  • Saves money by greatly reducing the amount of fill needed to form a strong base.
  • The shallow 2in paver is great for light traffic areas
  • Great for driveways, roads, trails, parking lots, also great for erosion control and holding mulch in place on banks.
  • 10 Year Warranty

Quick Detail:



material: PET, PP, plastic, High-density polyethylene (HDPE), LDPE

height: 150mm

function: drainage, soil reinforcement, gravel stabilizer, slope protection, increase bearing capacity

application: rataining wall, horse paddock, pavement, dam, slope, subway, channel





Product Description:



FUYUN geocell is made of a new type of high strength geosynthetics, which is popular with both domestic and abroad, in accordance with GB/T 19274-2003/ASTM implemenation of the standards, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Easily folding and convenient for transportation. When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid.As it filled in soil, macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.



  • It is flexible in expansion and contraction and can be folded during transportation. It can be stretched into a net during construction and filled with loose materials such as soil, gravel, concrete, etc., to form a structure with strong lateral restriction and large rigidity.
  • Light material, abrasion resistance, stable chemical performance, photooxidation resistance, acid and alkali resistance, suitable for different soils and deserts, and other soil conditions.
  • High lateral restriction and anti-slip, anti-deformation, effectively enhance the bearing capacity of the roadbed and disperse the load.
  • Changing the geometric dimensions of geocell height, welding distance, etc. can meet different engineering needs.
  • Flexible expansion and contraction, small transportation volume; convenient connection, and fast construction speed.



Technical Parameters:



item GS-50-400 GS-75-400 GS-100-400 GS-150-400 GS-200-400
height(mm) 50 75 100 150 200
thickness of the sheet (mm) ≧1.1 ≧1.1 ≧1.1 ≧1.1 ≧1.1
weld distance (mm) 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000 330≦A<1000
tensile strength of weld points (N/cm) ≧100 ≧100 ≧100 ≧100 ≧100
tensile strength of connection of cells (N/cm) ≧120 ≧120 ≧120 ≧120 ≧120
tensile strength at yield of each sheet(N/cm) ≧20 ≧20 ≧20 ≧20 ≧20





Application:



1. stable the bed of railway and road

2. bear the bed of road

3. bear the loading dykes and walls

4. administer shallow water and river

5. support pipeline and sewer

6. prevent landslide and to be used as compound walls to support loading

7. be used in dependent walls,wharfs and bank and so on

8. govern sand,beach,river bank and riverbed

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 0Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 1

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 2



Advantage:



  • Provides cost effective, long-term slope and channel protection and stabilization.
  • Ease in transportation and on-site handling due to collapsible cells.
  • Rapid and simple installation conforms to most terrain profiles.
  • Ultrasonic welding of cell joints ensures maximum strength.
  • Easily dismantled and subsequently re-used.
  • Withstands high weight bearing loads.
  • Resistant to biological attack and a wide range of soil borne chemicals.



Package:



all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 3

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 4



Delivery:

all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.



Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 5





Factory Show:



Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 6

Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 7





Why Choose US?



Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 8



FAQ:



Cellular Confinement System HDPE Geocell Soil Stablizer 150mm Height 9
