| Place of Origin: | Hefei, China |
|---|---|
| Brand Name: | FUYUN |
| Certification: | ASTM, ISO, CE, GB, GM13 |
| Model Number: | GS-200-400 |
| Minimum Order Quantity: | 2000 Square Meters |
| Price: | USD 1.5-2.05 Square Meter |
| Packaging Details: | packed in belts, wood pallet, waterproof film |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal |
| Supply Ability: | 20000 Square Meters per Day |
| Material: | Plastic, PET, LDPE, PP, High-density Polyethylene (HDPE) | Product Name: | Retaining Walls Reinforcing Anti Corrosion Increasing Bearing Capacity Of Subgrade 200mm Height Geocells |
|---|---|---|---|
| Application: | Retaining Wall, Subway, Channel, Horse Paddock, Pavement, Dam, Slope | Function: | Increase Bearing Capacity, Drainage, Slope Protection, Soil Reinforcement, Gravel Stabilizer |
| Height: | 200mm | Package: | Wood Pallet, Waterproof Films |
| Color: | Black | Charasteristics: | High Bearing Capacity, Acid, Alkali And Corrosion Resistance, High Strength |
| High Light: | Retaining Wall HDPE Geocell,Minimizing Runoff HDPE Geocell,HDPE Geocell 200mm Height |
||

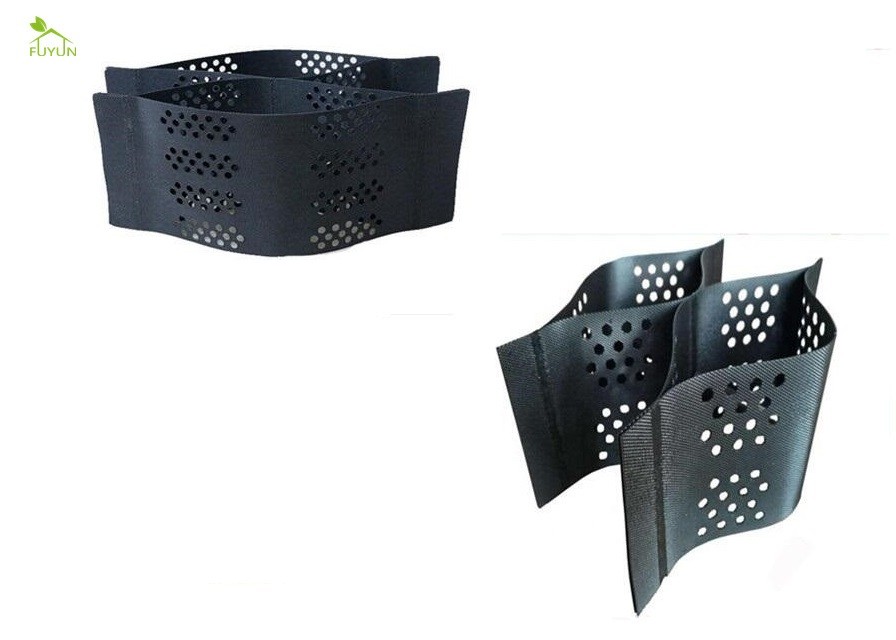

Retaining Walls Rainwater to Infiltrate Minimizing Runoff Increasing Bearing Capacity of Subgrade 200mm Height Geocells
Quick Detail:
material: PET, PP, plastic, High-density polyethylene (HDPE), LDPE
height: 200mm
function: drainage, soil reinforcement, gravel stabilizer, slope protection, increase bearing capacity
application: rataining wall, horse paddock, pavement, dam, slope, subway, channel
Product Description:
Geocell is a kind of new geosynthetics born around 1975. Known as Cellular Confinement Systems, geocell is the ideal solution to soil reinforcement, erosion control, channel protection, and retaining walls. It is a kind of three-dimensional structure geosynthetics that is made of 100% HDPE virgin material. Due to its unique three-dimensional structure and sheet surface, Geomax® geocell has the best reinforcement and drainage effect among geosynthetics.
Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flexible to fold during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity.
Our high quality geocells are of different sizes, readilby available for delivery. The three dimensional HDPE geocell of different cell sizes and heights uses ultrasonic welding technology for consistent quality to efficiently perform its functions of resistance to erosive forces even on steep slope through its unique flexibility, lightweight, permeability, and high strength. Geocells can also be used for soil stabilization and reinforcement purposes in roads, retaining walls, erosion control, landfills, reservoirs and river training.
Geocell offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
Technical Parameters:
| item | GS-50-400 | GS-75-400 | GS-100-400 | GS-150-400 | GS-200-400 |
| height(mm) | 50 | 75 | 100 | 150 | 200 |
| thickness of the sheet (mm) | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 | ≧1.1 |
| weld distance (mm) | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 | 330≦A<1000 |
| tensile strength of weld points (N/cm) | ≧100 | ≧100 | ≧100 | ≧100 | ≧100 |
| tensile strength of connection of cells (N/cm) | ≧120 | ≧120 | ≧120 | ≧120 | ≧120 |
| tensile strength at yield of each sheet(N/cm) | ≧20 | ≧20 | ≧20 | ≧20 | ≧20 |
Application:
1. stable the bed of railway and road
2. bear the bed of road
3. bear the loading dykes and walls
4. administer shallow water and river
5. support pipeline and sewer
6. prevent landslide and to be used as compound walls to support loading
7. be used in dependent walls,wharfs and bank and so on
8. govern sand,beach,river bank and riverbed
Advantage:
Package:
all products are packed by belts on the wood pallet. we make sure that customers receive the products well. we also support customer's special package requirement.
Delivery:
all products will be delivered immidiately when finished. we choose international famous logistic company and shipping company to gurantee the safety of product and fast delivery.
